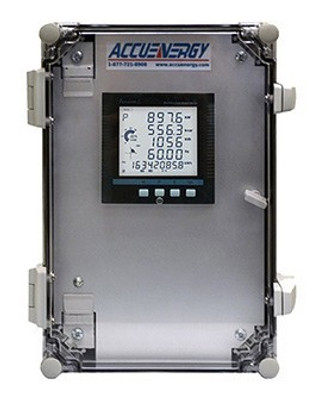

Plug n' Play Power Metering Solutions
Pre-installed, pre-wired and pre-configured power meter provides a perfect solution for retrofit projects where metering space is not pre-designed in an electrical distribution panel.
AcuPanel 9104X Key Features
Acuvim II Multifunction Power Meter
High performance multifunction power meter is the ideal choice for the monitoring and controlling of power distribution systems.
Acuvim II Key Features
Benefits
Voltage Range | 10V to 1000kV |
Current Range | 5mA to 50000A |
Power Range | -9999MW to 9999MW |
Reactive Power Range | -9999Mvar to 9999Mvar |
Apparent Power Range | 0 to 9999MVA |
Power Demand Range | -9999MW to 9999MW |
Reactive Power Demand Range | -9999Mvar to 9999Mvar |
Apparent Power Demand Range | 0 to 9999MVA |
Power Factor Range | -1.000 to 1.000 |
Frequency Range | 45.00 to 65.00Hz (50 or 60Hz type); 300.00Hz to 500.00Hz (400Hz type) |
Energy Range | 0 to 99999999.9kWh |
Reactive Energy Range | 0 to 99999999.9kvarh |
Apparent Energy Range | 0 to 99999999.9kVAh |
Phase Angle Range | 0.0° to 359.9° |
Unbalance Factor Range | 0.0% to 100.0% |
Current Input | 5A or 1A nominal |
Communication | Modbus-RTU protocol |
NEMA Rating | NEMA 4X |
Power Supply | 100 to 415 VAC; 100 to 300 VDC |
Dimensions | 7.88 x 11.81 x 7.34" (200 x 300 x 186.5 mm) |
Weight | 8 lb |
