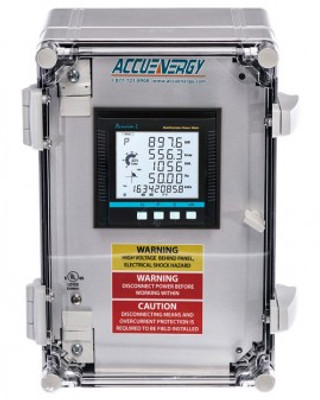

Plug n' Play Power Metering Solutions
Pre-installed, pre-wired and pre-configured power meter provides a perfect solution for retrofit projects where metering space is not pre-designed in an electrical distribution panel.
AcuPanel 9104X Key Features
Acuvim IIR Multifunction Power Meter
High performance multifunction power meter with AXM-WEB-PUSH expansion module is the ideal choice for the monitoring and controlling of power distribution systems.
Acuvim IIR Key Features
Benefits
| Voltage Range | 10V to 1000kV |
| Current Range | 5mA to 50000A |
| Power Range | -9999MW to 9999MW |
| Reactive Power Range | -9999Mvar to 9999Mvar |
| Apparent Power Range | 0 to 9999MVA |
| Power Demand Range | -9999MW to 9999MW |
| Reactive Power Demand Range | -9999Mvar to 9999Mvar |
| Apparent Power Demand Range | 0 to 9999MVA |
| Power Factor Range | -1.000 to 1.000 |
| Frequency Range | 45.00 to 65.00Hz (50 or 60Hz type); 300.00Hz to 500.00Hz (400Hz type) |
| Energy Range | 0 to 99999999.9kWh |
| Reactive Energy Range | 0 to 99999999.9kvarh |
| Apparent Energy Range | 0 to 99999999.9kVAh |
| Phase Angle Range | 0.0° to 359.9° |
| Unbalance Factor Range | 0.0% to 100.0% |
| Current Input | 5A or 1A nominal |
| Onboard Memory | 4GB |
| Communication | DNP 3.0 Over IP, Modbus-TCP/IP, HTTP/HTTPs Webserver, HTTP/HTTPs Push, FTP Post, SMTP Email, SNMP V3, sFTP Server |
| NEMA Rating | NEMA 4X |
| Power Supply | 480 VAC |
| Dimensions | 7.88 x 11.81 x 7.34" (200 x 300 x 186.5 mm) |
| Weight | 8 lb |
