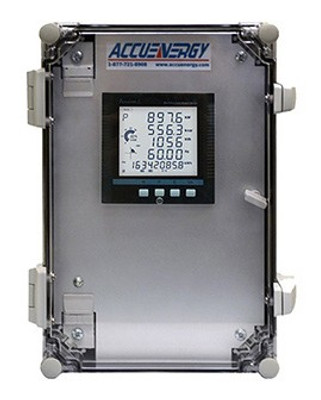

Accuenergy 9104X-IIR-RCT-P1 Pre-Wired Panel Enclosure with Data Logging, Rogowski Coil CT input, 415 Vac/300 Vdc

No reviews yet Write a Review
$1,290.11
SKU:
AcuPanel 9104X-IIR-RCT-P1
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Accuenergy 9104X-IIR-RCT-P1 Pre-Wired Panel Enclosure with Data Logging, Rogowski Coil CT input, 415 Vac/300 Vdc

$1,290.11

Plug n' Play Power Metering Solutions

Pre-installed, pre-wired and pre-configured power meter provides a perfect solution for retrofit projects where metering space is not pre-designed in an electrical distribution panel.

AcuPanel 9104X Key Features

  • Factory pre-wired for fast, reliable install
  • Factory pre-configuration eliminates meter programming on-site
  • Required accessory components all pre-installed
  • Self-powered panel does not require separate power supply
  • Waterproof plastic NEMA 4X (outdoor) enclosure
  • Two pluggable pre-cut holes allow for wires to be fed through the panel without any additional modifications being needed
  • Compatible with a variety of flexible Rogowski coil current transformers (CTs are required for the proper operation of this unit). Refer to our CT configurator.

Acuvim IIR Multifunction Power Meter

High performance multifunction power meter is the ideal choice for the monitoring and controlling of power distribution systems.

Acuvim IIR Key Features

  • Real time metering of 400 power and energy parameters, including
  • Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg
  • Current I1, I2, I3, In, Iavg
  • Power P1, P2, P3, Psum
  • Reactive Power Q1, Q2, Q3, Qsum
  • Apparent Power S1, S2, S3, Ssum
  • Frequency F
  • Power Factor PF1, PF2, PF3, PF
  • Energy Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp_Epb_exp, Epc_imp, Epc_exp
  • Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp
  • Apparent Energy Es, Esa, Esb, Esc
  • Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3
  • Load Features
  • Four Quadrant Powers
  • Revenue grade ANSI C12.20 class 0.2 & IEC 62053-22 class 0.2s
  • Built-in MODBUS RTU protocol via RS485 port
  • Onboard memory size of 8MB

Benefits

  • Saves cost on installation and parts
  • Save premium time
  • Avoids frustrating wiring mistakes
  • Clear easy-to-read labels
  • Plug n' play usability

Accuenergy AcuPanel 9104X-IIR-RCT-P1 Specifications

Voltage Range 10V to 1000kV
Current Range 5mA to 50000A
Power Range -9999MW to 9999MW
Reactive Power Range -9999Mvar to 9999Mvar
Apparent Power Range 0 to 9999MVA
Power Demand Range -9999MW to 9999MW
Reactive Power Demand Range -9999Mvar to 9999Mvar
Apparent Power Demand Range 0 to 9999MVA
Power Factor Range -1.000 to 1.000
Frequency Range 45.00 to 65.00Hz (50 or 60Hz type); 300.00Hz to 500.00Hz (400Hz type)
Energy Range 0 to 99999999.9kWh
Reactive Energy Range 0 to 99999999.9kvarh
Apparent Energy Range 0 to 99999999.9kVAh
Phase Angle Range 0.0° to 359.9°
Unbalance Factor Range 0.0% to 100.0%
Current Input Rogowski coil current transformer
Onboard Memory 8MB
Communication Modbus-RTU protocol
NEMA Rating NEMA 4X
Power Supply 100 to 415 VAC; 100 to 300 VDC
Dimensions 7.88 x 11.81 x 7.34" (200 x 300 x 186.5 mm)
Weight 8 lb
Accuenergy AcuPanel 9104X-IIR-RCT-P1
