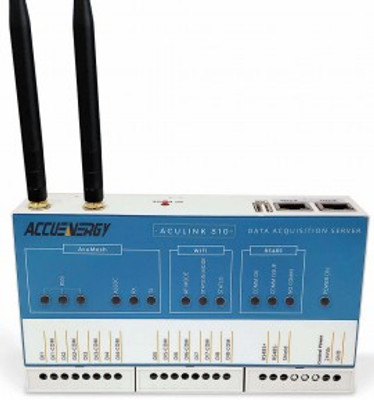

Accuenergy AcuLink 810-900 Data Acquisition Server with built-in 900 MHz AcuMesh

No reviews yet Write a Review
$1,290.11
SKU:
AcuLink 810-900
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Accuenergy AcuLink 810-900 Data Acquisition Server with built-in 900 MHz AcuMesh

$1,290.11

Accuenergy AcuLink 810-900

This data acquisition server provides a simple solution to manage, collect, and store information from all connected metering points from a single web interface. Additionally, the data is locally stored until it is ready to be distributed to remote servers or controllers via an IP-based network.

Features

  • BACnet-MSTP data acquisition
  • AcuMesh support on AcuLink 810 (Wirelessly query meters with RS485)
  • BACnet gateway (convert Modbus-RTU and BACnet-MSTP to BACnet-IP)
  • Remote device access
  • Maintain high availability by RSTP protocol (two ports connect to same subnet)Ethernet gateway for Modbus RS485 and digital output devices
  • Access energy information remotely via web server, or push to IP-based master devices or software
  • Data acquisition and logging with 8 GB on-board memory
  • Embedded web-server for real-time data and easy configurations
  • Controller/master system can poll data from all RTU devices via Modbus-TCP/IP Protocol
  • Dual ethernet RJ45 port and WiFi communication channels
  • Enhanced cybersecurity for critical infrastructure deployment
  • Compact DIN rail mount design
  • Track energy usage and peak demand
  • Quick and simple software-free setup

Applications

  • Building automation systems
  • Energy management systems
  • SCADA systems
  • Measurement and verification
  • Remote access energy information
  • Energy audits
  • Facility monitoring
  • Campus monitoring
  • Sub metering
  • Performance contracts and benchmarking
  • Demand response
  • LEED / energy star certification
  • Cost allocation

Accuenergy AcuLink 810-900 Specifications

Hardware
Memory 8 GB Onboard
Interval Logging 1 to 1440 minutes, user selectable
LEDs Power, WiFi, AcuMesh, RS485, Ethernet
Power
Power Supply 24 VDC, 500 mA
Isolation RJ45 Ethernet 1500 V rms
RS485 2500 V rms
Digital Input 5000 V rms
Communication
Protocols Modbus-RTU, Modbus-TCP/IP, HTTP, HTTPs, FTP, sFTP, SMTP, NTP
LAN 2 x RJ45 10/100 Ethernet, full half duplex, auto polarity
USB USB expansion port
USB 2.0 host
Inputs
Serial Port RS-485 Modbus, supports up to 32 external devices (expandable)
LAN RJ45 10/100 Ethernet
Digital Input 8 pulse counters
Input Voltage Range 8 to 28 Vdc
Input Current 8 mA (max)
Start/Stop Voltage 15V/5V
Pulse Frequency 100Hz, 50% Duty Ratio (5ms ON and 5ms OFF)
Physical
Dimensions 6.3 x 3.5 x 1.23" (159.9 x 90 x 32.2mm)
