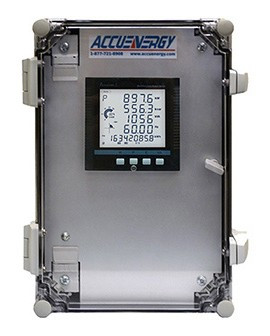

This power and energy panel comes pre-wired and configured with the Acuvim II multifunction power and energy meter, combined with the Rogowski coil current transformer for precise measurements. The meter includes an internal 480 V power supply, eliminating the need for an external power source. The Rogowski coil current transformer is designed for applications where traditional solid or split-core transformers cannot fit, making it ideal for power quality monitoring, including harmonics.
In addition, this power panel is a convenient meter enclosure that delivers streamlined meter deployment in OEM or retrofit projects. It is ideal for when the installation inside an electrical distribution panel is unavailable, in harsh environments to safeguard instrumentation against the elements, or to limit the time and complexity of installation. Each AcuPanel undergoes rigorous quality testing to ensure years of dependable service. Available in several standard configurations, the factory pre-wiring greatly reduces installation time and frustrating wiring errors that can cause inaccurate data. Every AcuPanel is quality tested to ensure years of dependable use.
Features
Custom OEM solutions
Partner with Accuenergy to design a custom, OEM panel to suit any metering application.
Applications
| Acupanel | |
| Current Transformer | 3 x Rogowski-coil current transformerCurrent input range: 5 to 1200 AFrequency range: 20 Hz to 5 kHzOutput signals: At 50 Hz: 100 mV At 60 Hz: 120 mVAccuracy: 0.5% at any pointLength of coil: 400 mm (15.75") |
| Anti-Corrosive | Yes |
| Dust Proof | Yes |
| Suitable for Indoor Use and Outdoor Use | Yes |
| Pre-Wired | Yes |
| Pre-Configured | Yes |
| Meter Model | Acuvim II with data-logging |
| Pre-Wired Panel | Nema 4x indoor/outdoor waterproof polycarbonate panel |
| Current Input | 333 mV Input and Rogowski Coil (input field selectable) |
| Communication Module | WEB2: Modbus-TCP/IP, BACnet-IP, SNMP V3, DNP 3.0 V2, IEC 61850 2nd Edition, SMTP, NTP, HTTP post, HTTPs post, FTP post, sFTP server, HTTPs webserver, dual RJ45, WiFi |
| Power Supply | P3V3: 480 V AC |
| Acuvim II | |
| Real Time Metering | Phase Voltage: V1, V2, V3, Vlnavg Line Voltage V12, V23, V31, Vllavg Current I1, I2, I3, In, Iavg Power P1, P2, P3, Psum Reactive Power Q1, Q2, Q3, Qsum Apparent Power S1, S2, S3, Ssum Power Factor PF1, PF2, PF3, PF Frequency F Load Features Four Quadrant Powers |
| Energy and Demand | Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp, Epb_exp, Epc_imp, Epc_exp Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp Apparent Energy Es, Esa, Esb, Esc Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3 |
| Waveform Capture | Voltage and current waveform: Trigger, manual, di change, sag/dips, swell, over current |
| Power Quality | Voltage Unbalance: Factor U_unbl Current Unbalance Factor I_unbl Voltage THD THD_V1, THD_V2, THD_V3, THD_Vavg Current THD THD_I1, THD_I2, THD_I, THD_Iavg Individual Harmonics Harmonics 2nd to 63rd (50H or 60Hz) Harmonics 2nd to 15th (400Hz) Voltage Crest Factor Crest Factor TIF THFF Current K factor K Factor |
| Statistics | Max with time stamp miniminum with time stamp: Each phase of V & l; Total of P, Q, S, PF & F; Demand of I1, I2, I3, P, Q&S; Each phase THD of V & I; Unbalance factor of V & I |
| Alarm | Over/under limit alarm: V, I, P, Q, S, PF, V_THD and I_THD each phase and total or average; unbalance factor of v & i; load type; analog input of each channel; demand of i1, i2, i3, p, q&s; reverse phase sequence; di1~di28 |
| Power Quality Event Logging | Sag/dips, swell: Voltage |
| Data Logging | Data Logging 1/Data Logging 2/Data Logging 3: F, V1/2/3/lnavg, V12/23/13/lavg, I1/2/3/n/avg, P1/2/3/sum, Q1/2/3/sum, S1/2/3/sum, PF1/2/3, PF, U_unbl, I_unbl, Load Type, Ep_imp, Ep_exp, Ep_total, Ep_net, Eq_imp, Eq_exp, Eq_total, Eq_net, Es, Epa_imp, Epa_exp, Epb_imp,Epb_ exp, Epc_imp, Epc_exp, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp, Esa, Esb, Esc, THD_V1/2/3/avg, THD_I1/2/3/avg, Harmonics 2nd to 63rd, Crest Factor, THFF, K Factor, Sequence and Phase Angles, DI Counter, AI, AO, Dmd P/Q/S, Dmd I1/2/3 |
| Onboard Memory Size | Memory: Bytes 8 MB |
| Communication | Rs485 port, half duplex, optical isolated: Modbus®-rtu protocol/dnp3.0 option |
| Time | Real time clock: Year, month, date, hour, minute, second |
