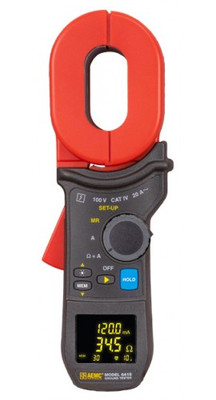

Quickly and easily clamp this ground resistance tester around the grounding electrode or conductor and measure the resistance to the ground. By performing measurements on intact ground systems, verify the quality of the grounding connections and bonds. Additionally, measure the resistance and continuity of grounding loops around pads and buildings.
Features
Applications
| Ground Resistance Measurement | |
| Measurement Range | 0.01 to 0.099 Ω0.1 to 0.99 Ω1 to 49.9 Ω50 to 149 Ω150 to 245 Ω250 to 440 Ω450 to 640 Ω650 to 1200 Ω |
| Resolution | 0.001 Ω0.01 Ω0.1 Ω1 Ω5 Ω10 Ω10 Ω50 Ω |
| Accuracy | ±(1.5% reading + 0.01 Ω)±(1.5% reading + 0.02 Ω)±(1.5% reading + 0.1 Ω)±(2.5% reading + 2 Ω)±(5% reading + 10 Ω)±(10% reading + 20 Ω)±(15% reading + 20 Ω)±(20% reading + 100 Ω) |
| Test Frequency | 2083 Hz |
| Maximum Overload | Permanent current: 100 maximum, 50/60 Hz; 20 A at 800 Hz |
| Current Measurement Range (auto-ranging) | |
| Measurement Range | 0.5 to 9.995 mA10 to 99.9 mA100 to 299 mA0.3 to 2.99 A3 to 20 A |
| Resolution | 50 µA100 µA1 mA10 mA100 mA |
| Accuracy | ±(2% reading + 200 µA)±(2% reading + 100 µA)±(2% reading + 1 mA)±(2% reading + 10 mA)±(2% reading + 100 mA) |
| General Specifications | |
| Display | OLED, 152 segments, 1.89 x 1.55" (48 x 39 mm) |
| Memory | 300 measurements |
| Alarm | Two separate alarms (Ω and A) |
| Battery | Type: 4 x 1.5 V LR6 (AA) alkaline batteries or 4 x NiMH batteriesLife: 12 hours or 1440 30-second tests approximately |
| Environmental | Operating temperature: -4 to 131°F (-20 to 55°C)Storage temperature: -22 to 158°F (-30 to 70°C)Relative humidity: Up to 90% at 40°CIngress protection: IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 100 V CAT IV |
| Dimensions | Jaw opening: 1.26" (32 mm) maximum, 1.18 x 1.57" (30 x 40 mm), or 0.79 x 2.17" (20 x 55 mm) barOverall: 11.8 x 4.2 x 2.2" (300 x 106 x 56 mm) |
| Weight | 2.6 lbs (1.2 kg) with battery |
