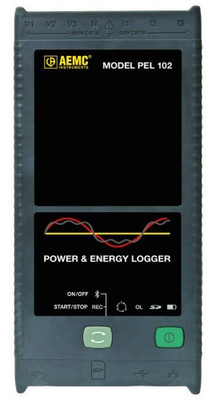

AEMC PEL 102 Power/Energy Data Logger Kit

No reviews yet Write a Review
$2,200.77
SKU:
PEL 102
Condition:
New
Availability:
In Stock
5 customers are viewing this product

AEMC PEL 102 Power/Energy Data Logger Kit

$2,200.77

AEMC PEL 102

The design of the Logger allows it to be installed inside a load centre panel (including the current sensors) enabling the door to close on most panels. The PEL 102 all the essential functions for logging power/energy data from most current electrical power networks 17 network set-ups provided. Measure and record three voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator's choice. All variables are recorded and stored at a one second interval as well as user selectable demand intervals from 1 to 60 minutes.

Energy costs can be quickly and easily calculated and displayed by simply entering the unit cost for a kilowatt hour into the software. Data is stored on a removable SD card. Data can be retrieved using a Bluetooth, USB and/or Ethernet (local or internet) connection by transporting the SD card back to a PC. The comprehensive DataView® software (included) provides the ability to view data from several hundred PEL 100 series instruments on a local network or over the internet allowing the user to evaluate energy usage in a department or facility basis, a remote site, or even in a city, anywhere in the world. DataView® allows measurements to be seen in real-time on a PC and stored data to be downloaded for analysis and report generation.

Features

  • Simple to use, single-, dual- (split-phase) and three-phase (Y, ?) power & energy loggers
  • Provides all the necessary functions for Power and Energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems
  • Current measurements from 200mA up to 10,000A using flexible current sensors
  • Automatic recognition of the connected current sensors/probes
  • Power measurements: VA, W and var
  • Energy measurements VAh, Wh (source/load indication) and varh (including quadrant indication)
  • Record cost of energy usage
  • Power Factor (PF), Cos (?), Tan (?) and DPF
  • Total Harmonic Distortion (THD) for voltages and currents
  • Harmonics up to the 50th order for 50/60Hz voltages and currents and 7th order for 400Hz
  • Simultaneous RMS measurements of each phase @ 128 samples/cycle and DC
  • Bright blue, four line LCD on Model PEL 103 (3 phases shown simultaneously)
  • Storage of measured and calculated values on a SD-Card or SDHC-Card
  • Configuration of current and voltage ratios to external PT and CT ratios
  • USB, LAN, and Bluetooth communication
  • Includes DataView® software for data storage, real-time display, analysis and report generation with supplied pre-defined or custom templates

Applications

  • Measure efficiency, find areas for potential savings
  • Track Sub-billing occupants for energy costs
  • Assign energy costs to departments or operations within a department
  • Track peak demand periods and find opportunities for surcharge reductions
  • Determine present capacity and circumvent unnecessary electrical expansion costs
  • Verify the reliability and operation of electrical machinery
  • Improve response time to solve power related problems
  • Track energy availability and reliability of supply
  • Reduce field service time at sub-stations
