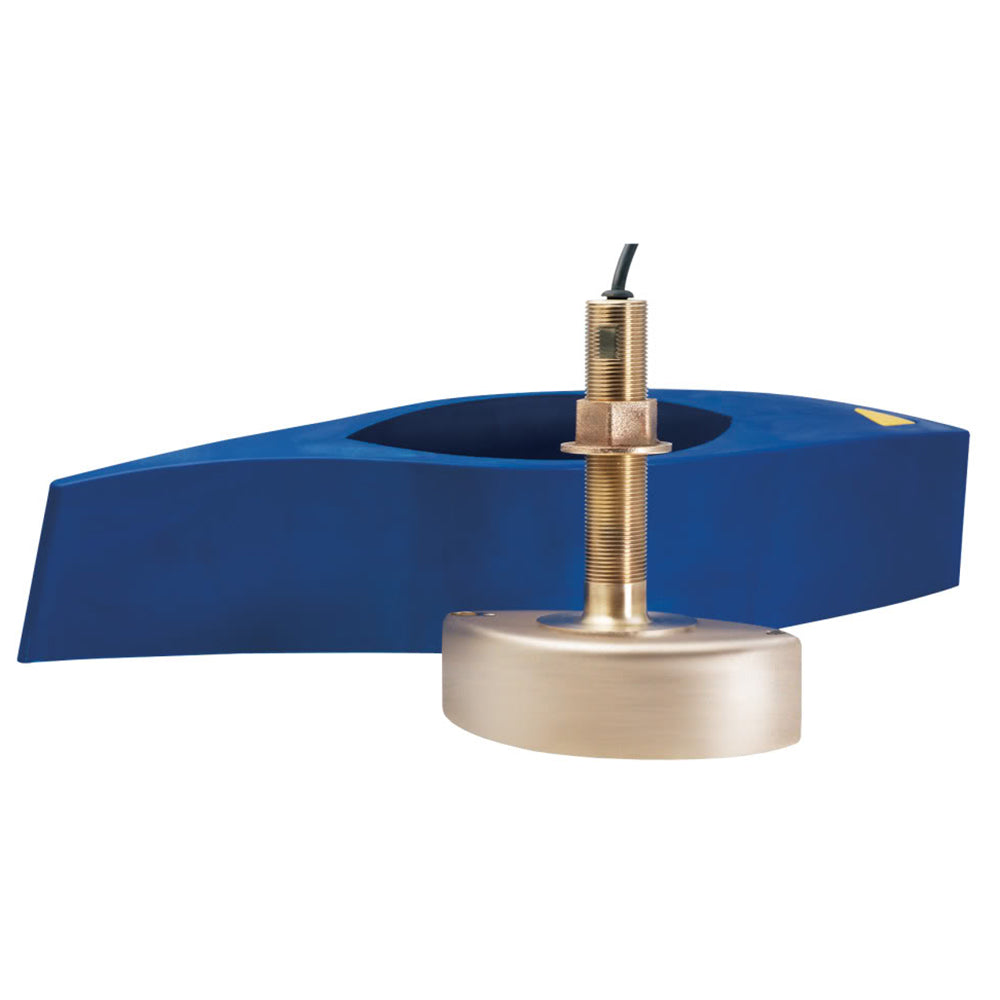

Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable

No reviews yet Write a Review
$3,057.62
SKU:
B285C-HW-MM
UPC:
B285C-HW-MM
Condition:
New
5 customers are viewing this product

Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable

$3,057.62

Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable Product Description

1 kW

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).



B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

  • Depth & temperature
  • 150-250 kHz High frequency
  • Bronze housing
  • 1 kW
  • Wide 25° beam
  • Exclusive Xducer ID® technology
  • Boat Size: Up to 9M (30')

Specifications:

  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane


Airmar B285C height and width 1Kw CHIRP bronze straight-through hull Model: B285C-HW-MM depth and temperature bronze shell exclusive Xducer ID technology use...

Airmar Garmin 12-Pin Mix & Match Cable f/Chirp Transducers
Airmar No Connector Mix & Match CHIRP Cable - 1M
Airmar Garmin 8-Pin Mix & Match Chirp Cable - 1M
Airmar Navico 7-Pin Blue Mix & Match Chirp Cable - 1M
Airmar Navico 9-Pin Mix & Match Chirp Cable - 1M
Airmar Humminbird 14-Pin Mix & Match Chirp Cable - 1M
Airmar Humminbird 9-Pin Mix & Match Chirp Cable - 1M
Airmar Furuno 10-Pin Mix & Match Cable f/High or Medium Frequency CHIRP Transducers
Sika Sikaflex® 291 Fast Cure - White - 3oz Tube
Sika Sikaflex® 291 Fast Cure - Black - 3oz Tube


Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable

Airmar?
How to describe Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable package dimensions and weight?
What is the sensor connector of the product?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?
What is the display connector of the product?
What is the length of cable?
What is the common use place of the product?
What is the connector type of the product?
Is this product supporting CHIRP and what's the type?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high-wide beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?

Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?

1 kW

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Which mix and match cable useful for this product?

12-Pin Chirp

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

High Wide

What's the Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable package dimensions and weight?

19 (w) X 7 (h) X 26 (l) inches and the weight is: 19.3 lb.

What is the sensor connector of the product?

MMC

Is this product single or dual frequency?

CHIRP-Ready Single-Band

How to mount or what is the mounting style of Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?

Thru-Hull with Fairing

What is the display connector of the product?

Cable Required

What is the length of cable?

9 m (30')

What is the common use place of the product?

Fishing, Commercial Fishing

What is the connector type of the product?

Airmar 12-Pin (MMC)

Is this product supporting CHIRP and what's the type?

High Wide

What is the housing material of the product?

Bronze

What is the max depth of the product?

150 m (500')

What is the deadrise range of product?

Up to 28° with fairing

What is the hole size of the product?

30 mm (1-3/16")

What is the high-wide beamwidth of the product?

25°

What is the high frequency level of the product?

150-250 kHz

This product has tilted element?

No

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

121 mm (4.75")

What is the max deadrise of the product?

Up to 26° with fairing

What is the max deadrise angle of the product?

26°

What is the manufacturer notes about Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable?

1 kW

Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).



Buy with the best price Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable for only $1564 from NVN Marine! Same day free shipping before 3pm.

Airmar B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer - Requires Mix and Match Cable Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Airmar

Weight:

19.3 lb

Mounting Style:

Thru-Hull

Chirp:

High Wide

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF
