1 kW
The M135M's medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also delivers excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 457 m (1500') and gives ultra-clear target resolution.
Airmar's M135M includes a plastic mounting base which is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam is shooting straight down for maximum echo returns. The eco-friendly coolant is the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 11 m (36') with a solid-fiberglass hull.

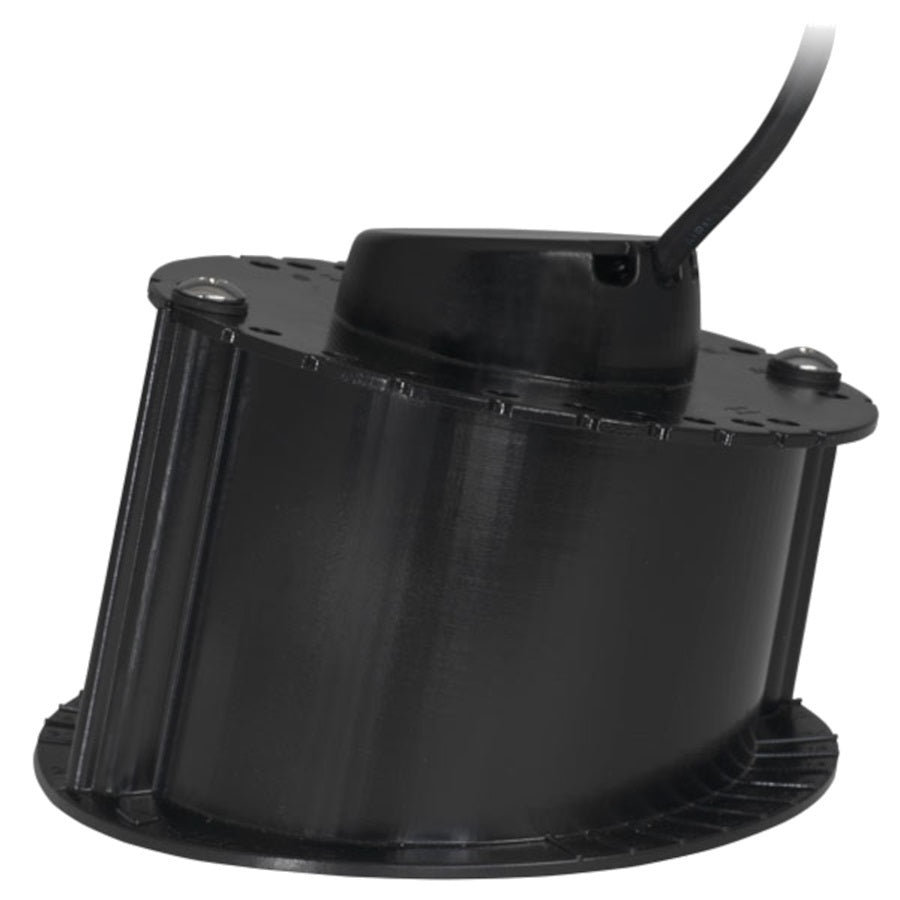

Airmar M135C-M In-Hull Transducer Medium CHIRP with Navico Blue 7-Pin Mix-N-Match Cable
Model: M135C-M-BLAs Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M135M, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the medium frequency range of 85-135 kHz, these transducers reveal ultra-clear target resolution in shallow, murky waters at medium depths (up to 1,500 feet*).
The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset, insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25' with solid core, fiberglass hulls.
Specifications| Weight | 9.17 lb (4.16 kg) |
| Hull Deadrise | adjustable 2° to 20° |
| Acoustic Window | Urethane |
| Medium frequency | 85 to 135 kHz |
| beamwidth | 16° to 11° |
| Maximum depth of | 457 m (1500') |
| Transducer Element | One broadband ceramic assembly |
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
4.8 lb |
| Acoustic Window: |
Urethane |
| Cable-Length: |
10 m (33') |
| Common Use: |
Leisure/Yachting, Fishing |
| Connector: |
Lowrance 7-Pin |
| Country of Origin: |
USA |
| Deadrise Range: |
0° to 22° |
| Display Connector: |
BL |
| Frequency Band: |
Medium |
| Housing Material: |
Plastic |
| Hull Material: |
Solid fiberglass only |
| Max Deadrise: |
Up to 22° |
| Max Deadrise Angle: |
22° |
| Max Depth: |
457 m (1500') |
| Max Vessel LOA: |
Up to 11 m (36') |
| Medium Frequency: |
85-135 kHz |
| Medium Frequency Beamwidth: |
16°-11° |
| Mix and Match Series: |
12-Pin Chirp |
| Mounting Style: |
In-Hull |
| Power Rating: |
1 kW |
| Sensor Connector: |
MMC |
| Single or Dual Frequency: |
CHIRP-Ready Single-Band |
| Tilted Element: |
No |
| Transducer Functions: |
Depth |
| Weight: |
4.2 kg (9.2 lb.) |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
