B&G V100-B Modular VHF Radio With Class B AIS, External GPS Antenna, and Loudhailer Navigate safely with the B&G V100-B VHF marine radio, with integrated Class-B AIS transceiver and GPS. Stay connected from anywhere on your vessel with up to eight handsets (four wired and four wireless) and four external speakers. An external GPS-500 delivers advanced AIS functionality. The V100-B system features a Class-B AIS receiver and transmitter, so not only is your boat's position identifiable to nearby AIS-enabled vessels but theirs are also visible to you. The integrated AIS receiver is a valuable aid to help avoid collisions in crowded harbours and waterways. It monitors the location of all nearby AIS-enabled vessels, providing real-time information in any weather condition, night and day. AIS information can be viewed directly on the radio's screen or via a compatible multifunction device, as an overlay on a chart or radar screen. The V100-B is a modular VHF system that's expandable and customisable to suit any boat and any on-water communication needs. The standard package includes one wired handset and one external speaker. This setup is expandable up to eight handsets (four wired and four wireless) and four external speakers - ideal for use as an on-board intercom withwireless or wired handsets. The wireless handsets duplicate the radio display and controls on easy-to-read screens viewable under all lighting conditions, even bright sunlight. All primary functions are accessible from the handset with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60-second audio rewind.
B&G V100-B Blackbox VHF Radio System
Model: 000-5793-001With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. V-100-B is bundled with GPS-500 for enhanced AIS functionality.

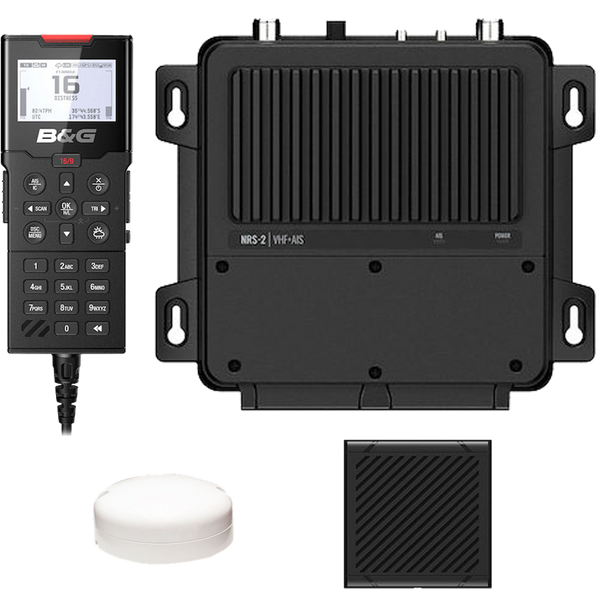

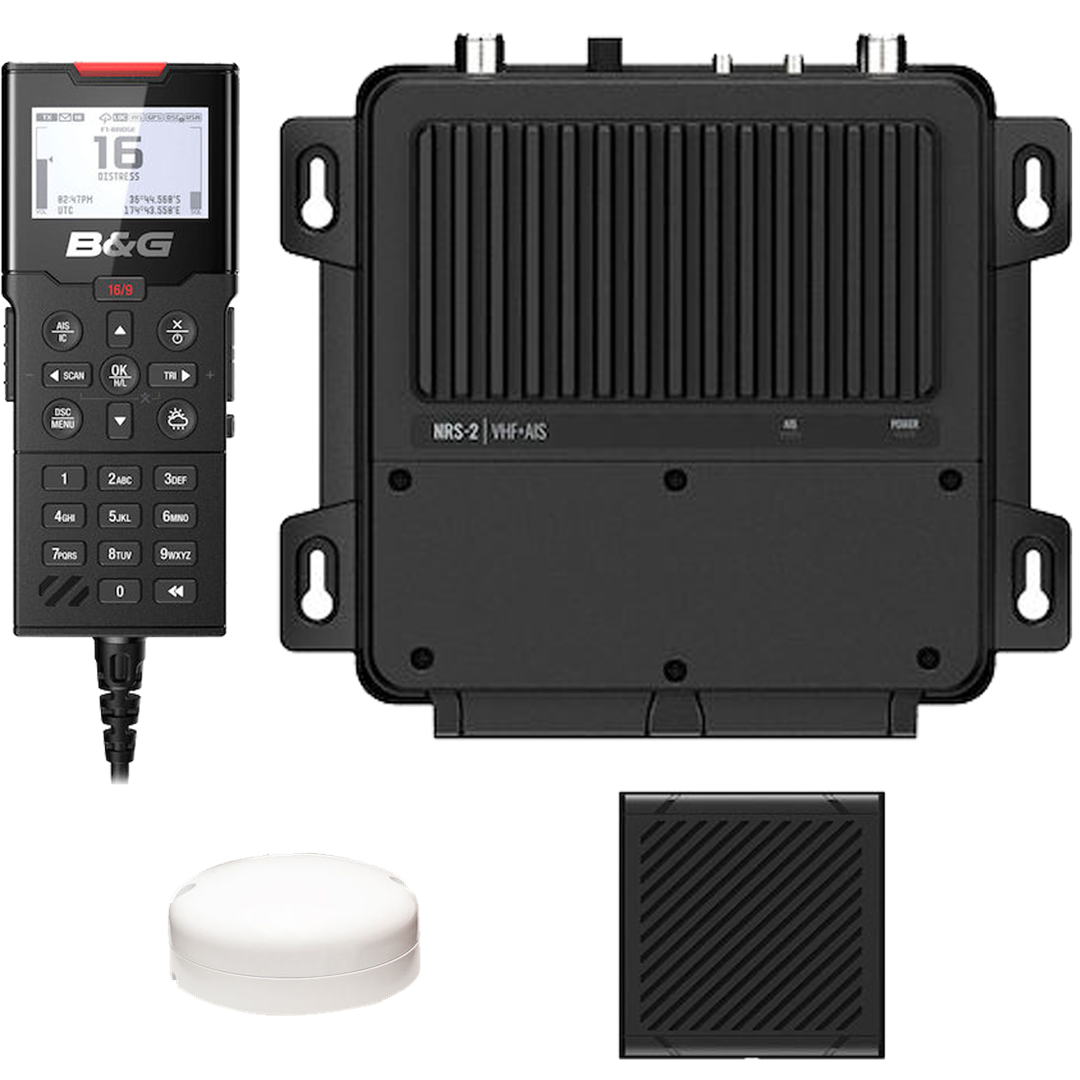

System comes with NRS-2 VHF Blackbox module with Class B AIS built in, GPS500 GPS Antenna, one H100 wired handset and one SP100 speaker.
The V100-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boats position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radios built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
The V100-B comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radios display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.
Specifications| System Features | |
| Local/Distant control: | Yes |
| Position polling: | Yes |
| Group call: | Yes |
| Call logs: | Yes - 20 individual and 10 distress |
| Channel naming: | Yes |
| Handset naming: | Yes |
| Dual watch / Tri watch: | Yes |
| Favourite channel scan: | Yes |
| All scan: | Yes |
| User programmable MMSI: | Yes |
| User programmable ATIS ID: | Yes |
| MMSI and NAME directory: | Yes - 50 vessel contacts and 20 group contacts |
| Software updates: | Yes, via NMEA 2000 |
| NRS-1 / NRS-2 - BLACKBOX | |
| Power supply: | 12 V DC battery system |
| Nominal operating voltage: | + 13.6 V DC |
| Low battery alert: | 10.5 V DC +/- 0.5 V |
| Over voltage protection: | > 15.8 V +/- 0.5 V |
| Current drain (transmit): | 6 A @ 25 W / 1.5 A @ 1W (12 V DC) |
| Current drain: NRS-1 (standby, 1 FHS): | Less than 400 mA in standby |
| Current drain: NRS-2 (standby, 1 FHS): | Less than 650 mA in standby |
| Replacement fuse: | 10 A, mini-blade type |
| Temperature range: | -20 C to +55 C (-4 F to 131 F) |
| VHF antenna connector: | SO-239 (50 ohm) |
| AIS antenna connector (NRS-2): | SO-239 (50 ohm) |
| GPS antenna connector: | SMA (female) |
| Wireless connector: | RP-SMA (female) |
| Compass safe distance: | 0.5 m (1.5) |
| NMEA 0183 input NRS-1 / NRS-2: | RMC, GGA, GLL, GNS |
| NMEA 0183 input NRS-2: | HDG, HDM, HDT |
| NMEA 0183 output NRS-1 / NRS-2: | DSC, DSE, MOB, VDM |
| NMEA 0183 output NRS-2: | VDO |
| External Speaker output power: | 4 W @ 4 ohm x 4 outputs |
| External speaker: | 4 ohm, minimum 5 W |
| Hailer output power: | 25W @ 4 ohm |
| Hailer speaker: | 4 ohm, minimum 30 W |
| Waterproof: | IPx5 |
| Transciever | |
| Usable channels (country specific): | International, USA, Canada, Weather |
| DSC mode: | Class D (Global) with dual receiver (individual CH70) |
| Transmitter | |
| Transmitter Frequency range: | 156.025 - 157.425 MHz |
| Output power: | 25 W (23 ± 2) / 1 W (0.8 ± 0.2) |
| Transmitter protection: | Open / short circuit of antenna |
| AIS (CLASS-B) (NRS-2 ONLY) | |
| AIS mode: | Class-B CS (CSTDMA) |
| AIS receive function: | Yes, dual receivers (receive only) |
| AIS transmit function: | Yes, single |
| BUILT-IN GPS RECEIVER | |
| Number of channels: | 72 channels |
| Receiving frequency: | 1575.42 MHz |
| Horizontal accuracy: | <10 m |
| Position fixing time: | Warm start: 30s, Cold start: 90s |
| WIRELESS SPECIFICATION | |
| Wireless standard: | 802.11 b/g/n20 |
| Operating frequency: | 2412~2472 MHz (for EU); 2412-2462 MHz (for US) |
| Type: | |
|---|---|
| Vendor: |
B&G |
