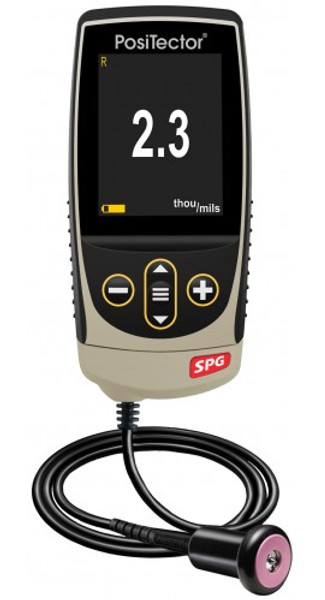

DeFelsko SPGCS3 PosiTector Advanced Surface Profile Gauge with cabled probe

No reviews yet Write a Review
$1,544.40
SKU:
SPGCS3
Condition:
New
Availability:
In Stock
5 customers are viewing this product

DeFelsko SPGCS3 PosiTector Advanced Surface Profile Gauge with cabled probe

$1,544.40

DeFelsko SPGCS3 PosiTector

Features

Simple

  • Fast measurement rate of over 50 readings per minute- ideal for quickly and accurately measuring large surface areas
  • Large 2.8” impact resistant color touchscreen with keypad for quick menu navigation
  • On-gauge help explains menu items at the touch of a button n RESET feature instantly restores factory settings

Accurate

  • Built-in temperature compensation ensures measurement accuracy
  • Glass zero plate and metal shim included
  • Conforms to national and international standards including ASTM

Powerful

  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen capture - save 100 screen images for record keeping and review - HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Instant-on feature quickly powers up the gauge if recently powered down
  • USB port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB drive-stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
  • Every stored measurement is date and time stamped
  • Storage of 1000 readings per probe-stored readings can be viewed or downloaded

Durable

  • Weatherproof, dust-proof, and water-resistant - IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Rugged, indoor/outdoor instrument-ideal for field or shop use
  • Shock-absorbing protective rubber holster for added impact resistance

Versatile

  • PosiTector body accepts all PosiTector SPG, RTR, 6000, 200, DPM, IRT, SST, SHD, BHI, and UTG probes easily converting from a surface profile gauge to a coating thickness gauge, dew point meter, soluble salt tester, hardness tester, or ultrasonic wall thickness gauge
  • Auto rotating display with flip lock

Includes all of these, PLUS:

  • Storage of 250,000 readings from multiple probes in up to 1000 batches and sub-batches
  • SmartBatch allows entry of user-defined parameters and criteria for quick statistical analysis to comply with standards such as ASTM D4417 and SSPC PA-17
  • Live graphing of measurement data
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 technology for data transfer to a mobile device running the PosiTector app or optional portable printer

Applications

  • Textured coating

USB keyboard mode

USB Keyboard mode enables PosiTector Advanced instruments to emulate a USB keyboard when connected to a computer.

USB Keyboard mode communicates with your computer by emulating keyboard keystrokes. When connected in this mode, PosiTector Advanced instruments will be recognized as a simple USB keyboard. Each reading is ‘typed’, followed by a carriage return (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup.

WiFi streaming

Built into the PosiTector Advanced gauge is the ability to stream readings over WiFi. If WiFi Streaming is enabled in the WiFi menu, the gauge will send a GET request to specified URL for each reading. The URL can contain tags which are replaced by the PosiTector with values corresponding to the reading. This solution turns the PosiTector gauge body into an Internet of Things device and is ideal for users with an existing WiFi network and a desire to stream live readings to a central application or database.

How to use WiFi Streaming

  1. Connect the PosiTector to a WiFi network
  2. Navigate to http://<positector ip address="">:8080/stream_url.php on a device connected to the </positector>same network. Replace <positector ip address=""> with the IP of the PosiTector found in the Connect menu. This page contains a text area where a URL can be entered as well as instructions on how to format the URL and what optional tags are available.</positector>
  3. As readings are taken the gauge will send GET requests to the URL entered.

USB serial streaming

PosiTector Advanced allows live streaming of measurement values to a USB connected computer.

Any software that accepts data via a serial interface can be configured to accept the PosiTector data stream.

The PosiTector creates a virtual ‘serial’ port, a protocol commonly used by applications to communicate with external tools and devices. PosiTector measurements can be captured as they are taken in real-time, including metadata such as the units and measurement type.

Any serial-compatible software can be configured to accept the PosiTector data stream. Proficient (by InfinityQS) and WinSPC (by DataNet systems) are two popular statistical process control (SPC) software options.

This solution is ideal for users who want the reliability and simplicity of a wired connection.

measurement data being streamed to a computer and processed using Proficient (by InfinityQS)

Proficient

measurement data being streamed to a computer and processed using WinSPC (by DataNet systems)

WinSPC

WiFi server mode

WiFi wireless technology is included with all PosiTector Advanced models Automatic Adhesion Testers with touchscreen display.

Any device connected on the same WiFi network can wirelessly access the gauge's stored measurement data to:

  • Viewed stored measurements using a standard web browser
  • Access HTML, comma delimited text (.txt) and JSON schema files - parse information for inclusion in databases or custom software applications
  • Remotely control gauge memory features such as creating a new batch, closing a batch and deleting all measurement data
  • Remotely view the live display of a working instrument - see the gauge display as if it were in your hand

This solution is ideal for users who want to store readings in the PosiTector gauge body to be transferred to another device at a later date.


Download the App

DeFelsko SPGCS3 Specifications

Range 0 to 1500 ?m (0 to 60 mils)
Accuracy ±(5 ?m + 5%)
±(0.2 mil + 5%)
Tip Angle: 60°
Radius: 500? (20 mils)
Dimensions 5 x 2.6 x 1" (127 x 66 x 25.4 mm)
Weight 4.9 oz (137 g)
Click here for complete specifications on the DeFelsko SPGCS3
