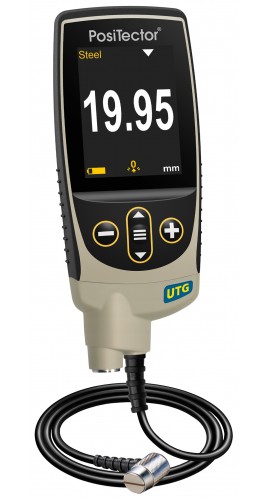

DeFelsko UTGCLF1 PosiTector Standard Ultrasonic Thickness Gauge with low frequency probe

No reviews yet Write a Review
$1,413.72
SKU:
UTGCLF1
Condition:
New
Availability:
In Stock
5 customers are viewing this product

DeFelsko UTGCLF1 PosiTector Standard Ultrasonic Thickness Gauge with low frequency probe

$1,413.72

DeFelsko UTGCLF1

Features

Simple

  • Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
  • Smart Couple mode eliminates unintentional decoupling-ensure continuous measurements while measuring on scaled or pitted surfaces - ideal for analyzing large areas using multiple passes
  • Large 2.8" impact resistant color touchscreen with keypad for quick menu navigation
  • On-gauge help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Built-in temperature compensation ensures measurement accuracy
  • Conforms to national and international standards including ASTM E797

Powerful

  • Min scan mode take continuous readings and record min/max thicknesses - ideal for quick inspection over a large area
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen capture - save 100 screen images for record keeping and review
  • Instant-on feature quickly powers up the gauge if recently powered down
  • USB Port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB drive-stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
  • Every stored measurement is date and time stamped
  • Storage of 1000 readings per probe - stored readings can be viewed or downloaded
  • 5 MHz dual element transducer with cabled probe

Durable

  • Weatherproof, dust-proof, and water-resistant - IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance

Versatile

  • PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gauge to a coating thickness gauge, surface profile gauge, dew point meter, soluble salt tester, or hardness tester
  • Auto rotating display with flip lock
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages

Applications

  • Corrosion
  • Measuring the wall thickness of materials such as steel and plastic
  • Measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

DeFelsko UTGCLF1 Specifications

Probe Type 2.25 MHz dual element
Mode Single echo
Measurement Range 0.040" to 5.000" (1.00 to 125.00 mm)
Resolution 0.001" (0.01 mm)
Accuracy ±0.001" (±0.03 mm)
Click here for complete specifications on the DeFelsko UTGCLF1
