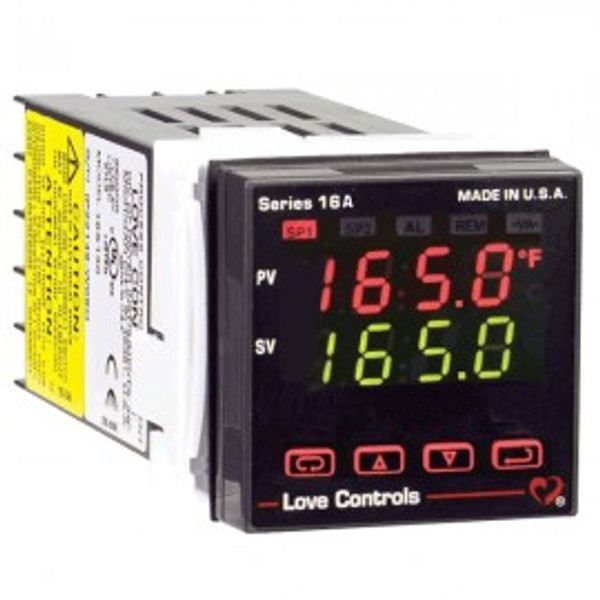

Dwyer 16A2151 Temperature/Process Controller with one current & one SSR output & alarm

No reviews yet Write a Review
$732.02
SKU:
16A2151
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer 16A2151 Temperature/Process Controller with one current & one SSR output & alarm

$732.02

Dwyer 16A Series

Features

  • Available outputs are solid-state relay, relay, pulsed voltage, or proportional current Programmable alarm (optional) can be reset automatically or manually
  • Front panel is waterproof and corrosion resistant (UL type 4X), making it ideal for sanitary applications
  • Replace electronics without wiring changes (via removable front panel)
  • Self diagnostics, nonvolatile memory and selectable control modes are all designed for greater productivity
  • Four security levels are password protected. On-off, P, PI or PID manual tune control functions can be selected or the controller will Self-Tune automatically for best PID control
  • Peak/Valley indication, Percent Output indication, Digital Input Filter, and a host of others
Functional Specifications
  • Selectable Inputs: Thermocouple, RTD, DC Voltage, or DC Current (See Input Ranges)
  • Display: Two four-digit LED displays, 0.3 in (7.62 mm) high
  • Display Resolution: 1 degree or 0.1 degree (sensor dependent), or 1 count
  • Accuracy: ±0.25% of span ±1 least significant digit
  • Supply Voltage: 100 to 240 VAC nominal, +10% -15%, 50 to 400 Hz single phase; 132 to 240 VDC +10% -20%
  • Operating Temperature: 14 to 131°F (-10 to 55°C)
  • Control Output Ratings: SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA
  • DC SSR: 1.75 A at 32 VDC maximum
  • Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive
  • Pilot Duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC
  • Alarm Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty Rating: 240 VA, 2 A @ 120 VAC or 1 A @ 240 VAC
  • Switched Voltage: 15 VDC at 20 mA
  • Proportional Current: 0 to 20 mADC, scalable, into 600 ohms maximum
General Specifications
  • Weight: 8 oz (227g)
  • Power Consumption: 5 VA maximum

Includes Dwyer 16A2151

  • Dwyer 16A2151 Temperature/Process Controller with one current & one SSR output & alarm
