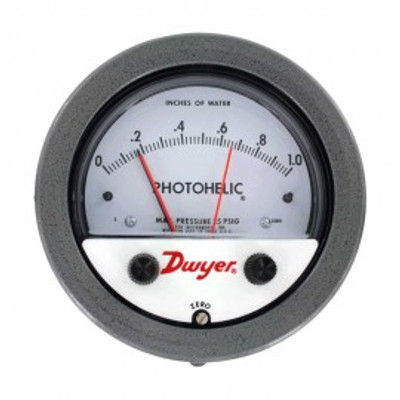

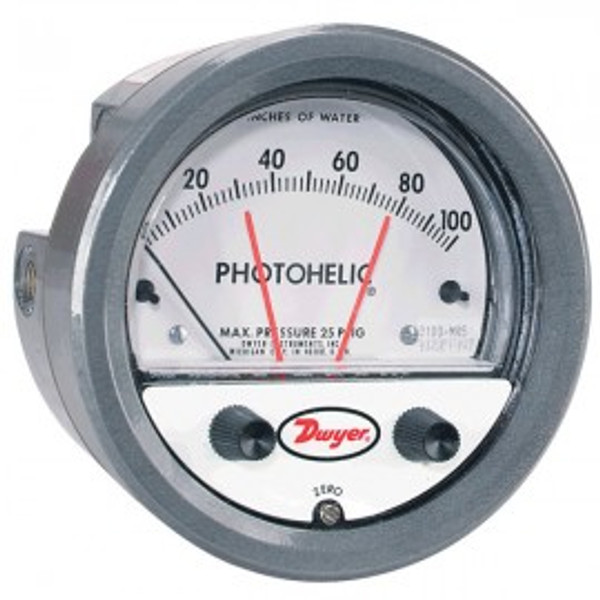

Using solid state technology, there Series 3000MR and 3000MRS Photohelic switch/gauges combine the functions of a precise, highly repeatable differential pressure switch with a large easy-to-read analog pressure gauge employing the durable, time-proven Magnehelic gauge design. Switch setting is easy to adjust with large external knobs on the gauge face. Gauge reading is unaffected by switch operation - will indicate accurately even if power is interrupted. Solid state design now results in greatly reduced size and weight. Units can be flush mounted in 4-13/16" (122 mm) hole or surface mounted with hardware supplied. 3000MR models employ versatile electromechanical relays with gold over silver contacts - ideal for dry circuits. For applications requiring high cycle rates, choose 3000MRS models with SPST (N.O.) solid state relays. All models provide both low and high limit control and include 18-inch (45 cm) cable assemblies for electrical connections.
Gauge accuracy is ±2% of full scale and switch repeatability is ±1%. Switch deadband is one pointer width - less than 1% of full scale. Compatible with air and other non-combustible, non-corrosive gases, they can be used in systems with pressures to 25 psig (1.725 bar).
Range 0-0.5" W.C., .01 minor divisions
| Switch Specifications 3000MR | |
| Switch Type | Each setpoint has 1 form C relays (SPDT) |
| Relay Contacts | (Resistive load) 1 form C rated 1.0 A at 30 VDC 0.3 A at 110 VDC Or 0.5 A at 125 VAC Gold over clad silver - suitable for dry circuits |
| Electrical Connections | 18" (46 cm) cable assembly with 8 conductors Optional lengths to 100' (30.5 m) |
| Power Requirements | 24 VDC, regulated ±10% |
| Mounting Orientation | Diaphragm in vertical position |
| Set Point Adjustment | Adjustable knobs on face |
| Agency Approvals | CE |
| Switch Specifications 3000MRS | |
| Switch Type | Each set point has a solid state relay |
| Switching Voltage | 20 to 280 VAC (47 to 63 Hz) |
| Switching Current | 1.0 amp (AC) maximum 0.01 mA (AC) minimum (2) SPST NO |
| Electrical Connections | 18" (46 cm) cable assembly with 6 conductors Optional lengths to 100' (30.5 m) |
| Power Requirements | 24 VDC, regulated ±10% |
| Mounting Orientation | Diaphragm in vertical position |
| Set Point Adjustment | Adjustable knobs on face |
| Agency Approvals | CE |
| Gauge Specifications | |
| Service | Air and non-combustible, compatible gases |
| Accuracy | ±2% of FS (3000-0 ±3% of FS) (3000-00 ±4% of FS) |
| Pressure Limit | -20" Hg to 25 psig (-0.677 bar to 1.72 bar) MP option: 35 psig (2.41 bar) HP option: 80 psig (5.52 bar) |
| Temperature Limits | 20 to 120°F (-6.67 to 48.9°C) |
| Process Connections | ?" female NPT (duplicated side and back) |
| Dimensions | 4" (101.6 mm) dial face 5 x 3?" (127 x 79.38 mm) |
| Weight | 1.8 lbs (816 g) |
