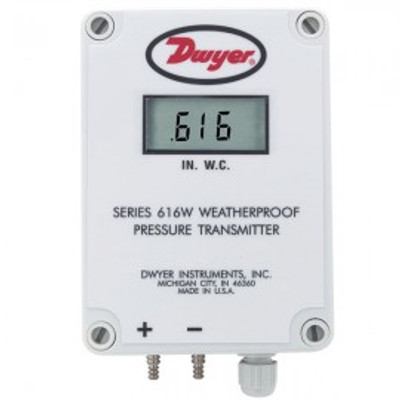

Dwyer 616WL-2 Weatherproof Differential Pressure Transmitter (0-0.25"w.c.)

No reviews yet Write a Review
$810.75
SKU:
616WL-2
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer 616WL-2 Weatherproof Differential Pressure Transmitter (0-0.25"w.c.)

$810.75

Dwyer 616WL-2 DIFFERENTIAL PRESSURE TRANSMITTER, 0-0.25

  • This weatherproof unit is enclosed in a polycarbonate case, designed to meet (IP66/NEMA 4X).
  • Internal digital push button zero and span allow for quick and simple field calibration.

Specifications:

Service: Air and non-combustible, compatible gases.
Accuracy: ±0.50% F.S., display accuracy ±0.5%.
Stability: ±1% F.S./yr.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: 2 psig.
Thermal Effect: ±0.02% F.S./°F (0.036% F.S./°C).
Power Requirements: 12-30 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital, Push Button Adj.
Loop Resistance: DC; 0-900 ohms maximum.
Current Consumption: DC; 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Process Connections: Barbed, dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) I.D. rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Vertical.
Weight: Without LCD 17 oz (482 g).
Agency Approvals: CE.

Dwyer 616WL-2 Specifications

Service Air and non-combustible, compatible gases
Wetted Materials Consult factory
Accuracy ±0.50% F.S., display accuracy ±0.5%
Stability ±1% F.S./yr
Temperature Limits 0 to 140°F (-17.8 to 60°C)
Compensated Temperature Limits 20 to 120°F (-6.67 to 48.9°C)
Thermal Effect ±0.02% F.S./°F (0.036% F.S./°C)
Power Requirements 12 to 30 VDC (2-wire)
Output Signal 4 to 20 mA
Zero and Span Adjustments Digital, Push Button Adj
Loop Resistance DC: 0 to 900 ? maximum
Current Consumption DC: 38 mA maximum
Electrical Connections Screw-type terminal block
Process Connections Barbed, dual size to fit ?" and 3?16" (3.12 and 4.76 mm) I.D. rubber or vinyl tubing
Enclosure Rating NEMA 4X (IP66)
Mounting Orientation Vertical, consult factory for other position orientations
Weight Without LCD 17 oz (482 g)
With LCD 18 oz (510 g)
Agency Approvals CE
