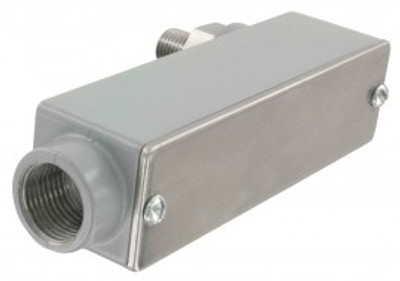

Dwyer 626-12-CB-P1-E5-S1 Pressure Transmitter (0-200 psig) with 0.25% f.s. Accuracy & Conduit Box Housing

No reviews yet Write a Review
$263.00
SKU:
626-12-CB-P1-E5-S1
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer 626-12-CB-P1-E5-S1 Pressure Transmitter (0-200 psig) with 0.25% f.s. Accuracy & Conduit Box Housing

$263.00

Dwyer 626-12-CB-P1-E5-S1

Features

  • NEMA 4X rated enclosure
  • Robust 316L SS oil filled sensor
  • CE Approved Design
  • 0.25% FS (626), 1.0% FS (628)

Applications

  • Booster stations
  • Pumping systems
  • Irrigation equipment
  • PTO systems
  • Submersible pump control

Dwyer 626-12-CB-P1-E5-S1 Specifications

Service Compatible gases and liquids
Wetted Materials Type 316L SS
Accuracy 626: 0.25% FS, 0.20% RSS
628: 1.0% FS, 0.5% RSS
626 Absolute Ranges: 0.5% FS, 0.30% RSS (includes linearity, hysteresis, and repeatability)
Temperature Limit 0 to 200°F (-18 to 93°C)
Compensated Temperature Range 0 to 175°F (-18 to 79°C)
Thermal Effect ±0.2% FS/°F (includes zero and span)
Display Optional 4½ digit LCD field attachable display
Power Requirement 10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, VDC outputs)
13 to 30 VDC (for 0 to 10 VDC output)
5 VDC ±0.5 VDC (for 0.5 to 4.5 VDC ratio metric output), 10 to 35 VDC (for 4 to 20 mA with -CB option)
13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with -CB option)
Output Signal 4 to 20 mA, 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC, or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option
Response Time 300 ms
Loop Resistance 0 to 1000 ? max. R max = 50 (Vps-10) ? (4 to 20 mA output)
0 to 1250 ? max. Rmax = 50(Vps-10) ? (4 to 20 mA output with -CB option)
5 K? (0 to 5, 1 to 5, 0 to 10, 0.5 to 4.5 VDC output)
Stability 1.0% FS/year (typical)
Current Consumption 38 mA maximum (for 4 to 20 mA output)
10 mA maximum (for 0 to 5, 1 to 5, 0 to 10, 0.5 to 4.5 VDC output)
140 mA maximum (for all 626/628/629-CH with optional LED)
Electrical Connections Conduit housing (-CH): Terminal block, ½" female NPT conduit
General purpose housing (-GH): Cable DIN EN 175801-803-C
Process Connections ¼" male or female NPT and BSPT
Enclosure Rating NEMA 4X (IP66)
Weight 10 oz (283 g)
Agency Approvals Standard: CE; Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20
