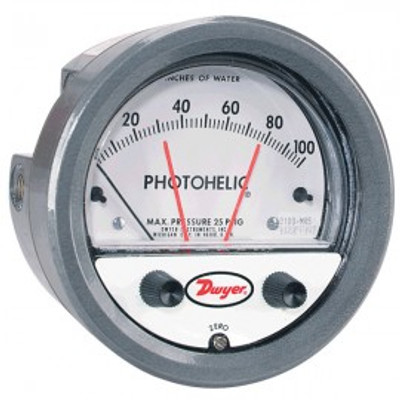

The Dwyer A3010 Pressure Switch/Gauge has a range of 0-8" w.c.
Photohelic® Switch/Gauges function as versatile, highly repeatable pressure switches combined with a precise pressure gauge employing the time-proven Magnehelic® gauge design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases. Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig. Single pressure 36000S models measure to 6000 psig (413 bar) with a 9000 psig (620 bar) rating. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gauge face. Individual set point deadband is one pointer width - less than 1% of full scale. Set points can be interlocked to provide variable deadband - ideal for control of fans, dampers, etc. Gauge reading is continuous and unaffected by switch operation, even during loss of electrical power. Choose from full scale pressure ranges from a low 0-.25" (0-6 mm) w.c. up to 30 psi (21 bar); single positive pressure to 6000 psig (413 bar).
Photohelic Sensing - How It Works
In typical applications, these Dwyer switch/gages control between high and low pressure set points. When pressure changes, reaching either set point pressure, the infrared light to the limiting phototransistor is cut off by the helix-driven light shutter. The resulting phototransistor signal is electronically amplified to actuate its DPDT slave relay and switching occurs. Dead band between make and break is 1% of full scale or less - just enough to assure positive, chatter-free operation.
Relay-Transformer Features
A plastic housing protects all electronic components. Solid-state and integrated circuit electronics are on glass-epoxy printed circuit boards and self-extinguishing terminal boards.
| Switch Specifications | |
| Switch Type | Each set point has 2 Form C relays (DPDT) |
| Repeatability | ±1% of FS |
| Electrical Rating | 10 A at 28 VDC 10 A at 120 240 VAC |
| Electrical Connections | Screw terminals. Use 167°F (75°C) copper conductors only |
| Power Requirements | 120 VAC, 50/60 Hz 240 VAC and 24 VAC power optional |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations |
| Set Point Adjustment | Adjustable knobs on face |
| Agency Approvals | CE, CSA, UL |
| Gauge Specifications | |
| Service | Air and non-combustible, compatible gases |
| Accuracy | ±2% of FS at 70°F (21.1°C) ±3% on -0 ±4% on -00 models |
| Pressure Limits | -20" Hg to 25 psig (-0.677 to 1.72 bar) MP option; 35 psig (2.41 bar) HP option; 80 psig (5.52 bar) |
| Temperature Limits | 20 to 120°F. (-6.67 to 48.9°C) -20 to 120°F (-28 to 48.9°C) with low temperature option |
| Process Connections | ? female NPT |
| Dimensions | 4" (101.6 mm) dial face 5 x 8¼" (127 x 209.55 mm) |
| Weight | 4 lb (1.81 kg) |
