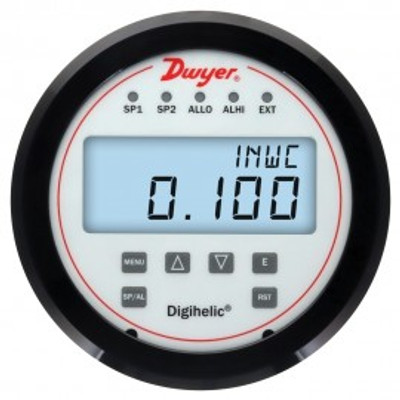

![Dwyer DHC-003 Digihelic Differential Pressure Controller (0-0.5"w.c.) Dwyer DHC-003 Digihelic Differential Pressure Controller (0-0.5"w.c.)](https://cdn11.bigcommerce.com/s-78w61y1tjp/images/stencil/400x400/products/57543/58074/dwyer-dh3-003-digihelic-reg%253B-differential-pressure-controller-0-0-5-w-c__35819.1685912491.jpg?c=1)
Guaranteed Fitment
Always the correct part
have questions?
Always the correct part
We know our products
Fast & Reliable
Features
Switch Specifications | |
Switch Type | 2 SPDT relays |
Electrical Rating | 1 A at 30 VAC/VDC |
Set Point Adjustment | Adjustable via keypad on face |
General Specifications | |
Service | Air and non-combustible, compatible gases |
Wetted Materials | Consult factory |
Housing Material | Die cast aluminum case and bezel |
Accuracy | ±1.5% for 0.25" and ±0.25" w.c. ranges Ranges 0.5" to 5" w.c. and corresponding bi-directional (except ±2.5" w.c.) ±1% All other ranges: ±0.5% @ 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) |
Stability | <±1% per year |
Pressure Limits | Ranges ? 2.5" w.c.: 25 psi ±2.5", 5" w.c.: 5 psi 10" w.c.: 5 psi 25" w.c.: 5 psi 50" w.c.: 5 psi 100" w.c.: 9 psi |
Temperature Limits | 32 to 140°F (0 to 60°C) |
Compensated Temperature Limits | 32 to 140°F (0 to 60°C) |
Thermal Effects | 0.020%/°F (0.036/°C) from 77°F (25°C) 0.25" and ±0.25" w.c. ranges: ±0.03%/°F (±0.054%/°C) |
Power Requirements | 12 to 28 VDC 12 to 28 VAC 50 to 400 Hz |
Power Consumption | 3 VA max |
Output Signal | 4 to 20 mA DC into 900 ? max |
Zero and Span Adjustments | Accessible via menus |
Response Time | 250 ms (damping set to 1) |
Display | Backlit 4 digit LCD 0.4" height LED indicators for set point and alarm status |
Electrical Connections | 15 pin male high density D-sub connection. 18" (46 cm) cable with 10 conductors included |
Process Connections | ?" female NPT. Side or back connections |
Mounting Orientation | Mount unit in vertical plane |
Dimensions | 5 x 31?8" (127 x 79.38 mm) |
Weight | 1.75 lb (794 g) |
Agency Approvals | CE |
