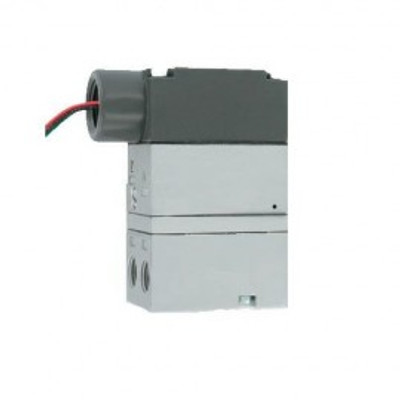

Dwyer IP-42 Series IP Current to Pressure Transducer

No reviews yet Write a Review
$780.96
SKU:
IP-42
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer IP-42 Series IP Current to Pressure Transducer

$780.96

Dwyer IP-42 Series IP Current to Pressure Transducer

The rugged NEMA 4X enclosure allows splashdown and outdoor installation.

Features

  • Built-in volume booster
  • Low air consumption
  • Field reversible (provides output which is inversely proportional to the input signal)
  • Flexible zero and span adjustments

Applications

  • Operation of valve actuators
  • Pneumatic valve positioners
  • Damper and louver actuators
  • Final control elements
  • Relays
  • Air cylinders
  • Web tensioners
  • Clutches and brakes

Dwyer IP-42 Specifications

Service Oil free, clean dry air filtered to 40 microns
Input Signal 4-20 mA
Input Impedance IP-42: 180 ohms; IP-43 and IP-44: 220 ohms
Air Pressure Minimum: 3 psig (21 kPa) above maximum output
Maximum: 100 psig (700 kPa)
Linearity <±0.75% of span
Hysteresis <1% of span
Repeatability <0.5% of span
Supply Pressure Sensitivity <±0.1% of span per psig (<±0.15% of span per 10 kPa)
Power Requirements Loop powered
Temperature Limits -20 to 140°F (-30 to 60°C)
Pressure Connections 1/4" female NPT
Electrical Connection 1/2" female NPT
Air Consumption 0.03 SCFM (0.5 m3/h) typical
Output Capacity 4.5 SCFM (7.6 m3/h ANR) at 25 psig (175 kPa) supply
12 SCFM (20 m3/h) at 100 psig (700 kPa) supply
Relief Capacity 2 SCFM (3.4 m3/h) at 5 psig (35 kPa) above 20 psig (140 kPa) setpoint
Weight 2.1 lb (0.94 kg)
Agency Approvals CE, FM
