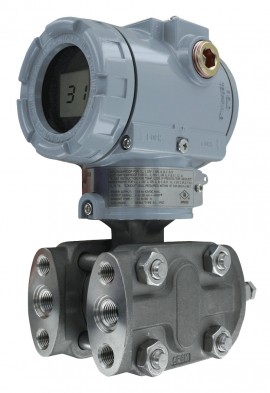

Configure this transmitter for differential pressure or level applications with the zero and span buttons without a field calibrator. The software compensates for thermal effects, improving performance, and EEPROM stores configuration settings and sensor correction coefficients in the event of shutdowns or power loss. In addition, it is FM approved for use in hazardous (classified) locations, and the 100:1 rangeability allows for configuration to fit any application.
Features
Applications
| Service | Compatible gases, steam, liquids or vapors |
| Range | 0 to 150 inWC |
| Accuracy | ±0.075% FS (at 20°C) |
| Rangeability | 100:1 turn down (0 to 6 inWC range is 20:1 turn down) |
| Calibrated Span (Minimum to Maximum) | 1.5 to 150 inWC 0.373 to 37.3 kPa |
| Range Limits | Lower: -150 inWC, -37.3 kPa Upper: 150 inWC, 37.3 kPa |
| Stability | ±0.125% FSO/year |
| Temperature Limits | Process: -40 to 248°F (-40 to 120°C) Ambient with LCD: -22 to 176°F (-30 to 80°C) |
| Pressure Limits | Maximum pressure: -14.5 to 2000 psi range Burst pressure: 10000 psi |
| Thermal Effect | ±0.125% span/32°C |
| Wetted Materials | 316L SS, fluoroelastomer |
| Display | 5-digit LCD |
| Response/Damping Time | Response: 0.12 seconds Damping: 0.25 to 60 seconds |
| Loop Resistance | Operation: 0 to 1500 ? HART® Communication: 250 to 500 ? |
| Connections | Process: ¼" female NPT Electrical: ½" female NPT |
| Power Requirements | 11.9 to 45 V DC |
| Output Signal | 4 to 20 mA/HART® communication |
| Enclosure Rating | NEMA 4X (IP66) and explosion-proof for class I, division I, groups A, B, C and D |
| Compliance | CE, FM |
| Dimensions | 4.4 x 3.38 x 7.58" (112 x 86 x 192.5 mm) |
| Weight | 8.6 lbs (3.9 kg) |
