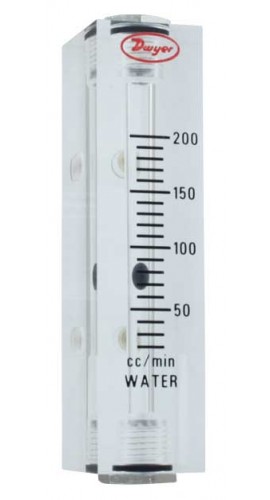

The VisiFloat® flowmeter bodies are cut and precision machined from solid, clear acrylic plastic blocks. This construction not only produces a handsome finished product, but permits complete visual inspection. As a result, the Visi-Float® flowmeters are especially popular for medical and laboratory equipment applications.
Features
Wetted Materials | |
Body | Acrylic plastic; O-ring: Buna-N (fluoroelastomer available) |
Metal Parts | Brass standard, stainless steel optional |
Float | Stainless steel, black glass, aluminum, K Monel depending on range |
Temperature & Pressure Limits | |
Without Valve | 100 psig (6.9 bar) at 150°F (65°C) 150 psig (10 bar) at 100°F (38°C) |
With Valve | 100 psig (6.9 bar) at 120°F (48°C). |
Functional Specifications | |
Accuracy | VFA: 5% of full-scale VFB: 3% of full-scale |
Process Connection | ?" female NPT VFB ranges 85 and 86 have ¼" NPT back connections or ?" NPT end connections. |
General Specifications | |
Scale Length | 2" (5.1 cm) typical length |
Mounting Orientation | Mount in vertical position |
Weight | VFA: 4.0 to 4.8 oz (113 to 136 g) VFB: 7.2 to 8.8 oz (204 to 249 g) |
