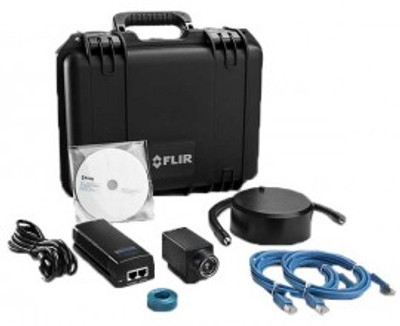

FLIR A35sc Benchtop Thermal Imaging Test Kit, 320 x 256, 60 Hz

No reviews yet Write a Review
$6,632.77
SKU:
73309-0102
Condition:
New
Availability:
In Stock
5 customers are viewing this product

FLIR A35sc Benchtop Thermal Imaging Test Kit, 320 x 256, 60 Hz

$6,632.77

FLIR 73309-0102

Suitable for process control, quality assurance, condition monitoring, and fire prevention, this kit allows you to retrieve reliable data in seconds and measures thousands of temperature points across your target. For industrial and research and development labs, this kit features advanced analysis software and a dependable temperature measurement solution.

Features

  • Affordable and compact: This thermal imaging temperature sensor brings thermal imaging to your smallest spaces at an affordable price
  • Plug-and-play: Easy setup thanks to GigE Vision and GenICam compliance and GigE Vision lockable connector
  • Connect multiple cameras: Synchronize between multiple cameras for greater coverage and communication, or for stereoscopic applications

Visualize heat

These non-contact temperature sensors are enhanced with thermal imaging.

  • Detect temperature differences as small as 50 mK
  • Choose the right field of view for your measurement area, from wide (90°) to narrow (6.2°)
  • Measures accurately in conditions up to 140°F (60°C)

Communicate data seamlessly

Stream temperature linear output through GenICam™ compliant software.

  • Integrate easily with cognex, national instruments, and other top machine vision systems
  • Stream thermal images at up to 60 Hz directly to your system, for instant data analysis
  • Synchronize cameras for stereoscopic applications

Designed to fir your applications

Get more out of your data with advanced analysis tools.

  • Compact size makes for easy installation in electrical cabinets and other small spaces
  • Offering the stability of a GigE vision lockable connector, and the flexibility of power over ethernet (PoE)
  • Ideal for any environment, the cameras' robust design can withstand harsh conditions

Applications

  • Process control and quality assurance
  • Condition monitoring and fire prevention
  • Industrial and research and development labs

FLIR 73309-0102 Specifications

Image and Optical Data
IR Resolution 320 x 256
Thermal Sensitivity/NETD <0.05°C at 30°C (86°F)/50 mK
Image Frequency 60 Hz
Focus Fixed
Detector Data
Type Uncooled VOx microbolometer
Spectral Range 7.5 to 13 µm
Pitch 17 µm
Time Constant 12 ms (typical)
Measurement
Object Temperature Range -13 to 212°F (-25 to 100°C)
-40 to 1022°F (-40 to 550°C)
Accuracy ±9°F (±5°C) or 5% of reading
Ethernet
Type Gigabit ethernet, control and image
Standard Connector IEEE 802.3, RJ-45
Communication GigE Vision version 1.2, client API GenICam compliant
Image Streaming 8-bit monochrome at 60 Hz
Signal linear/DDE; automatic/manual; Flip H&V
Bit Rate 14-bit 320 x 256 at 60 Hz
Signal linear/DDE; Temperature linear GigE vision and GeniCam compatible
Power Power over ethernet, PoE IEEE 802.3af class 0 power
Protocols TCP, UDP, ICMP, IGMP, DHCP, GigEVision
Digital Input/Output
Input 1 x opto-isolated,"0" <1.2 V DC,"1" = 2 to 25 V DC
Output 1 x opto-isolated, 2 to 40 V DC, maximum 185 mA
Voltage Isolation: 500 VRMS
Supply: 2 to 40 V DC, maximum 200 mA
Connector 12-pole M12 connector (shared with digital synchronization and external power
Synchronization In: Frame synch in to control camera 1x, non-isolated
In type: LVC buffer at 3.3 V,"0" <0.8 V,"1" >2 V
Out: Frame synch out to control another Ax5 unit 1x, non-isolated
Out type: LVC buffer at 3.3 V,"0" = 24 MA maximum,"1" = -24 mA maximum
Digital connector type: 2-pole M12 connector (shared with digital I/O and external power)
General Specifications
External Power Operation: 12/24 V DC, <3.5 W nominal <6 W absolute maximum
Connector type: 12-pole M12 connector (shared with digital I/O and digital synchronization)
Voltage: Allowed range 10 to 30 V DC
Temperature Range Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 158°F (-40 to 70°C)
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity 77 to 104°F (25 to 40°C)
EMC EN 61000-6-2 (Immunity), EN 61000-6-3 (Emission), FCC 47 CFR part 15 class B (Emission)
Encapsulation/Bump/Vibration IP40 (IEC 60529), 25 g (IEC 60068-2-27), 2 g (IEC60068-2-6), MILSTD810G
Mounting Tripod: UNC ¼" to 20 (three sides)
Base: 4 x M3 thread mounting holes (bottom)
Housing Material Magnesium and aluminum
Dimensions With 50 mm lens: 5.7 x 2.3 x 2.3" (141.1 x 58.4 x 58.4 mm)
