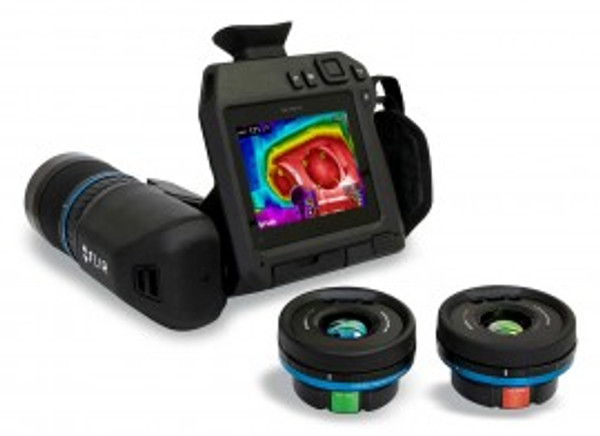

Capable of both gas detection and radiometric temperature measurement, this OGI camera is an ideal inspection tool for thermal inspections, electric power utilities, oil and natural gas operations, chemical/ manufacturing facilities, the food and agriculture industry, and first responders. It unmatched versatility as well as improved visualization of gas emissions and thermal inspections, along with a vibrant, 4" touchscreen LCD, 180° rotating optical block, and eyepiece for convenience in direct sunlight. Additionally, it provides the benefit of built-in thermographic calibrations and the flexibility to detect a wide range of gases by changing lenses.
Maximize efficiency
Locate gas leaks and perform thermal inspections with one camera.
Economical optical gas imaging
Provide every site with one or more cameras with industry-leading features.
Streamline inspections and reporting
Work easier with the ergonomic design, rapid-reporting features, and tools to organize findings in the field.
Applications
| Image and Optical Data | |
| Primary Gases Detected | LR: Methane, nitrous oxide, propane, sulfur dioxide, R-134a and R-152a HR: Sulfur hexafluoride, ammonia, ethylene |
| Lens Spectral Range | LR: 7 to 8.5 ?m HR: 9.5 to 12 ?m |
| Gas Sensitivity (NECL) | LR CH4: <100 ppm x m N2O: <75 ppm x m C3H8: <400 ppm x m SO2: <30 ppm x m R-134a: <20 ppm x m R-152a: <100 ppm x m (?T = 10°C, Distance = 3.28' [1 m]) HR SF6: <1 ppm x m C2H4: <20 ppm x m NH3: <20 ppm x m (?T = 10°C, Distance = 3.28' [1 m]) |
| Infrared Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity (NETD) | 6° lens: <40 mK at 86°F (30°C) 25° lens: <25 mK at 86°F (30°C) |
| Field of View (FOV) | 6° lens: 6.4 x 4.9° 25° lens: 25 x 19° |
| Focal Length | 6° lens: 2.9" (74 mm) 25° lens: 0.71" (18 mm) |
| f/number | 6° lens: 1.35 25° lens: 1.04 |
| Focus Modes | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Minimum Focus Distance | 6° lens: 16.4' (5 m) 25° lens: 0.98' (0.3 m) |
| Spatial Resolution (IFOV) | 6° lens: 0.36 mrad/pixel 25° lens: 1.4 mrad/pixel |
| Lens Identification | Automatic |
| Digital Zoom | 16x continuous |
| Detector Type and Pitch | Uncooled microbolometer, 25 ?m |
| Measurement and Analysis | |
| Temperature Ranges and Accuracy | LR: Range -4 to 158°F (-20 to 70°C): ±5.4°F (±3°C) HR: -4 to 158°F (-20 to 70°C): ±3.6°F (±2°C) Range 32 to 482°F (0 to 250°C): 32 to 212°F (0 to 100°C): ±5.4°F (±3°C) 212 to 482°F (100 to 250°C): ±3% Range 212 to 932°F (100 to 500°C): ±3% For ambient temperature 59 to 95°F (15 to 35°C) |
| Image Presentation and Frame Rate | |
| Image Frequency | 30 Hz |
| Display | 4", 640 x 480 pixels (VGA) touchscreen LCD with auto-rotation |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Image Modes | Infrared, visual, MSX, picture-in-picture, gallery |
| General Specifications | |
| Shock/Vibration/Encapsulation | 25 g (IEC 60068-2-27)/2 g (IEC 60068-2-6)/IP54 |
| Dimensions | 5.9 x 7.9 x 3.3" |
| Weight | 3.1 lbs |
