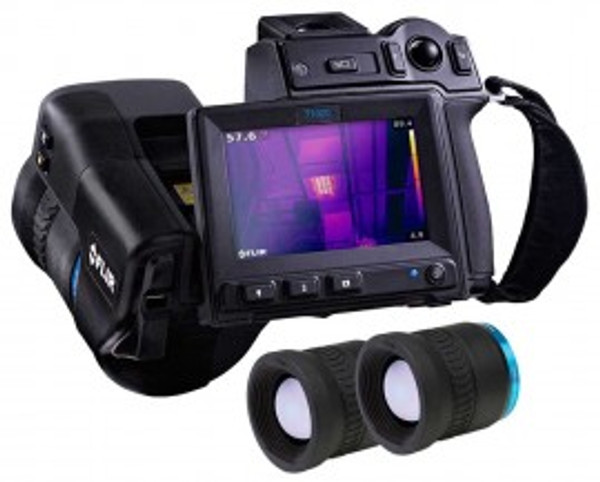

Obtain the highest accuracy and deliver stunning image quality with this HD thermal imaging camera that features a modern, intuitive graphical user interface. With expert features, such as MSX® and 1-Touch Level/Span, images can be enhanced directly on-screen.
Outstanding image clarity
See more detail and find hidden problems before they lead to costly system failures or shutdowns.
Exceptional measurement performance
Get accurate temperature readings from any angle or distance, so you can troubleshoot systems.
Designed for the expert user
Compact format, a responsive new user-interface, and advanced reporting software make your workday more productive.
Applications
| Image and Optical Data | |
| IR Resolution | 1024 x 768 (786,432 pixels) |
| UltraMax® | 3.14 Mpixels |
| Field of View | 12°: 12 x 9° (83 mm lens) 28°: 28 x 21° (36 mm lens) 45°: 45 x 34° (21 mm lens) |
| F-number | 12°: f/1.2 28°: f/1.15 45°: f/1.1 |
| Lens Identification | Automatic |
| Image Frequency | 30 Hz |
| Focus | One-shot, manual |
| Digital Zoom | 1-8x continuous |
| Detector Data | |
| Detector Type and Pitch | Uncooled microbolometer, 17 ?m |
| Spectral Range | 7.5 to 14 ?m |
| Thermal Sensitivity/NETD | <20 mK at 86°F (30°C) |
| Image Presentation and Modes | |
| Display | 4.3", 800 x 480 pixel capacitive touch screen with auto-orientation |
| Viewfinder | Built-in, 800 x 480 pixels |
| Digital Camera | 5 MP with built-in LED |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Image Modes | Infrared, visual, MSX, Picture-in-picture |
| Picture-in-Picture | Resizable and movable |
| Time-Lapse (Infrared) | 15 sec to 24 hrs |
| Measurement and Analysis | |
| Object Temperature Range | -40 to 302°F (-40 to 150°C) 32 to 1200°F (0 to 650°C) 572 to 3632°F (300 to 2000°C) |
| Accuracy | ±1.8°F (±1°C) or ±1% at 77°F (25°C) for temperatures from 41 to 302°F (5 to 150°C) |
| Alarms | Above, below, interval, moisture, insulation |
| Measurement Function Alarm | Audible/visible above/below alarms on any selected measurement function |
| Compass, GPS | Yes; automatic GPS image tagging |
| METERLiNK® | Yes; several readings |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Spotmeter | 10 |
| Area | 5 + 5 areas (boxes and circles) with max/min/avg |
| Laser Pointer | Dedicated button |
| Data Storage and Streaming | |
| Storage Media | Removable SD card |
| Image File Format | Standard JPEG with measurement data included |
| Radiometric IR Video | Recording: Real-time radiometric recording (.csq) Streaming: Yes, over USB |
| Non-Radiometric IR or Visual Video | H.264 to memory card Streaming: H.264 over Wi-Fi or USB |
| Video Out | HDMI 640 x 480, HDMI 1280 x 720, DVI 640 x 480, DVI 800 x 600 additional data battery type |
| Temperature Range | Operating: 5 to 122°F (-15 to 50°C) Storage: -40 to 158°F (-40 to 70°C) |
| Shock/Vibration/Encapsulation/Safety | 25 g/IEC 60068-2-29, 2 g/IEC 60068-2-6, IP 54/IEC 60529; EN/UL/CSA/PSE 60950-1 |
| Tripod Mounting | UNC ¼"-20 |
| Battery | Type: Rechargeable Li-ion battery Operating time: Approximately 2.5 hours at 77°F (25°C) ambient temperature and typical use |
| Dimensions | 6.6 x 8.0 x 7.4" (16.7 x 20.5 x 18.8 cm) |
| Weight | 4.6 lbs (2.1 kg) |
