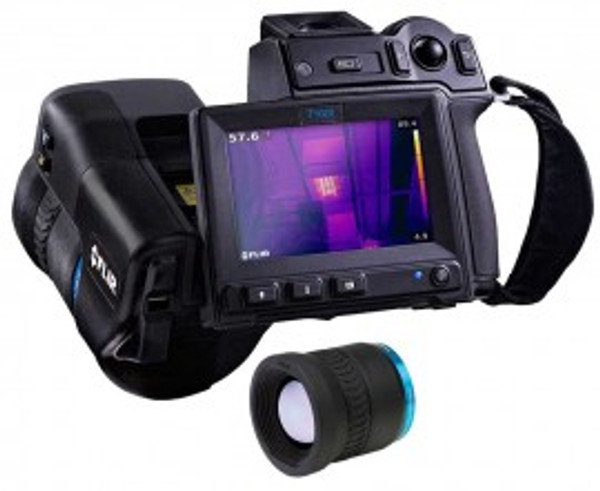

FLIR T1020-KIT-12 HD Thermal Imaging Camera with 12° and 28° lenses, 1024 x 768

No reviews yet Write a Review
$59,851.39
SKU:
72501-0104
Condition:
New
Availability:
In Stock
5 customers are viewing this product

FLIR T1020-KIT-12 HD Thermal Imaging Camera with 12° and 28° lenses, 1024 x 768

$59,851.39

FLIR 72501-0104

Obtain the highest accuracy and deliver stunning image quality with this HD thermal imaging camera that features a modern, intuitive graphical user interface. With expert features, such as MSX® and 1-Touch Level/Span, images can be enhanced directly on-screen.

Outstanding image clarity

See more detail and find hidden problems before they lead to costly system failures or shutdowns.

  • Get the best resolution with the 1024 x 768 detector
  • Detect subtle temperature differences, down to <0.01°C, that may signal an electrical or mechanical problem
  • Record smooth, low-noise images that are easy to interpret with FLIR Vision Processing™, featuring MSX, UltraMax®, and proprietary adaptive filtering algorithms

Exceptional measurement performance

Get accurate temperature readings from any angle or distance, so you can troubleshoot systems.

  • Pinpoint small temperature anomolies from farther away with high-fidelity OSX Precision HDIR lenses
  • Enhance measurement accuracy with UltraMax, which improves the distance to spot-size ratio
  • Monitor electrical and mechanical systems with a variety of temperature conditions thanks to measurement ranges up to 3632°F (2000°C)

Designed for the expert user

Compact format, a responsive new user-interface, and advanced reporting software make your workday more productive.

  • Navigate screens and set up work folders easily with intuitive, rapid-response GUI
  • Adjust images and improve measurements in the camera with features such as 1-Touch Level/Span
  • Capture full-resolution, full-frame radiometric video for comprehensive analysis
  • Analyze thermal images and report findings easily with included FLIR Tools+ software

Applications

  • Thermography
  • Electrical systems
  • Mechanical systems

FLIR 72501-0104 Specifications

Image and Optical Data
IR Resolution 1024 x 768 (786,432 pixels)
UltraMax® 3.14 Mpixels
Field of View 12°: 12 x 9° (83 mm lens)
28°: 28 x 21° (36 mm lens)
F-number 12°: f/1.2
28°: f/1.15
Lens Identification Automatic
Image Frequency 30 Hz
Focus One-shot, manual
Digital Zoom 1-8x continuous
Detector Data
Detector Type and Pitch Uncooled microbolometer, 17 ?m
Spectral Range 7.5 to 14 ?m
Thermal Sensitivity/NETD <20 mK at 86°F (30°C)
Image Presentation and Modes
Display 4.3", 800 x 480 pixel capacitive touch screen with auto-orientation
Viewfinder Built-in, 800 x 480 pixels
Digital Camera 5 MP with built-in LED
Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Image Modes Infrared, visual, MSX, Picture-in-picture
Picture-in-Picture Resizable and movable
Time-Lapse (Infrared) 15 sec to 24 hrs
Measurement and Analysis
Object Temperature Range -40 to 302°F (-40 to 150°C)
32 to 1200°F (0 to 650°C)
572 to 3632°F (300 to 2000°C)
Accuracy ±1.8°F (±1°C) or ±1% at 77°F (25°C) for temperatures from 41 to 302°F (5 to 150°C)
Alarms Above, below, interval, moisture, insulation
Measurement Function Alarm Audible/visible above/below alarms on any selected measurement function
Compass, GPS Yes; automatic GPS image tagging
METERLiNK® Yes; several readings
Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Spotmeter 10
Area 5 + 5 areas (boxes and circles) with max/min/avg
Laser Pointer Dedicated button
Data Storage and Streaming
Storage Media Removable SD card
Image File Format Standard JPEG with measurement data included
Radiometric IR Video Recording: Real-time radiometric recording (.csq)
Streaming: Yes, over USB
Non-Radiometric IR or Visual Video H.264 to memory card
Streaming: H.264 over Wi-Fi or USB
Video Out HDMI 640 x 480, HDMI 1280 x 720, DVI 640 x 480, DVI 800 x 600 additional data battery type
Temperature Range Operating: 5 to 122°F (-15 to 50°C)
Storage: -40 to 158°F (-40 to 70°C)
Shock/Vibration/Encapsulation/Safety 25 g/IEC 60068-2-29, 2 g/IEC 60068-2-6, IP 54/IEC 60529; EN/UL/CSA/PSE 60950-1
Tripod Mounting UNC ¼"-20
Battery Type: Rechargeable Li-ion battery
Operating time: Approximately 2.5 hours at 77°F (25°C) ambient temperature and typical use
Dimensions 6.6 x 8.0 x 7.4" (16.7 x 20.5 x 18.8 cm)
Weight 4.6 lbs (2.1 kg)
