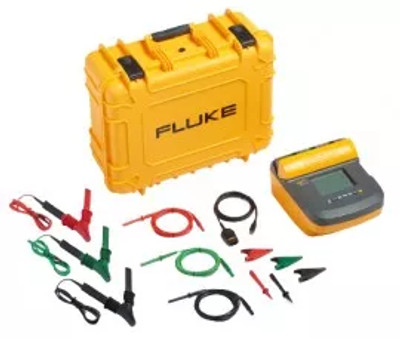

Fluke 1555 OffersConduct the entire range of test voltages specified in IEEE 43-2000 with a best-in-class CAT IV 600 V safety rating with this insulation resistance tester. With measurement storage, a PC interface, and the ability to store, share and analyze measurements through Fluke Connect (with the optional wireless connector), it is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
Features
Applications
| Electrical Specifications | The tester's accuracy is specified for one year after calibration at operating temperatures of 0 to 35°CFor operating temperatures outside the range (-20 to 0°C and 35 to 50°C), add ±0.25% per °C, except on the 20% bands add ±1% per °C |
| Insulation Resistance Measurement | |
| 250 V | Range:<250 kΩ250 kΩ to 5 GΩ5 to 50 GΩ>50 GΩAccuracy (± reading):Unspecified5%20%Unspecified |
| 500 V | Range:<500 kΩ500 kΩ to 10 GΩ10 to 100 GΩ>100 GΩAccuracy (± reading):Unspecified5%20%Unspecified |
| 1000 V | Range:<1 MΩ1 MΩ to 20 GΩ20 to 200 GΩ>200 GΩAccuracy (± reading):Unspecified5%20%Unspecified |
| 2500 V | Range:<2.5 MΩ2.5 MΩ to 50 GΩ50 to 500 GΩ>500 GΩAccuracy (± reading):Unspecified5%20%Unspecified |
| 5000 V | Range:<5 MΩ5 MΩ to 100 GΩ100 GΩ to 1 TΩ>1 TΩAccuracy (± reading):Unspecified5%20%Unspecified |
| 10,000 V | Range:<10 MΩ10 MΩ to 200 GΩ200 GΩ to 2 TΩ>2 TΩAccuracy (± reading):Unspecified5%20%Unspecified |
| Bar Graph Range | 0 to 1 TΩ |
| Insulation Test Voltage Accuracy | -0%, +10% at 1 mA load current |
| Induced AC Mains Current Rejection | 2 mA maximum |
| Capacitive Load | Charging rate: 5 seconds per µFDischarge rate: 1.5 seconds per µF |
| Leakage Current Measurement | Range: 1 nA to 2 mAAccuracy: ±(5% + 2 nA) |
| Capacitance Measurement | Range: 0.01 to 15 µFAccuracy: ±(15% rdg + 0.03 µF) |
| Timer | Range: 0 to 99 minutesResolution setting: 1 minuteResolution indication: 1 second |
| Live Circuit Warning | Warning range: 30 to 660 V AC/DC, 50/60 HzVoltage accuracy: ±(15% + 2 V) |
| General Specifications | |
| Software | FlukeView Forms™ basic software requires a PC running Windows XP, Vista, 7, or 8 |
| Display | 2.9 x 4" (75 x 105 mm) |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12Charger input (AC): 85 to 250 V AC 50/60 Hz 20 VA |
| Environmental | Operating temperature: -4 to 122°F (-20 to 50°C)Storage temperature: -4 to 149°F (-20 to 65°C)Humidity: 80% to 31°C decreasing linearly to 50% at 50°CAltitude: 6561.68' (2000 m)Enclosure sealing: IP40 |
| Input Overload Protection | 1000 V AC |
| EMC | EN 61326 |
| Safety Compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2IEC 61010-2-030: Measurement 600 V CAT IV/1000 V CAT IIIIEC 61557-1, IEC 61557-2 |
| Dimensions | 10.6 x 10.9 x 6.3" (269 x 277 x 160 mm) |
| Weight | 8.2 lbs (3.7 kg) |
