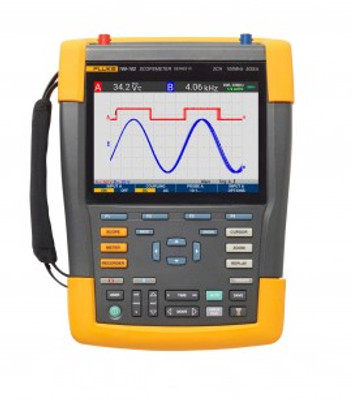

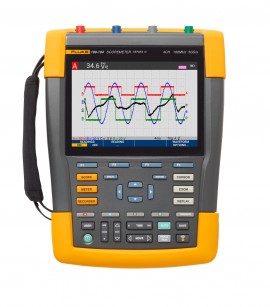

Fluke 190-104-III-S OffersAccurate and versatile, this portable oscilloscope provides a fast sampling rate of up to 5 GS/s, a 200 ps resolution, and deep memory of 10,000 samples per channel. Perform timing or amplitude-related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.
Features
Applications
Measure from mV to kV safely
Independently isolated inputs allow you to make measurements in mixed circuits having different ground references reducing the risk of accidental short circuits. Conventional bench oscilloscopes without special differential probes and isolation transformers can only reference measurements to line power earth ground. ScopeMeter 190 Series III test tools are engineered to cover a wide application range from mV to kV, so you’re ready for anything from microelectronics to heavy duty higher voltage electrical applications. 190 Series III 60 MHz and 100 MHz configurations include VPS421 100:1 probes for higher voltage applications, while the 200 MHz and 500 MHz configurations include VPS410-II 10:1 probes suitable for both microelectronics and higher voltage applications.
IP-51 rated for harsh environments
Rugged and shock-proof, ScopeMeter Test Tools are built for dirty, hazardous environments. With its sealed case, it can endure dust, drips, humidity and airborne pollutants. Every time you reach for ScopeMeter Test Tool you can be confident it will work reliably wherever your work takes you.
USB and Wi-Fi connectivity
The Fluke 190 Series III offers two USB ports, electrically isolated from measurement input circuits allowing you to quickly and easily transfer data to a PC, archive and share waveforms with OEMs, colleagues and support staff, or store waveforms, screen captures and instrument setups onto USB memory devices for later use. Easily transfer saved files via USB stick, direct connection via the USB interface or optional Wi-Fi connectivity. These files can be used for further data handling or in FlukeView-2 Software to study waveforms in greater detail.
Connect-and-View triggering
Connect-and-View triggering provides an instant, stable display without the need for adjusting settings. If you’ve used other scopes, you know how tricky triggering can be. If settings are incorrect, results can be unstable or incorrect. Connect-and-View automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable and repeatable display of virtually any signal including motor drive and control signals. It’s especially fast and convenient when you’re measuring a number of test points in rapid succession.
Built-in digital multimeter
Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter on two channel 190 Series III models. Measurement functions include Vdc, Vac, Vac+dc, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.
TrendPlot paperless recorder— records up to 11 days to help you find intermittent faults
The toughest faults to find are those that happen only once in a while. These intermittent events can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, dips, swells and interruptions, or the starting and stopping of a motor can also cause a machine to stop. You may not be around when it happens, but the 190 Series III ScopeMeter Test Tool will be.
| Vertical Deflection | |
| Number of Channels | 4 |
| Bandwidth | 100 Mhz |
| Rise Time | 3.5 ns |
| Channel Architecture | All inputs fully insulated from each other and from ground Inputs may be activated in any combination |
| Input Coupling | AC or DC, with ground level indicator |
| Input Sensitivity | With 10:1 probe, 20 mV to 1000 V/div With 100:1 probe, 200 mV to 10 kV/div Direct (1:1), 2 mV to 100 V/div |
| Bandwidth Limiter | 20 MHz and 10 kHz |
| Polarity | Normal, inverted, variable |
| Vertical Resolution | 8 bit |
| Accuracy at 4 s to 10 μs/div | 5 mV/div to 100 V/div, ±(1.5% + 6 counts) 2 mV/div, ±(1.5 % + 10 counts) |
| Input impedance | 1 MΩ (±1 %) // 15 pF (±2.25 pF) |
| Input Voltage Range | |
| Rated Maximum Floating Voltage | CAT III 1000 V / CAT IV 600 V (maximum voltage between any contact and earth-ground voltage level) |
| Probe Input Voltage VPS410-II | CAT III 1000 V / CAT IV 600 V (maximum voltage between standard 10:1 probe tip and reference lead) |
| Probe Input Voltage VPS421 | CAT III 1000V / CAT IV 600V (maximum voltage between probe tip or reference lead to GND, 2000V max between probe tip and reference lead) |
| Maximum BNC Input Voltage | CAT IV 300 V (maximum voltage on BNC input directly) |
| Memory Save and Recall | |
| Memory Locations (Internal) | 30 waveform memories plus 10 recording memories plus 9 screen copy memories |
| 30 Waveform Memories | Each memory can contain up to 2 or 4 waveforms plus corresponding setups |
| 10 Recording Memories | Each may contain: a 100 Screen Replay sequence, or a ScopeRecord Roll-mode recording (2 or 4 traces), or a TrendPlot recording of up to 4 measurements |
| External Data Storage | On PC, using FlukeView™-2 Software, or direct storage on external flash memory drive (maximum 32 GB) through USB host port |
| Screencopies | On PC, using FlukeView™-2 Software, or internally (in instrument) which can be copied on to external flash memory drive as .BMP-file, through USB host port |
| Volatility | Saving is done in non-volatile Flash-ROM and all data is secured, independent of battery or power status |
| Real-Time Clock | Provides date and time stamp information for ScopeRecord, for 100 Screen Replay sequences and for TrendPlot recordings |
| Case | |
| Design | Rugged, shock-proof with integrated protective holster. Handstrap and hangstrap included as standard Kensington lock supported to lock down instrument when left unattended |
| Drip and Dust Proof | IP 51 according to IEC60529 |
| Shock and Vibration | Shock 30 g, vibration (sinusoidal) 3 g / 0.03 g2/Hz (Random), according to MIL-PRF-28800F Class 2 |
| Display Size | 5.3 x 3.5" (133 x 90 mm) LCD |
| Resolution | 1120 pixels x 765 pixels |
| Brightness | User-adjustable, up to 300 cd/m2 |
| General Specifications | |
| Temperature | Operating: Battery discharging: 32 to 104°F (0 to 40°C); battery charging: 0 to 40°C (32 to 104°F) Storage: -4 to 140°F (-20 to 60°C) |
| Humidity | 32 to 50°F (0 to 10°C): noncondensing 50 to 86°F (10 to 30°C): 95% (±5%) 86 to 104°F (30 to 40°C): 75% (±5%) 104 to 122°F (40 to 50°C): 45% (±5%) |
| Maximum Operating Altitude | CAT IV 600 V, CAT III 1000 V: up to 6600’ (2000 m) CAT IV 300 V, CAT III 600 V, CAT II 1000 V: up to 13000’ (4000 m) |
| Maximum Storage Altitude | 40,000’ (12 km) |
| Interfaces | Two USB-ports provided Ports are fully insulated from instrument’s floating measurement circuitry USB-host port directly connects to external flash memory drive (up to 32 GB) for storage of waveform data, measurement results, instrument settings and screen copies Alternatively, this USB-A port may be used to connect a WiFi Adapter for wireless PC connectivity A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2. |
| Probe Calibration Output | Dedicated probe-cal output with reference contact provided, fully insulated from any measurement input channel Generator Output: 1.225 Vpp / 500 Hz square wave |
| Line Power | Universal mains adapter/battery charger BC190/830 included, with detachable 2-wire power cords 100 VAC to 240 VAC, ±10%, 50 to 60 Hz |
| Battery | Power: re-chargeable Li-Ion battery; battery swappable through easily accessible battery door at the rear of the instrument Type: BP291: 10.8V, 5000 mAh Charge indicator: battery has built-in status indicator for use with external charger, next to battery status indicator on instrument screen Operating time (with backlight low): up to 7 hours using BP291 (included) Charging time: five hours for BP291 Power saving functions: Auto ‘power down’ with adjustable power down time; automatic ‘display off’ with adjustable power down time; on-screen battery power indicator |
| Dimensions | 10.5 x 7.6 x 2.8" (265 x 192 x 70 mm) |
| Weight | 4.8 lbs (2.2 kg) |
