Availability: 1 in Stock

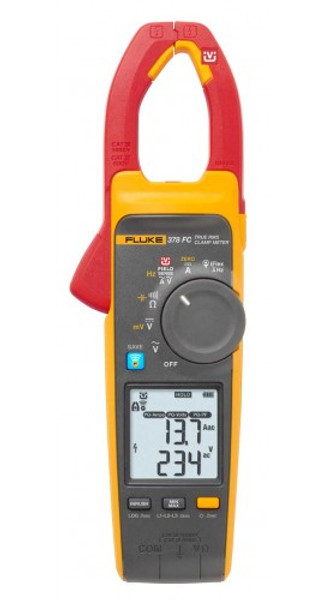

Fluke 378FC OffersUses Field-Sense™ technology to make testing faster and safer, all without touching a live conductor, and provides accurate voltage and current measurements through the clamp jaw. Easily clip the black test lead to any electrical ground, put the clamp jaw around the conductor, and see reliable, accurate voltage and current values on the display.
Features
Power quality indicator shows whether a problem is in the equipment or the power line
This clamp meter includes a unique PQ function that senses power quality issues automatically. When making FieldSense measurements, it will detect and display power quality issues, relating to current, voltage, power factor or any combination of the three. Now you can quickly determine if an upstream supply problem exists, or if there is a downstream equipment problem.
Voltage and current measurements with FieldSense™ technology
No more hand-written notes or complicated math.
Measure extremely high current with iFlex™ probe
Use the included iFlex flexible current probe to measure ac current as high as 2500 A. The iFlex probe provides access to large conductors in tight spaces.
Easy to see, easy to use with included tools
Your job will get easier when you use this clamp meter:
Record, analyze, share results with Fluke Connect™ software
With Fluke Connect software you can remotely log, trend and monitor measurements to pinpoint intermittent faults. Fluke Connect also allows you to gather data as the basis for a preventive maintenance program.
Applications
| Current | |
| AC - Jaw | Range: 999.9 A Resolution: 0.1 A Accuracy: 2% ±5 digits (10 to 100 Hz); 2.5% ±5 digits (100 to 500 Hz) Crest factor (50/60 Hz): 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. >2 |
| AC - Flexible Current Probe | Range: 2500 A Resolution: 1 A (≤2500 A) 0.1 A (≤999.9 A) Accuracy: 3% ±5 digits (5 to 500 Hz) |
| DC | Range: 999.9 A Resolution: 0.1 A Accuracy: 2% ±5 digits |
| Voltage | |
| AC - FieldSense | Range: 1000 V Resolution: 1 V (≤1000 V) Accuracy: ≤4/0 AWG - 3% ±5 digits (45 to 66 Hz); ≥4/0 AWG - 5% ±5 digits (45 to 66 Hz) |
| AC - Test Leads | Range: 600.0 V, 1000 V Resolution: 0.1 V (≤600.0 V); 1 V (≤1000 V) Accuracy: 1% ±5 digits (20 to 500 Hz) |
| DC | Range: 600 V, 1000 V Resolution: 0.1 V (≤600 V); 1 V (≤1000 V) Accuracy: 1% ± 5 digits |
| mV DC | Range: 500 mV Resolution: 0.1 mV Accuracy: 1% ±5 digits |
| Amps Frequency | |
| Jaw | Range: 5 to 500 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger level: 5 to 10 Hz, ≥10 A; 10 to 100 Hz, ≥5 A; 100 to 500 Hz, ≥10 A |
| Flexible Current Probe | Range: 5 to 500 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger level: 5 to 20 Hz, ≥25 A; 20 to 100 Hz, ≥20 A; 100 to 500 Hz, ≥25 A |
| Other Measurements | |
| Resistance | Range: 60 kΩ, 6000 Ω, 600 Ω Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ) Accuracy: 1% ±5 digits |
| Capacitance | Range: 1000 μF Resolution: 0.1 μF (≤100 μF), 1 F (≤1000 μF) Accuracy: 1% ±4 digits |
| General Specifications | |
| General Maximum Voltage | 1000 V (between any terminal and earth ground) |
| Battery | Type: 2 x AA IEC LR6 alkaline life: 200 hours |
| Display | Dual readout |
| Automatic Power Off | 20 minutes |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) Storage: -40 to 140°F (-40 to 60°C) |
| Operating Humidity (Without Condensation) | Non condensing (<50°F [<10°C]) ≤90% RH (50 to 86°F [10 to 30°C]) ≤75% RH (86 to 104°F [30 to 40°C]) ≤45% RH (104 to 122°F [40 to 50°C]) |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C >28°C or <18°C |
| Ingress Protection | IEC 60529: IP30 (jaw closed) |
| Altitute | Operating: 6561.68' (2000 m) Storage: 39,370.1' (12,000 m) |
| Electromagnetic Compatibility (EMC) | USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| Safety | General: IEC 61010-1: Pollution degree 2 Measurement: IEC 61010-2-032: CAT III 1000 V/CAT IV 600 V; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V |
| Wireless Radio | Radio frequency certification: FCC ID: T68-FBLE IC:6627A-FBLE Frequency range: 2405 to 2480 MHz Output power: <100 mW |
| Dimensions | 10.78 x 3.38 x 1.85" (274 x 86 x 47 mm) Jaw opening: 1.34" (34 mm) Flexible current probe diameter: 0.29" (7.5 mm) Flexible current probe cable length: 5.9' (1.8 m) Rogowski coil length: 17.71" (450 mm) |
| Weight | 1 lbs (463 g) with batteries |
