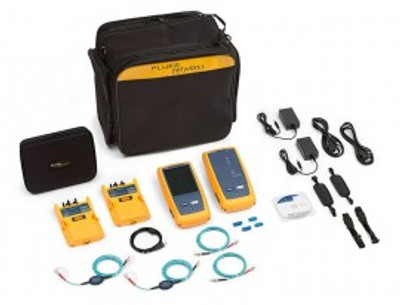

Fluke Networks CFP2-100-M-NW OffersCertiFiber Pro Optical Loss Test Kit offers a complete solution for certifying, troubleshooting, and documenting fiber optic network cabling. In addition, these fully-featured set of testers are designed to accelerate every step of the fiber certification process.
Enabling the CertiFiber Pro Optical Loss Test Set to be future-ready, the Versiv platform pairs with the OptiFiber Pro module, providing merged Tier 1 (Basic)/Tier 2 (Extended) testing and reporting. Moreover, copper certification, Wi-Fi analysis, and Ethernet troubleshooting modules are available. Analyze test results and generate professional test reports using LinkWare Management Software.
Features
Applications
| Power Meter | |
| Input Connector | Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
| Detector Type | InGaAs |
| Wavelengths | 850, 1300, 1310, 1550 nm |
| Power Measurement | Range: 0 to -65 dBm (850 nm), 0 to -70 dBm (all other wavelengths)Uncertainty: <±5% ±32 pW |
| Measurement Linearity | <±0.1 dB |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 and 5 GHz) |
| Loss/Length | |
| Testing Speeds (excludes referencing times) | Smart Remote mode: <3 seconds (2 wavelengths, one direction, auto wavelength detection)Far End Source mode: ≤2 seconds (2 wavelengths, one direction auto wavelength detection)Loopback mode: <2 seconds (2 wavelengths, one direction auto wavelength detection) |
| Input/Output Connectors | Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
| Launch Condition | Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 |
| Fiber Types Tested | 50/125 μm or 62.5/125 μm |
| Source Type and Wavelengths | Source: LED850 ±30 nm, 1300 ±20 nm |
| Measurement | Maximum length: 39,370' (12,000 m)Length accuracy: ±4.92' (1.5 m) plus ±1% of length |
| Output Power | Nominal: ≥-24 dBm with EF-TRCStability: ±0.05 dB over 8 hours ±0.03 dB over 15 minutes |
| Visual Fault Locator (VFL) | |
| Output Power | >-5 dBm | <0 dBm | SMF-28 singlemode fiber | continuous wave | SC/UPC connector |
| Operating Wavelength | 650 nm nominal |
| Output Modes | Continuous wavePulsed mode (2 to 3 Hz blink frequency) |
| Connector Adapter | 2.5 mm universal |
| Laser Safety | Class II CDRHOver operating temperature range |
| General Specifications | |
| Environmental Conditions | Operating temperature: 14 to 113°F (-10 to 45°C)Storage temperature: 14 to 140°F (-10 to 60°C)Operating relative humidity (% RH without condensation): 0 to 90%, 32 to 95°F (0 to 35°C) | 0 to 70%, 95 to 113°F (35 to 45°C) |
| Vibration | Random, 2 g, 5 to 500 Hz |
| Shock | 3.28' (1 m) drop test with and without module and adapters |
| Altitude | Operating: 13,123' (4000 m)Storage: 39,370' (12,000 m) |
| Pollution Degree | 2 |
| Safety | CSA C22.2 No. 1010.1: 1992EN 61010-1 1st Edition + Amendments 1, 2 |
| EMC | EN 61326–1 |
