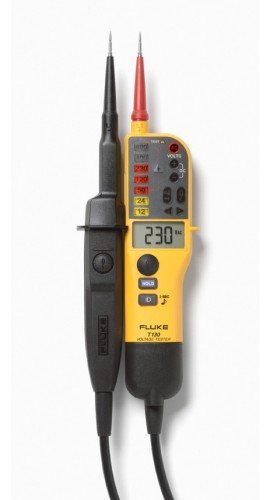

Fluke T130 Two-pole Voltage and Continuity Tester, 12 to 690 V AC/DC

No reviews yet Write a Review
$193.51
SKU:
T130
Availability:
1 in Stock
5 customers are viewing this product

Fluke T130 Two-pole Voltage and Continuity Tester, 12 to 690 V AC/DC

$193.51

Availability: 1 in Stock

Fluke T130 Offers

Features

  • LED indication Range: 12 to 690 V AC/DC
  • V display: multiple LED bargraph
  • Independent ELV indicator LED, indicates if >50 V AC / 120 V DC is present even in the event of no battery power or main circuit failure
  • CAT III 690 V / CAT IV 600 V
  • Rugged, double-insulated wire
  • Fixed impedance ~200 kΩ (~3.5 mA at 690 V)
  • Switchable load by 2 pushbuttons (30 mA at 230 V)
  • Vibration during load (when 2 switchable load pushbuttons are pushed)
  • Single-pole phase test (also operates with gloves)
  • Rotary field direction (also operates with gloves)
  • Continuity test and diode Test
  • Torch
  • Beeper for continuity/phase/aCV (switchable)
  • Slim metal probe tips (threaded base for included tip accessories)
  • Probe tip protector cap (secure storage for the docked probes)
  • 4 mm ∅ probe tip thickness extensions (for better fit in outlets)
  • 19 mm probe tip distance when docked
  • Probe tip sheath


Fluke T130 Specifications

Specifications

LEDs
Voltage Range12 V to 690 V AC/DC
Resolution±12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V
ToleranceComplies with EN 61243-3:2014
Frequency Range0 / 40 Hz to 400 Hz
Response Time≤0.5 second
Auto Power On≥12 V AC/DC
LCD
Voltage Range6 to 690 V AC/DC
Resolution±1 V
Tolerance±(3% rdg + 5 digits)
Frequency Range0/40 to 400 Hz
Response Time≤1 second
Autopower On≥6 V AC/DC
General and Environmental Specifications
Voltage DetectionAutomatic
Polarity DetectionFull range
Range DetectionAutomatic
Internal Basic Load Impedance Peak CurrentMaximum 3.5 mA at 690 V 200 kΩ / Is <3.5 mA (no RCD tripping)
Operation Time30 seconds
Recovery Time240 seconds
Switchable Load~7 kΩ Peak Current: Is (load) = 150 mA RCD Tripping: I~30 mA @ 230 V
Continuity Test0 to 400 kΩ Accuracy: nominal resistance + 50% Test current: ≤5 µA
Single-Pole Phase Test100 to 690 V AC
Rotary Field IndicationVoltage Range (LEDs): 100 to 690 V (phase to earth) Frequency Range: 50 to 60 Hz
EnvironmentalPollution degree: 2 Protection degree: IP64
Operating Temperature5 to 113°F (-15 to 45 °C)
Storage Temperature- 40 to 140°F (-20 to 60 °C)
Humidity85% RH maximum
Altitude6561' (2000 m)
Vibrationrefer to EN61243-3
Power Supply2 x 1.5 V Micro / LR03 / AAA
Power Consumption50 mA maximum /~250 mW
Language SupportCzech, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
Dimensions10 x 3 x 1.3" (255 x 78 x 35 mm)
Weight0.59 lbs (0.27 kg)
Safety EN61243-3:2014Transporting goods: VBG 1, § 35 Overvoltage protection: 690 V AC/DC Measurement category: CAT III 690 V, CAT IV 600 V


What's included with the Fluke T130
  • Fluke T130 Two-pole Voltage and Continuity Tester, 12 to 690 V AC/DC
