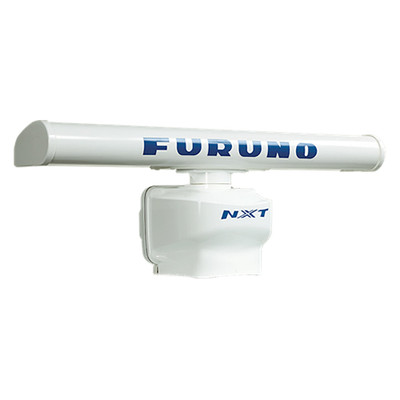

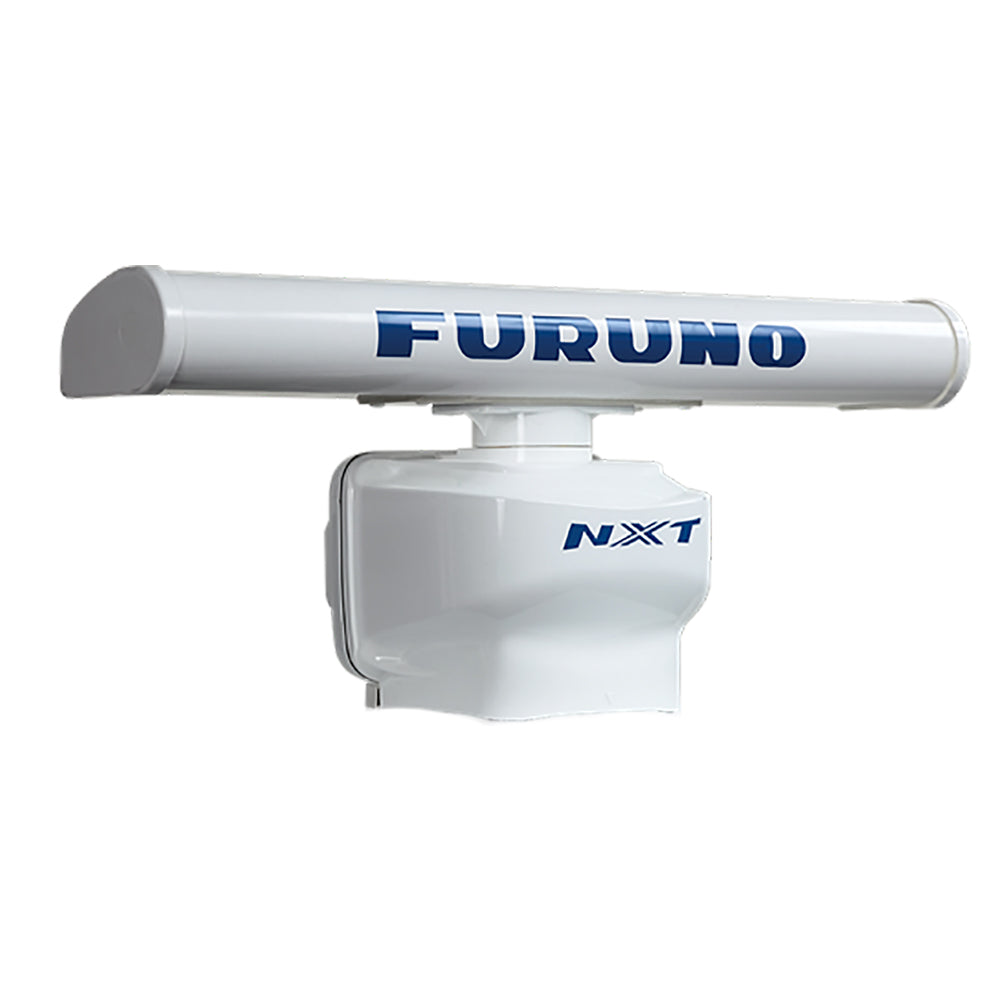

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array

No reviews yet Write a Review
$12,052.32
SKU:
DRS6ANXT/3
UPC:
DRS6ANXT/3
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array

$12,052.32

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array Product Description

DRS6ANXT Solid State Doppler Radar with Pedestal, 10M Cable & 3.5' Open Array

The DRS6ANXT leverages the same pulse compression and Doppler frequency shift sensing technologies featured in the DRS4DNXT, as well as offering the same simplified connection with TZtouch and TZtouch2. Additionally, the DRS6ANXT offers direct connection to 12VDC power for cable runs up to 10 meters (standard supply), without the need for an external power supply. With the introduction of the new DRS6ANXT, your recreational and commercial customers now have Furuno Solid State Radar options, ranging from a 24" Radome (DRS4DNXT) to a 6-foot Open Array (DRS6ANXT), providing the perfect NXT generation solution for vessels of all shapes and sizes.

Target Analyzer
Target Analyzer may be one of the most innovative and revolutionary features available in the NXT family, automatically changing the color of targets approaching your boat to clearly show potential hazards. Green echoes represent stationary targets, land, or approaching targets moving at a velocity of less than 3 knots. Echoes dynamically turn red when targets are approaching your vessel at a speed of 3 knots or faster. It works the same when you are following another vessel. If the target is getting closer at a speed of 3 knots or more, the echo will be depicted in red. Incredibly, Target Analyzer works independently of one's own ship speed!

Target Tracking
Interpreting and tracking threats is easier than ever with NXT Radars. Using Furuno's advanced Doppler technology, NXT Radars acquire and track targets in virtually every sweep. Almost instantly, you'll see the target's speed and course vector, and if the target is hazardous, it will also be displayed in red, making it easier to identify and predict its course. The NXT Radar's incredible ARPA signal processor tracks and displays up to 100 targets! The entire target theater can be viewed, monitored, and tracked simultaneously, at any range. For an even more detailed display, target trails and Furuno's unique True Trail feature can be utilized, allowing you to graphically see the direction in which a target is moving, independent of your own vessel's motion.

Bird Mode
Bird Mode is another standard feature found in NXT Radars. With a single selection on the MFD, the Radar automatically adjusts settings for echo enhancement to help locate birds. Of course, finding birds is an important step to zeroing-in on the bite.

RezBoost

The resolution of NXT Radars is already impressive, but we've taken it a step further by incorporating our exclusive RezBoost beam sharpening technology. With RezBoost set to maximum, NXT Radars offer enhanced target separation, in addition to its impressive long range target detection.

Specifications:

  • Antenna Size: 3.5 ft
  • Cable: 15M
  • Antenna Type: Open Array
  • Band: X-Band
  • Beam Width: 2.2 degrees
  • Power Usage: 12-24 VDC
  • Power Output: 25 W
  • Range: 72 nm


The DRS6ANXT solid-state Doppler radar DRS6ANXT with base, 10M cable and 3.5' open array utilizes the same pulse compression and Doppler frequency shift sensing technology that DRS4DNXT has, and...

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array

Furuno
How to describe Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array

Furuno

Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.

How to describe Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array

The DRS6ANXT solid-state Doppler radar DRS6ANXT with base, 10M cable and 3.5' open array utilizes the same pulse compression and Doppler frequency shift sensing technology that DRS4DNXT has, and...
  • The DRS6ANXT is a complete radar system with a pedestal and 10M cable.
  • The open array provides the same Doppler frequency shift sensing technologies featured in the DRS4DNXT, while also offering simplified installation.
  • This radar system is designed for long range detection of moving targets such as vehicles, people, and animals.
  • The DRS6ANXT features a pedestal that can be adjusted to the height of the user.
  • This radar is perfect for those who need a radar with a compact design.
  • The DRS6ANXT includes a 10 meter cable and an open array antennae, so it's perfect for those who have limited space or prefer to mount their antennae on the wall.
  • The DRS6ANXT is a cost-effective option for those looking for a solid state radar with pedestal, 10M cable and 3.5' open array.
  • It includes the same pulse compression and Doppler frequency shift sensing technologies as the DRS4DNXT, as well as offering the same simplified operation and connectivity options.
  • The DRS6ANXT is a great choice for those looking to buy a solid state radar with pedestal, 10M cable and 3.5' open array without breaking the bank.


Buy with the best price Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array for only $6330 from NVN Marine! Same day fast and free shipping before 3pm.

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 10M Cable & 3.5' Open Array Technical Specifications

Type:

Marine Navigation & Instruments | Radars

Vendor:

Furuno

Weight:

58.05 lb
