Apollo Marine 6 Channel Amplifier - 1800W
Amplify the moment with an Apollo marine amplifier designed specifically for use with your Fusion DSP-enabled marine stereo and Fusion speakers.
This powerful and efficient 6 channel amplifier is the difference between hearing the music and feeling it. With an impressive 150-watt RMS per channel (at 4 ohms), this amplifier can power up to six pairs of speakers or four pairs of speakers and one subwoofer. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link app on a compatible smartphone).
FUSION Apollo MS-AP61800
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

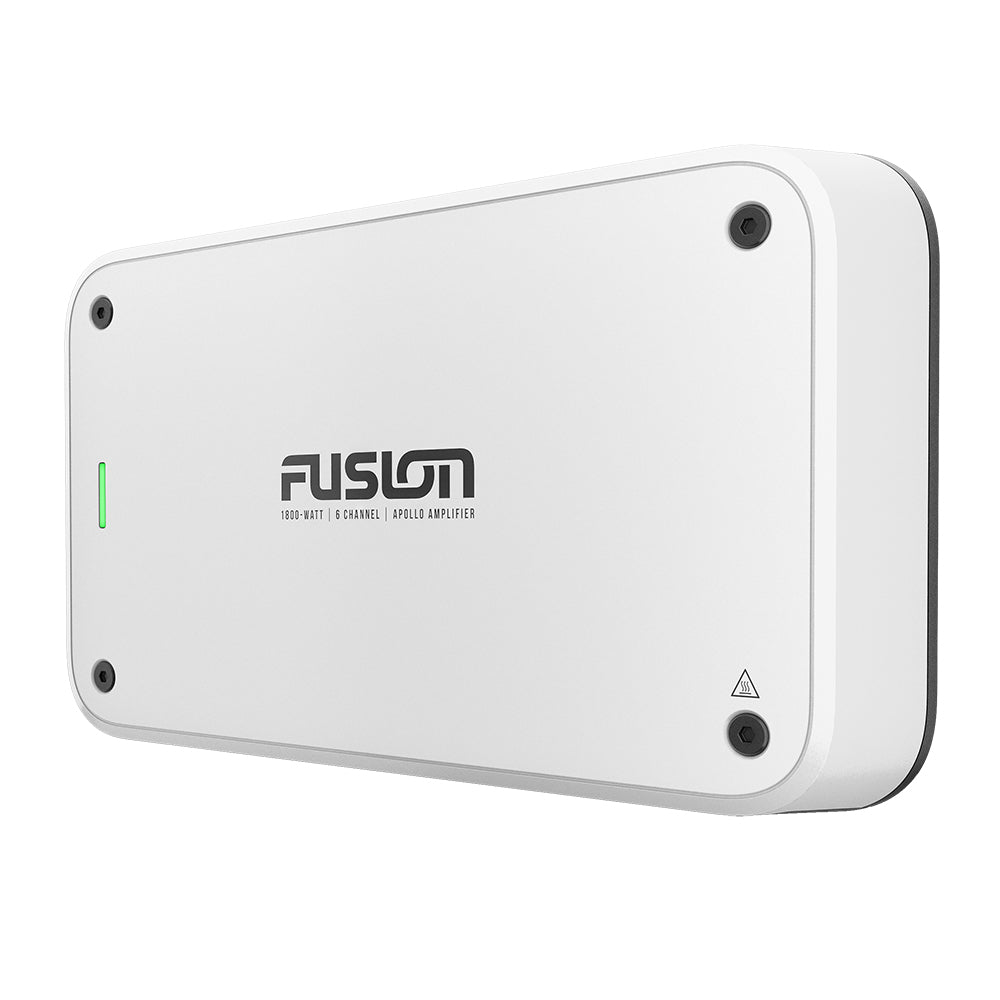

Fusion Apollo MS-AP61800 6 Channel Marine Amplifier (150-watt RMS per Channel)
Model: 010-02284-60The Apollo amplifiers are designed to produce impressive power with less drain on your battery.
These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

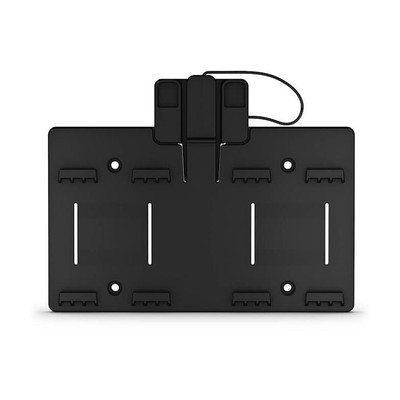

Easily install the amplifiers on board with the included mounting brackets.
Easily install the amplifiers on board with the included mounting brackets.
The amplifiers circuit board has been specially coated to provide extra protection from the marine elements.
You can connect up to two speakers per channel, increasing setup options.
The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.
This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.
1 Amplifiers are designed exclusively for use with Fusion DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and RA210) and Fusion speakers
2 Requires setup using the Fusion-Link app on a compatible smartphone
| Physical dimensions without bracket (LxWxH) | 11.69" x 7.06" x 1.75" (297 x 180 x 45 mm) |
| Physical dimensions with bracket (LxWxH) | 11.69" x 7.06" x 2.13" (297 x 180 x 50 mm) |
| Weight | 5.95 lb (2.7 kg) |
| Water Rating | IPX2 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 ohm (watts) | 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD |
| Total rated power output - 4 ohm Bridged (watts) | 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD |
| Peak power (watts) | 1800 watts |
| Input sensitivity | 1.3 V RMS |
| Input impedance | 22k ohm |
| Operating voltage | 10.8 V - 16 V DC |
| Current consumption (StandBy) | < 5 mA @ 14.4 V input |
| Current consumption (Idle) | < 1.15 A @ 14.4 V input |
| Current consumption (Max) | 78 A |
| Fuse rating | 125 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Type: |
Entertainment | Amplifiers |
|---|---|
| Vendor: |
FUSION |
| Weight: |
8.35 lb |
| Bridgeable: |
Yes |
| Channels - Available: |
6 |
| Waterproof Rating: |
Splashproof |
| Watts: |
1800 |
| Categories v2: |
Entertainment | Amplifiers |
| Category v1: |
MARINE AUDIO / VIDEO |
| UPC: |
753759232108 |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
