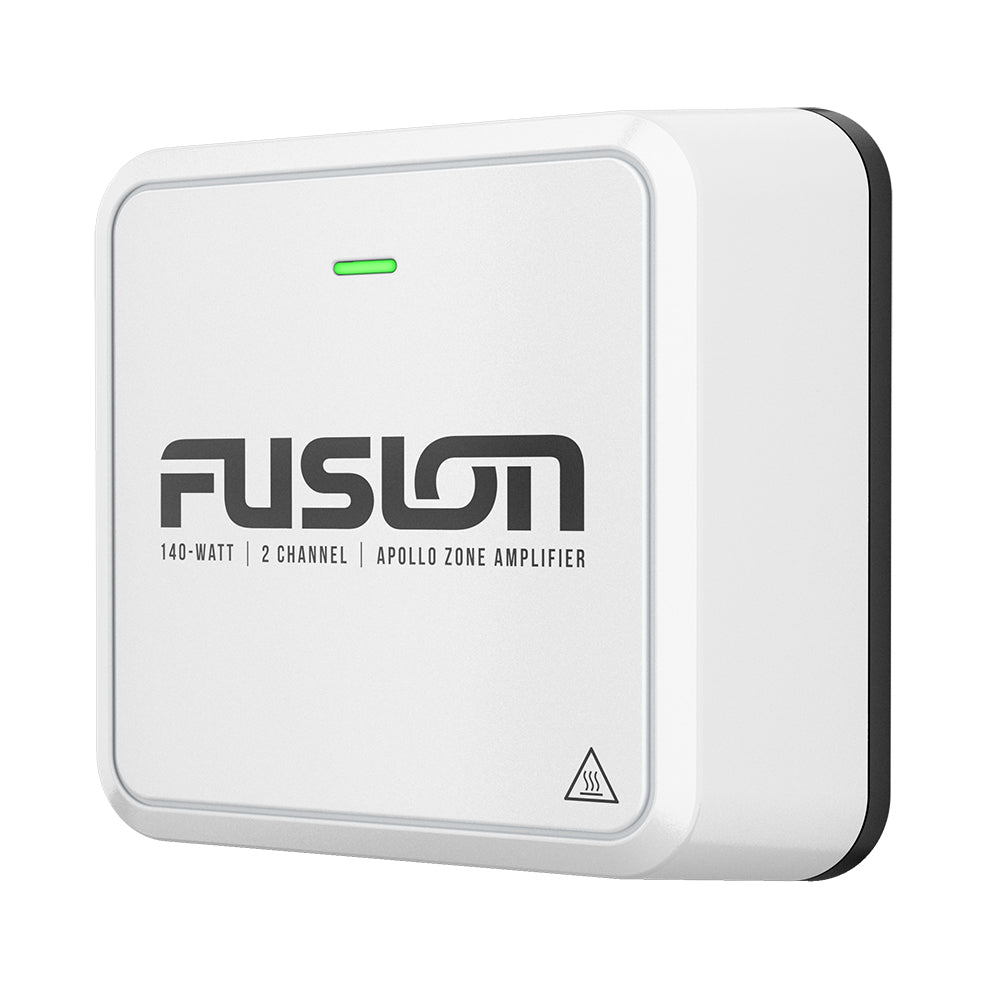

Apollo Marine Zone Amplifier - 140W
Amplify the moment with an Apollo marine amplifier designed specifically for use with your FUSION DSP-enabled marine stereo and Fusion speakers.
This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. With 20-watt RMS per channel (at 4 ohms), this 2 channel amplifier allows you to add an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link app on a compatible smartphone).
FUSION Apollo AP-DA214
Features:
Technical Specifications:
In the Box:
*Sold as an Individual
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Fusion® Apollo AP-DA214 Marine Amplifiers, Zone Marine Amplifier
Model: 010-02569-00The amplifiers circuit board has been specially coated to provide extra protection from the marine elements.
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

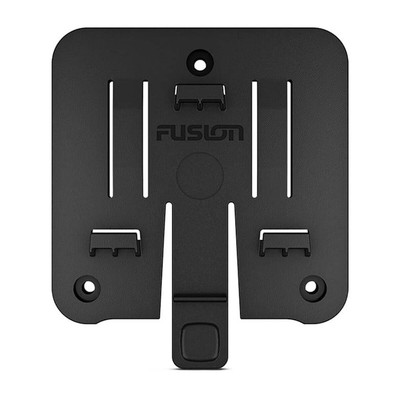

Easily install the amplifiers on board with the included mounting brackets.
The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.
The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. Its compatible with 12- and 24-volt electrical systems.
Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required.
Specifications| Physical dimensions without bracket (LxWxH) | 3.94" x 3.94" x 1.57" (100 x 100 x 40 mm) |
| Physical dimensions with bracket (LxWxH) | 3.94" x 4.53" x 1.89" (100 x 115 x 48 mm) |
| Weight | 1.01 lb (460 g) |
| Water Rating | IPX7 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 ohm (watts) | 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD |
| Total rated power output - 4 ohm Bridged (watts) | NA |
| Peak power (watts) | 140 watts |
| Input sensitivity | 0.45 V RMS |
| Input impedance | 9k Ohm |
| Operating voltage | 10.8 V - 32 V DC |
| Current consumption (StandBy) | < 1 mA @ 14.4 V input |
| Current consumption (Idle) | < 0.04 A @ 14.4 V input |
| Current consumption (Max) | 10 A |
| Fuse rating | 16 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Type: |
Entertainment | Amplifiers |
|---|---|
| Vendor: |
FUSION |
| Weight: |
1.55 lb |
| Bridgeable: |
No |
| Channels - Available: |
2 |
| Waterproof Rating: |
Splashproof |
| Watts: |
140 |
| Categories v2: |
Entertainment | Amplifiers |
| Category v1: |
MARINE AUDIO / VIDEO |
| UPC: |
753759269753 |
| Product Installation: |
Download PDF |
