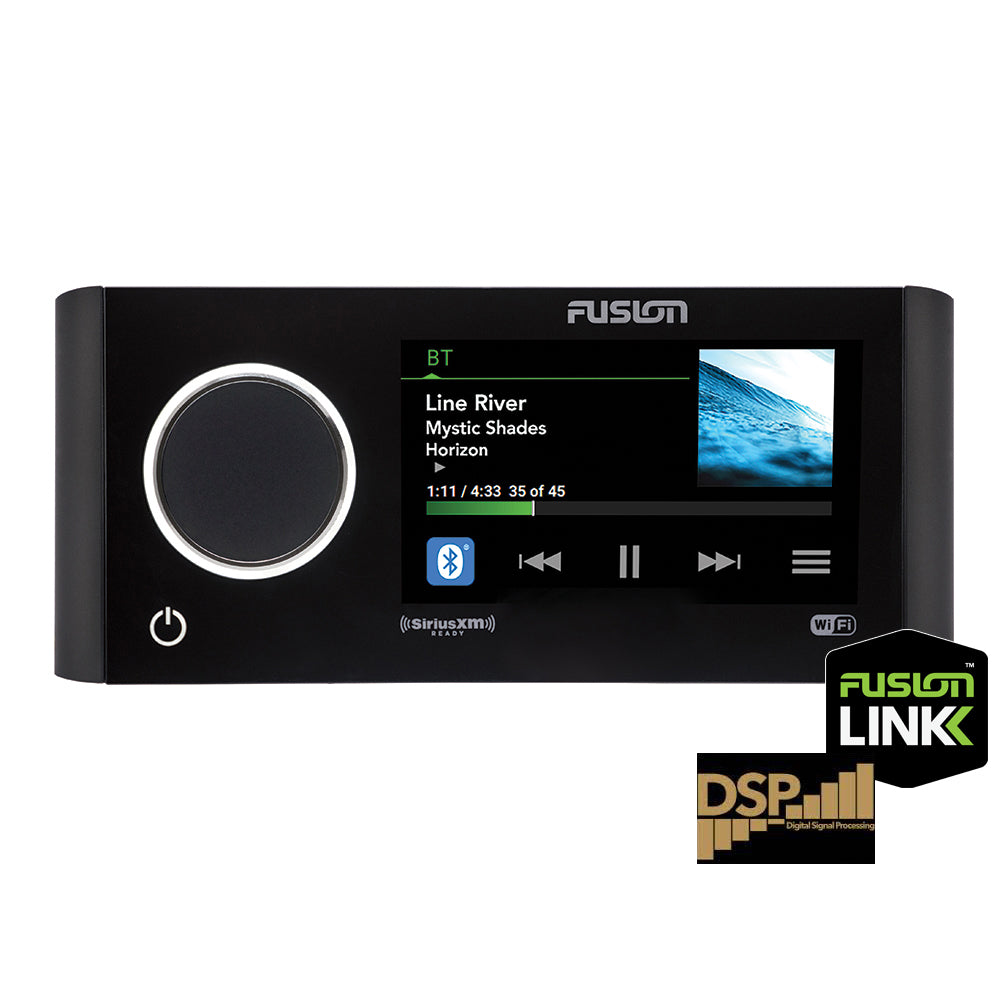

Apollo MS-RA770 Touchscreen AM/FM/BT/SiriusXM Stereo - 4 Zone w/DSP
The world's first touchscreen marine stereo with Apple AirPlay 2 and built-in Wi-Fi, the Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design including Fusion's Digital Signal Processing, enhanced PartyBus-Network capabilities, over-the-air software updates, a one-piece glass display and more source options than ever before, including advanced SiriusXM features. From the kick drum to the eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of your boat.
Built on the True-Marine design philosophy from Fusion, the Apollo RA770 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
Digital Signal Processing (DSP) A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in every environment. Precisely calculated loudness curves optimized for the human ear ensure quality, full range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, a thing of the past. Using environmental information and acoustically designed Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season.
PartyBus Network Enjoy the freedom of musical choice with the Apollo Series and Fusion's PartyBus-Network. We have introduced a new intuitive user experience allowing for easy navigation of your entire boat's audio network, making control of your audio and sources a seamless experience. Key functionalities include - Stereo grouping, volume control, power options and home zone technology.
NMEA 2000 Ready for connection and control from any supported Multi-Function Display - The MS-RA770 is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world's leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA770 with a supported chartplotter or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA770 will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones.
Fusion-Link Makes control of your stereo easier than ever. Quickly find your favorite song, tune in to the sports or turn up the volume all from your partnered multifunction display (MFD), compatible smartphone, Garmin Handheld or Garmin watch. With the app installed, you can enjoy source navigation and track selection from wherever you are on your boat. The Apollo Series is intelligently simple and always up to date, thanks to the over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.
Multi-Zone Control With four independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone.
Over-The-Air Software Updates Over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.
Features:
Technical Specifications:
In the Box:
â SiriusXM Promotion - Purchase a SiriusXM Receiever (sold separately) and get a Rebate for 3 Free Months SiriusXM Service with Subscription
*Sold as an Individual
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Fusion MS--RA770 Apollo Marine Entertainment System With Built-In Wi-Fi
Model: 010-01905-00The Apollo Series combines engineering and design never seen before in the marine industry, forever changing the face of marine audio entertainment and becoming the standard by which all others will be shaped.
he worlds first touchscreen marine stereo with built-in Wi-Fi, the Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design including Fusions Digital Signal Processing, PartyBus, over-the-air software updates, a one-piece glass display and more source options than ever before. From the kick drum to the eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of your boat. The future of marine audio entertainment has arrived.
Worlds First Marine Wi-Fi Stereo: High quality audio streaming is now available via Wi-Fi, delivering a higher data transfer rate in comparison with Bluetooth. Enjoy perfectly synced music throughout your vessel by wirelessly connecting multiple Apollo stereos via PartyBus.
Digital Signal Processing (DSP): A technically superior listening experience made simple, Fusion DSP produces superior sound quality in every environment. Precisely calculated loudness curves optimized for the human ear ensure quality, full range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, at any volume level, a thing of the past. Using environmental information and customized Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season.
Setting up your DSP profiles is made simple with the free Fusion-Link app, or with a custom-made Fusion-Link PC app for OEM boat builders. With just a few clicks, you can set up the preconfigured DSP profile once and get back to enjoying what you love on the water, while listening to high quality audio customized for your ears and the environment.
Enjoy the freedom of musical choice with the Apollo Series and Fusion-PartyBus. With Party Mode, Personal Mode, and finally the ability to switch between the two without disrupting the audio in other areas of the vessel, PartyBus is Fusions audio distribution network of the future.
The future of marine audio entertainment has arrived in the Apollo RA770 with its 4.3" LCD color touchscreen display. Simply tap the screen to pause and play, or swipe through your playlist to your favorite song fiddling around to locate the right button is now a thing of the past.
The Apollo Series is intelligently simple and always up to date, thanks to the over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.
The Apollo RA770 features more source options than ever before, with Bluetooth, UPnP, Optical Audio, advanced SiriusXM features and DAB+ radio available, AM/FM radio, AUX and USB connections ready at your fingertips.
Built on Fusions True-Marine design philosophy, the Apollo RA770 has an impressive IPX7 rated water resistant front panel, and has been tested to a high level for protection against salt fog, temperature, vibration and UV protection.
The industry standard protocol for on-water audio integration and control, Fusion-Link enables control of your entertainment directly from partnered marine Multi-Function Displays, compatible Apple or Android devices, and Garmin watches. With multiple control options, no matter what you are doing on your boat, you can always be in control of your audio entertainment.
Four independent audio zones are available for a customized listening experience across your vessel, each with advanced localized menu controls including volume limits, zone naming, disabling zones and more. Note: Subwoofer and full range line outs require additional amplification.
Specifications| Display | 4.3" capacitive touch glass LCD color display |
| Sources | AM/FM/ Bluetooth / Wi-Fi audio streaming / PartyBus / digital optical input / USB audio / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM connect vehicle tuner) |
| Digital Signal Processing (DSP) | Yes |
| Speaker Presets (easy to tune) | Yes |
| Fusion-Link Control (Wireless) | Yes |
| PartyBus Technology | Yes (receive and broadcast - wired or wirelessly) |
| Bluetooth Wireless Technology | Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols) |
| SiriusXM-Ready | Yes |
| Wi-Fi | Yes |
| ANT Technology | Yes |
| NMEA 2000 (Control via MFD - Fusion-Link) | Yes |
| Works with NRX Remotes | Yes |
| Digital Optical Input (SPDIF) | Yes |
| Fits DIN Cut-Out | Yes |
| Water Resistance (IPX rating) | IPx7 from the front panel when installed correctly. |
| Internal Amplifier | Yes |
| Peak Power | 280 W max |
| Multi-Language User Interface | English / French / German / Spanish / Dutch / Italian |
| Auxiliary Inputs | 2 x RCA Inputs (AUX1, AUX2) |
| SPDIF Optical Audio-In | One SPDIF port - supports TV audio output |
| Ethernet | One Ethernet port |
| USB 2.0 Port | One USB 2.0 port (for phone charging / media playback) |
| SiriusXM | One SiriusXM port (requires optional SiriusXM connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-Out (Left, Right and Subwoofer) | 4 zones |
| Operating Voltage | +10.8 - 16V dc |
| DAB+ Ready | Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported |
| Line Out | 4 (1 x L + R per zone. Requires external amplification) |
| Subwoofer Out | 4 (1 per zone. Requires external amplification) |
| Software Updates | Over-the-air software updates via the free Fusion-Link app or USB |
| Type: |
Entertainment | Stereos |
|---|---|
| Vendor: |
FUSION |
| Weight: |
3.6 lb |
| Cover Included: |
Yes |
| Wireless Remote Capable: |
Yes |
| SiriusXM Ready: |
Yes |
| Wired Remote Capable: |
Yes |
| Power - Output (Watts): |
280 |
| Color: |
Black |
| Auxiliary Input: |
Yes |
| NMEA 2000: |
Yes |
| Bluetooth: |
Yes |
| RCA Output: |
Yes |
| RCA Input: |
Yes |
| Categories v2: |
Entertainment | Stereos |
| Category v1: |
MARINE AUDIO / VIDEO |
| UPC: |
753759198251 |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
