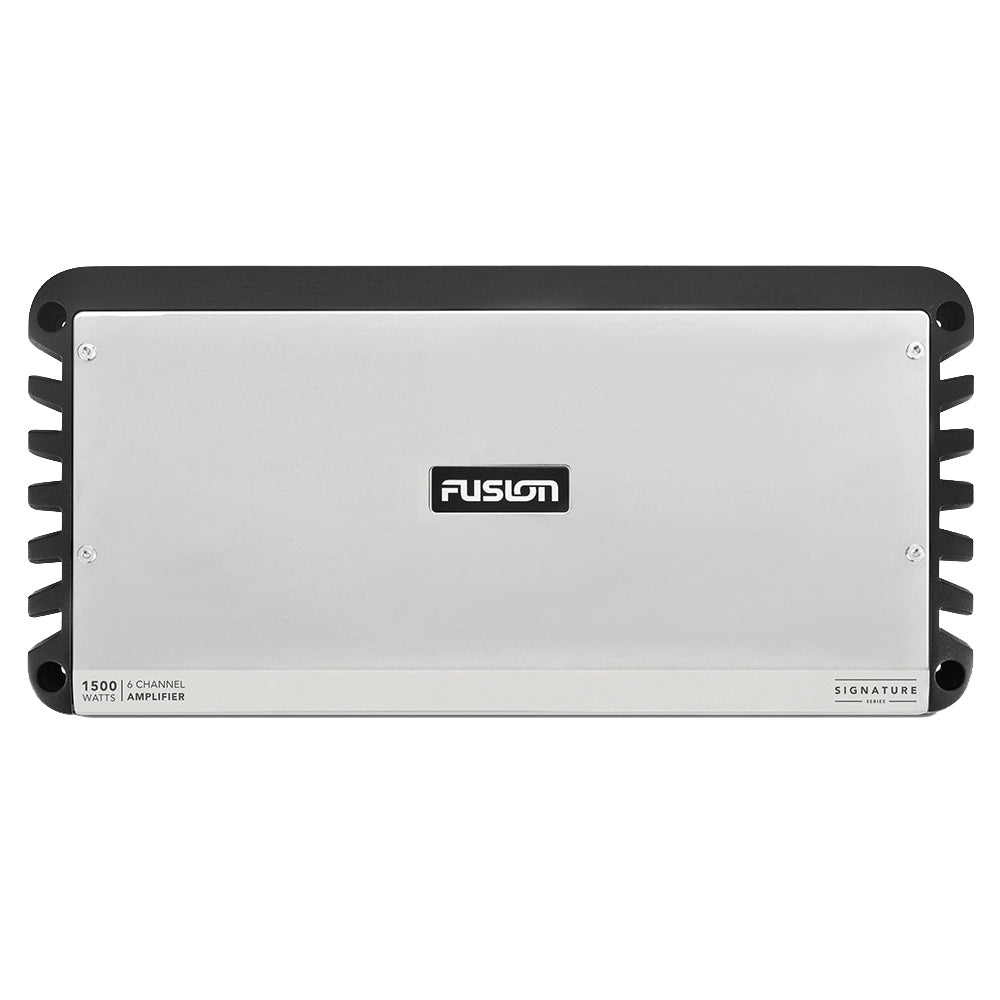

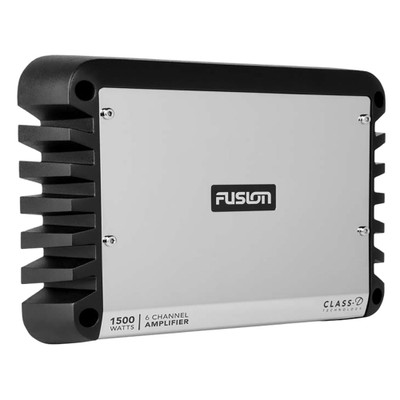

FUSION SG-24DA61500 Signature Series 1500W - 6 Channel Amplifier - 24V

Type:	Entertainment \| Amplifiers
Vendor:	FUSION
Weight:	13.3 lb
Watts:	1500
Waterproof Rating:	Splashproof
Channels - Available:	6
Bridgeable:	Yes
Categories v2:	Entertainment \| Amplifiers
Category v1:	MARINE AUDIO / VIDEO
UPC:	753759268497
Product Manual:	Download PDF

✋

Section 01

Order Cancellation Rights

You are entitled to cancel your Order within 30 days of receipt without providing a reason, subject to the processing fee structure described below.

The cancellation deadline is 30 days from the date on which you received the Goods, or on which a third party appointed by you (other than the carrier) takes possession of the delivered product.

To exercise your cancellation right, notify us with a clear written statement by:

Email: info@equiptestpro.com
Online form: equiptestpro.com/contact-us

💳

Section 02

Cancellation Processing Fees

The following fee structure applies to all cancellations. Please review carefully before requesting a cancellation.

Customer-Initiated

10%

A processing fee of 10% of the total order value will be withheld from your refund to cover payment processing, handling, and administrative costs.

Company-Initiated (Item Unavailable)

$0

If we cancel your order due to item unavailability, no processing fee will be withheld. You receive a full refund of the amount paid.

Refunds will be issued using the same payment method as the original purchase. No additional fees beyond those described above will be applied.

✅

Section 03

Conditions for Returns

To be eligible for a return, all of the following conditions must be met:

The Goods were purchased within the last 30 days
The Goods are in their original, undamaged packaging
The Goods are unused and unaltered from the condition received
A valid receipt or proof of purchase accompanies the return

Sale Items: Only regular-priced Goods are eligible for a refund. Items purchased on sale or at a discounted price cannot be refunded. This exclusion may not apply where prohibited by applicable law.

We reserve the right to refuse returns of any merchandise that does not meet the above conditions, at our sole discretion.

🚫

Section 04

Non-Returnable Goods

The following items are not eligible for return under any circumstances:

Goods made to your specifications or clearly personalized
Goods that by their nature are not suitable for return, deteriorate rapidly, or where the expiry date has passed
Goods not suitable for return due to health protection or hygiene reasons that have been unsealed after delivery
Goods that, after delivery, have become inseparably mixed with other items by their nature
Goods purchased on sale or at a promotional discount

📬

Section 05

How to Return Goods

You are responsible for the cost and risk of returning Goods to us. Before sending any items, please contact us at info@equiptestpro.com to obtain the return shipping address.

Important: We strongly recommend using an insured and trackable mail service. We cannot be held responsible for Goods damaged or lost during return shipment, and we are unable to issue a refund without confirmed receipt of the returned Goods or verifiable proof of delivery.

⏱

Section 06

Refund Timeline

You should expect to receive your refund within four (4) weeks of delivering your return package to the shipper. In many cases, refunds are processed sooner. The timeline breaks down as follows:

1

Transit to Us 5 to 10 business days for us to receive your return from the shipper.

2

Return Processing 3 to 5 business days to inspect and process your return once received.

3

Bank Processing 5 to 10 business days for your bank to post the refund to your account.

We will process refunds no later than 14 days from the day we receive the returned Goods, using the same payment method as your original purchase.

🎁

Section 07

Gift Returns

If the Goods were marked as a gift at the time of purchase and shipped directly to you, a gift credit equal to the return value (less any applicable processing fee) will be issued. Once the returned product is received and inspected, a gift certificate will be mailed to you.

If the Goods were not marked as a gift at purchase, or if the gift giver had the order shipped to themselves first, the refund will be issued to the original purchaser.

Frequency Response	10 Hz to 40 kHz (-3dB @ 4 Ohm rated power)
Peak Power Output	1500 W
Rated Power Output (4 Ohm)	100 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (2 Ohm)	140 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (4 Ohm Bridged)	280 W rms x 3 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Input Sensitivity	0.3 V to 8 V rms, user adjustable
Input Impedance	7k Ohm nominal
High-Pass/Low-Pass Full Range Filter	Yes, user selectable
Filter Cross-Over Frequency	32 Hz to 320 Hz, user adjustable
Bass-Boost	0 to 9 dB, user adjustable (zone 3 only)
Operating Voltage	21.6 V to 32 V dc
Remote Switch-On	Yes - 6 V threshold
Current Consumption (Standby)	< 1 mA @ 28.8 V input
Current Consumption (Idle)	< 1.25 A @ 28.8 V input
Current Consumption (Max)	35 A @ 28.8 V input
Fuse Rating	3 x 20 A ATC Blade-Type (SAE J1171 Compliant)
Protection Circuits	Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit
Operating Temperature Range	0 to 50°C (32 to 122°F)
Ingress Protection Rating	Dry area installation only
Dimensions	420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9-16" (L) x 8-1/4" (W) x 2-1/4" (H)
Weight	5.15 kg or 11.35 lb with cover
Warranty	3 years

Frequency Response	10 Hz to 40 kHz (-3dB @ 4 Ohm rated power)
Peak Power Output	1500 W
Rated Power Output (4 Ohm)	100 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (2 Ohm)	140 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (4 Ohm Bridged)	280 W rms x 3 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Input Sensitivity	0.3 V to 8 V rms, user adjustable
Input Impedance	7k Ohm nominal
High-Pass/Low-Pass Full Range Filter	Yes, user selectable
Filter Cross-Over Frequency	32 Hz to 320 Hz, user adjustable
Bass-Boost	0 to 9 dB, user adjustable (zone 3 only)
Operating Voltage	21.6 V to 32 V dc
Remote Switch-On	Yes - 6 V threshold
Current Consumption (Standby)	< 1 mA @ 28.8 V input
Current Consumption (Idle)	< 1.25 A @ 28.8 V input
Current Consumption (Max)	35 A @ 28.8 V input
Fuse Rating	3 x 20 A ATC Blade-Type (SAE J1171 Compliant)
Protection Circuits	Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit
Operating Temperature Range	0 to 50°C (32 to 122°F)
Ingress Protection Rating	Dry area installation only
Dimensions	420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9-16" (L) x 8-1/4" (W) x 2-1/4" (H)
Weight	5.15 kg or 11.35 lb with cover
Warranty	3 years
