SG-DA8200 Signature Series 2000W - 8 Channel Amp
Bring your music to life with our range of powerful Signature Series amplifiers, designed to enhance any serious on-board audio system.
CLASS-D AMPLIFIER TECHNOLOGY
The highly efficient Class-D amplifier design ensures low current draw from the battery whilst delivering increased power to the connected speakers and/or subwoofers. Taking your audio entertainment experience to a whole new level, the Signature Series amplifiers are built for high performance.
RIGID ALUMINIUM ALLOY HEAT SINK
Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink. This creates greater dissipation of heat and unquestionable efficiency without compromising the sleek form factor.
MARINE READY DESIGN
The Signature Series amplifiers are designed specifically for marine use, with conformal coated PCBs to provide extra protection from the marine elements. This extends the products' lives and ensures that the amplifiers will continue to perform season after season on board.
STAINLESS MIRROR FINISH
The stunning stainless steel cover conceals all cable connections and tuning controls for a discreet yet undeniably attractive finish that will complement any installation. The stainless steel design also ensures that your Signature Series amplifier will resist rust and corrosion, extending the product life while maintaining a clean, tidy appearance.
TRUE-MARINE PHILOSOPHY
Fusion's True-Marine design philosophy stems from our experience confronting the harsh marine environment. By designing and engineering from the ground up specifically for real world boating applications, our customers are assured that the equipment they fit into their vessel will deliver quality entertainment season after season.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

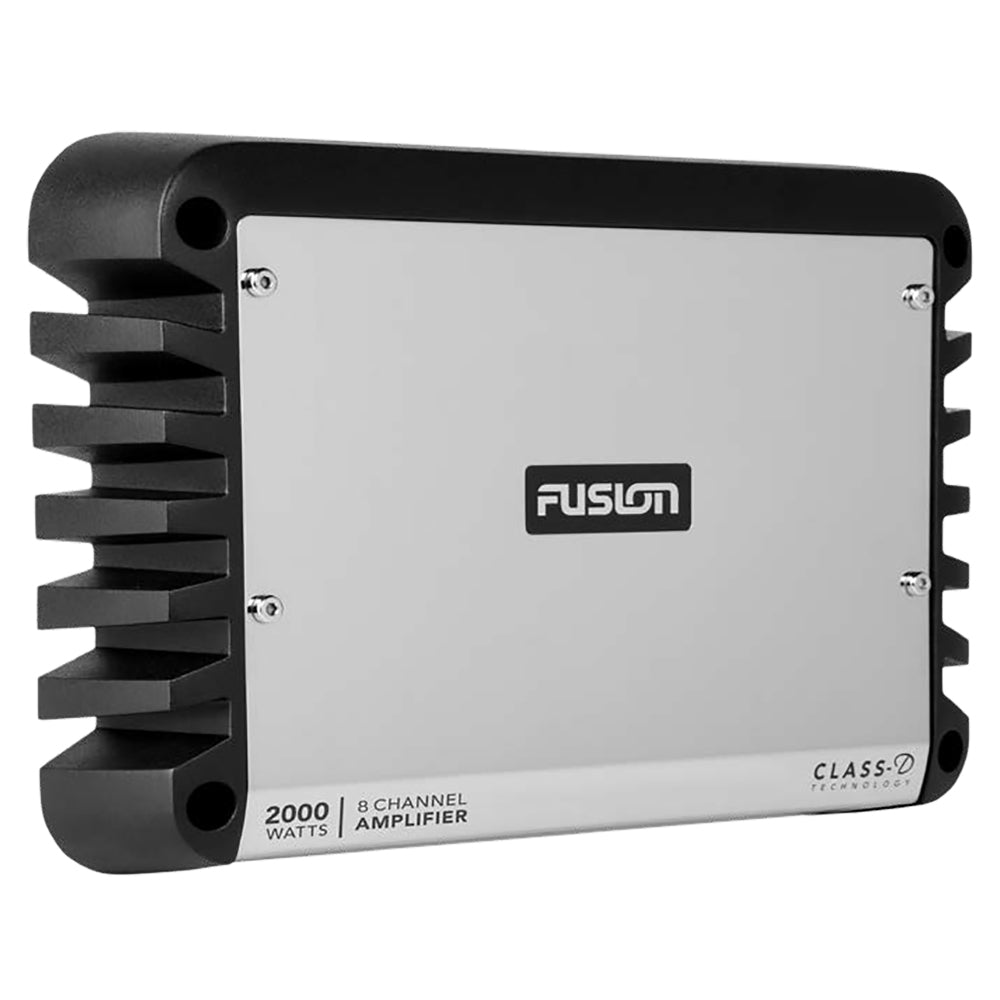

Fusion SG-DA8200 Signature Series 8 Channel Marine Amplifier
Model: 010-02162-00Introducing an impressive new addition to Fusion's Signature Series marine amplifier range: the SG-DA82000.
Fusion Signature Series amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before.
Our most efficient, stunning and powerful marine amplifier, the SG-DA82000 also features a True-Marine design that will resist corrosion. Its incredible 2000 Watt peak power will power up to 8 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) and 2 subwoofers. RCA line-level inputs allow for easy connection to new or existing systems.
The SG-DA82000 is Fusion's first 8 channel, Class-D Hi-Fi marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA82000 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.
Undeniably a stand-out piece, the stunning stainless steel mirror control panel cover conceals and protects all cable connections and setting controls, with an attractive finish to complement any installation.
This product is rated True-Marine and carries a 3-year limited consumer warranty.
Specifications| Frequency Response | 10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power) |
| Peak Power Output | 2000 W |
| Rated Power Output (4 Ohm) | 100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (2 Ohm) | 140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (4 Ohm Bridged) | 280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Input Sensitivity | 0.3 V to 8 V rms, user adjustable |
| Input Impedance | 7k Ohm nominal |
| High-Pass/Low-Pass Full Range Filter | Yes, user selectable |
| Filter Cross-Over Frequency | 32 Hz to 320 Hz, user adjustable |
| Filter Cross-Over Slope | 12 db/octave |
| Bass-Boost | 0 to 9 dB, user adjustable (zone 2/4 only) |
| Operating Voltage | 10.8 V to 16 V dc |
| Remote Switch-On | Yes - 6 V threshold |
| Current Consumption (Standby) | < 1 mA @ 14.4 V input |
| Current Consumption (Idle) | < 2.5 A @ 14.4 V input |
| Current Consumption (Max) | 100 A @ 14.4 V input |
| Fuse Rating | 4 x 40 A ATC Blade-Type (SAE J1171 Compliant) |
| Protection Circuits | Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit |
| Operating Temperature Range | 0 to 50°C (32 to 122°F) |
| Ingress Protection Rating | Dry area installation only |
| Dry area installation only | 420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16"" (L) x 8-1/4"" (W) x 2-1/4"" (H) |
| Warranty | 3 years |
| Type: |
Entertainment | Amplifiers |
|---|---|
| Vendor: |
FUSION |
| Weight: |
13.7 lb |
| Bridgeable: |
Yes |
| Waterproof Rating: |
Splashproof |
| Watts: |
2000w |
| Categories v2: |
Entertainment | Amplifiers |
| Category v1: |
MARINE AUDIO / VIDEO |
| UPC: |
753759218812 |
| Product Brochure: |
Download PDF |
