Garmin Cortex V1 VHF Radio with SOTDMA SmartAIS and Remote Vessel Monitoring

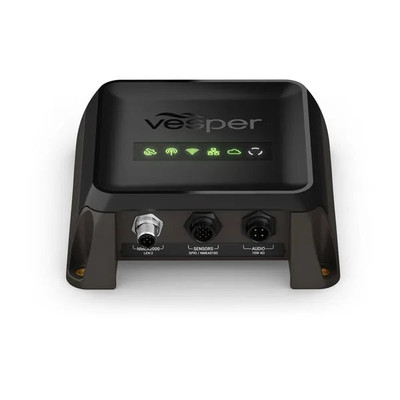

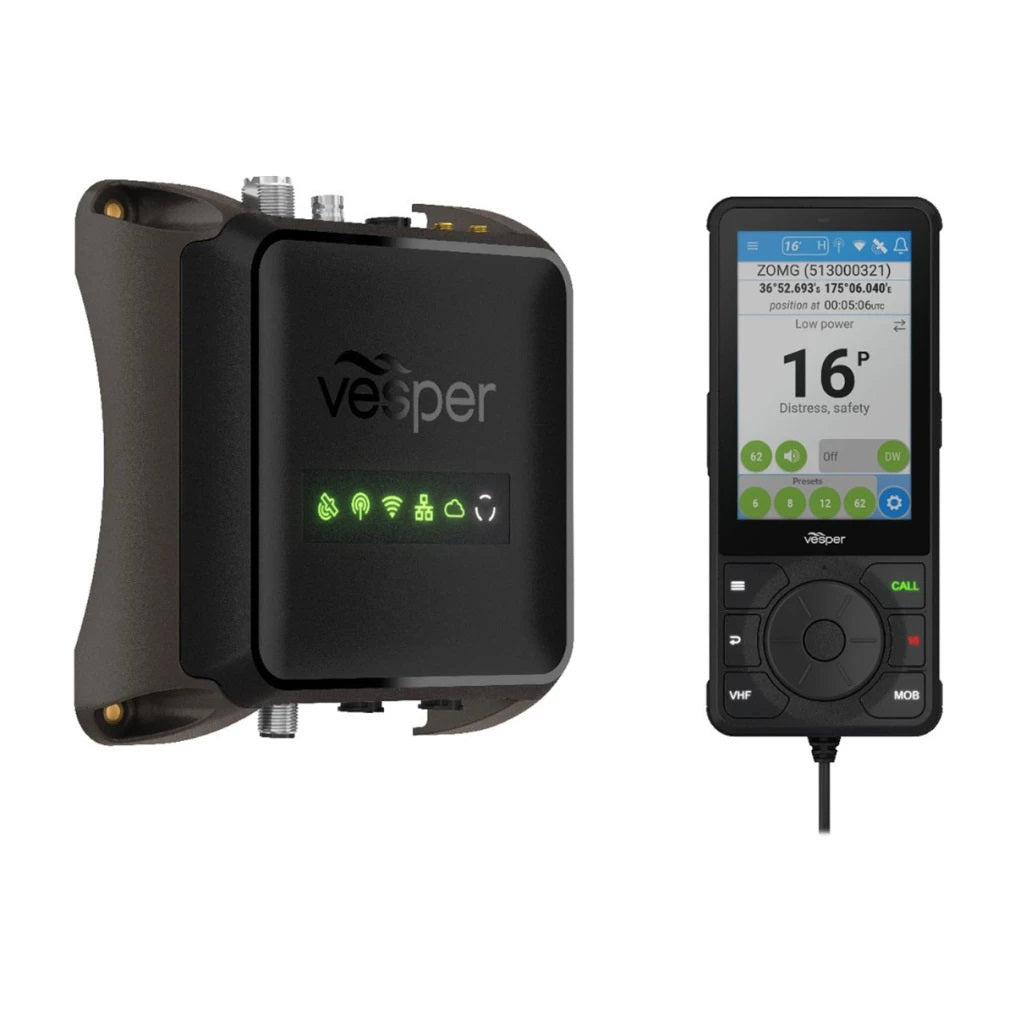

Model: 010-02814-20Cortex V1 is an advanced multi-station VHF radio with remote monitoring and control. The Cortex V1 system includes a Cortex M1 hub and Cortex H1 tethered handset. Connect additional Cortex handsets (sold separately) for even more freedom and control on board.
Cortex smartAIS continuously monitors AIS information from other boats and calculates crossing situations, generates collision alarms and provides easy-to-understand avoidance cues. Data from its built-in heading sensor is also broadcast, so other vessels can clearly identify which direction your boat is moving.
Both portable and power-tethered style Cortex handsets connect wirelessly via Wi-Fi® link to the Cortex M1 hub. Keep a portable handset with you for continual VHF communications access from anywhere on your boat.
Cortex lets you initiate DSC direct calls with other vessels by simply tapping the vessel icon on your handset. Initiate VHF calls to friends or quickly hail another vessel when every second counts.
Whether youre onboard or ashore, you can know for sure your boat is securely anchored. Cortex smartAIS accurately tracks boat movement, heading and bow position, alerting you if your anchor drags.
The Cortex VHF radio puts out up to 85 dBA of powerful, crystal-clear audio, so you wont miss critical communications.
Need to catch someones attention Easily sound preset horn signals or speak through your loudspeaker with any Cortex handset or the Cortex Onboard smart-device app.
Multiple Cortex H1 and Cortex H1P handsets can be connected to each hub. Up to 5 can connect directly to the Cortex Network, with an additional 5 through an existing boat network for increased range on larger vessels.
Designed for simplicity with easy-to-understand screens and step-by-step data flows during critical situations, Cortex makes advanced features easy to use.
Instead of ambiguous bells or tones, you'll hear a voice prompt to tell you what the alert is for. In case of a potential collision, youll also be told the direction of the threat, so youll quickly know where to look.
Man overboard (MOB) can be manually activated using the dedicated MOB button on the Cortex handset, Cortex Onboard smart device app or automatically from an AIS MOB beacon which launches a trackback mode for quick retrieval.
Wet hands Wearing gloves Cortex handsets are designed to be glove friendly, and theyre built to operate in all types of saltwater or freshwater marine environments.
Cortex handsets are equipped with a click-wheel, ergonomic design and grip enhancing exterior, so you can use the device while keeping one hand on the helm wheel or tiller.
Cortex touchscreen handsets provide responsive multi-touch, pinch-to-zoom and panning control, ensuring fast, smooth navigation and intuitive operation.
Specifications| General | |
| UNIT SIZE | M1: 168 x 168 x 58.7 mm (6 5/8" x 6 5/8" x 2 5/16" ) H1/H1P: 164.8 x 71.8 x 21.4 mm (6 1/2" x 2 13/16" x 7/8") |
| WEIGHT | M1: 770 g (1.7 lbs) H1: 285 g (0.63 lb) H1P: 235 g (0.52 lb) |
| WATER RATING | IPX7 |
| OPERATING VOLTAGE | H1/H1P: 12-24V compatible |
| CURRENT DRAW | 12V: 6A max, 700mA nom |
| OPERATING TEMPERATURE | -25°C to +55°C (-13°F to 131°F) |
| VHF VOICE | Yes |
| ATIS | Yes |
| TRANSMITTER FREQUENCY ERROR | Less than 300 Hz |
| ANT CONNECTOR | SO239 |
| SPLITTER | Max input power 25 W Insertion loss RX 0dB, TX < 2dB |
| SPLITTER CONNECTOR | BNC |
| VHF Voice | |
| VHF FREQUENCY RANGE TX | 156.025161.600 MHz |
| VHF FREQUENCY RANGE RX | 156.050163.275 MHz |
| DEDICATED RX VHF CHANNELS | 3 |
| VHF POWER OUTPUT | 25 W, 1 W (high, low) |
| REGION | U.S., Canada, International |
| SENSITIVITY (12 DB SINAD) | -116 dBm |
| ADJACENT VHF CHANNEL SELECTIVITY | 80 dB |
| SPURIOUS RESPONSE | 70 dB |
| VHF INTERMODULATION | 70 dB |
| SPURIOUS EMISSIONS | Less than -80 dBc (at 25 W) |
| MAX AUDIO OUTPUT POWER | 10 W, < 1% THD |
| MAX ANTENNA GAIN | 6 dBi |
| Class D DSC | |
| CLASS | Class D |
| DEDICATED RX DSC CHANNELS | 1 |
| AIS | |
| CLASS | SOTDMA Class B |
| DEDICATED RX AIS CHANNELS | 2 |
| Networking | |
| NMEA 2000® GATEWAY | 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 |
| NMEA 2000® LEN | 2 |
| NMEA 0183 DETAIL | 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000®, 4800/38400 baud |
| WIRELESS SECURITY | WPA2 Personal |
| CLOUD CONNECTIVITY | LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port |
| CONTROL OUTPUTS | 2; low side driven (max 150mA) |
| Display | |
| SCREEN | LCD TFT Si, 640 x 800, 24-bit color |
| TOUCH | capacitive, optically-bonded to LCD |
| TOUCH FEATURE | glove and salt water operable |
| CABLE LENGTH | 6 ft |
| CHANNEL 16 SHORTCUT | Yes |
| Connections | |
| CONNECTIONS WIRELESS CONNECTIVITY | access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) |
