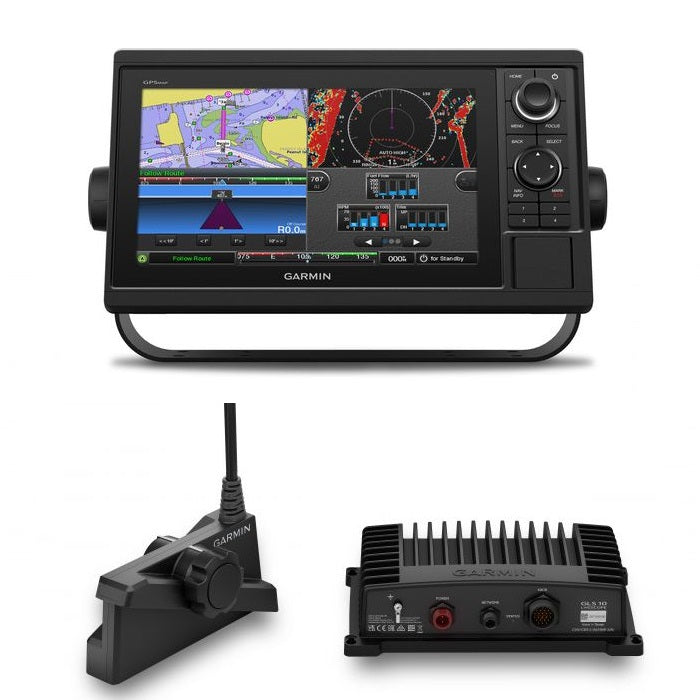

Garmin GPSMAP® 1222 12-inch Chartplotter LIVESCOPE Plus Bundle with Worldwide Basemap
Model: 010-01741-00/LVS34GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boats compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.
Two SD card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturers GPS product or on a Garmin handheld device its easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
1Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Specifications| Performance and Physical | |||||||||
| Dimensions | 14.1"" x 8.9"" x 2.7"" (35.8 x 22.6 x 6.9 cm) | ||||||||
| Display size | 10.3"" x 6.4"" (26.2 x 16.3 cm) | ||||||||
| Display resolution | 1280 x 800 | ||||||||
| Display type | WXGA display | ||||||||
| Weight | 5.2 lbs | ||||||||
| Water rating | IPX7 | ||||||||
| Antenna | Internal or external over NMEA 2000 | ||||||||
| NMEA 2000® compatible | Yes | ||||||||
| NMEA 0183 compatible | Yes | ||||||||
| SiriusXM Weather & Radio compatible | Yes | ||||||||
| Power consumption | Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A |
||||||||
| Mounting options | Bail or flush | ||||||||
| Maps and Memory | |||||||||
| Preloaded maps | None | ||||||||
| Accepts data card | 2 SD cards | ||||||||
| Waypoints | 5,000 | ||||||||
| Routes | 100 | ||||||||
| Track log | 50,000 points; 50
Garmin GPSMAP1222 12 Plotter LIVESCOPE Plus Bundle Worldwide Basemap Technical Specifications
