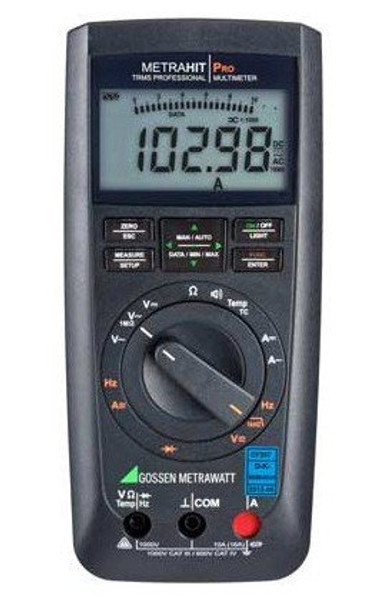

Gossen Metrawatt M242A OffersWith its wide range of functions, this advanced multimeter is an ideal tool for many tasks and areas of work. Additionally, the ergonomic design ensures maximum ease of use and safety.
Features
Three connector jacks with automatic blocking sockets (ABS)
All current ranges are implemented via a single connector jack which prevents any possibility of operator error. Beyond this, the automatic blocking sockets prevent incorrect connection of the measurement cables, as well as selection of the wrong measured quantity. Danger to the user, the instrument and the device under test resulting from operator error is thus ruled out.
Overload protection
It is safeguarded for up to 1000 V in all measuring functions by overload protection. Voltages of greater than 1000 V and current of greater than 10 or 16 A are indicated acoustically. Dangerous contact voltages are indicated when the 1 kHz lowpass filter is activated. The FUSE display appears in order to indicate that the fuse for the current measuring input has blown.
RMS value with distorted waveshape
The utilized measuring method allows for waveshape independent RMS measurement (TRMS AC and AC+DC) for voltage and current.
Activatable filter for V AC measurement
A 1 kHz low-pass filter can be activated if required, for example when measuring motor voltage at electronic frequency converters. The input signal is checked by a voltage comparator for dangerous voltages as long as the low-pass filter is activated.
Analog scale for quick trend display - bar graph or pointer
The analog scale (with additional negative range for zero frequency quantities) allows for faster recognition of measured value fluctuation than is possible with a digital display. It can be switched back and forth between bar graph and pointer display.
Automatic or manual measuring range selection
Measured quantities are selected by means of a rotary switch and a function key. The measuring range is automatically matched to the measured values. The measuring range can also be selected and fixed manually with a key.
Fast acoustic continuity test
Testing for short circuiting and interruption is possible with the selector switch. The threshold value for acoustic signaling can be set to 1, 10, 20, 30, 40 or 90 Ω.
Automatic storage of measured values
The DATA function automatically saves the digitally displayed measured value after settling in. Acoustic signaling is also used to indicate whether the new measured value deviates from the initial reference value by less or more than 0.1% of the measuring range.
Storage of minimum/maximum values
Comparable to the slave-pointer function of an analog instrument, this multimeter saves the highest and lowest measured values after the MIN/MAX function has been activated or reset. These extreme values can be queried at the display.
Battery charging status - power saving circuit
The battery charging status is indicated by means of four symbols. This multimeter is switched off automatically if the measured value remains unchanged for a period of between 10 and 59 minutes (adjustable), and if none of the controls are activated during this time. Automatic shutdown can be deactivated by switching it to continuous operation.
Protective cover for harsh conditions
This multimeter is protected against damage in the event of impacts or dropping by means of a soft rubber cover with tilt stand and test probe holder. The rubber material also assures that it does not wander if it is set up on a vibrating surface.
Applications
| Measuring Function: V | Range: 100 mV, 1, 10, 100, 1000 V Resolution (at upper range limit): 10, 100 μV, 1, 10, 100 mV |
| Measuring Function: A | Range: 1, 10 A Resolution (at upper range limit): 100 μA, 1 mA |
| Measuring Function: Ω | Range: 100 Ω, 1, 10, 100 kΩ, 1, 10, 40 MΩ Resolution (at upper range limit): 10, 100 mΩ, 1, 10, 100 Ω, 1, 10 kΩ |
| Internal Clock | Time format: DD.MM.YYYY hh:mm:ss Resolution: 0.1 s Accuracy: ±1 min/month Temperature: Influence 50 ppm/K |
| Reference Conditions | Ambient temperature: 23°C ±2 K Relative humidity: 40 to 75% Measured quantity frequency: 45 to 65 Hz Measured quantity waveshape: Sine Battery voltage: 3 V ±0.1 V |
| Acoustic Signals | For voltage: Intermittent signal at above 1000 V For current: Intermittent signal at above 10 A, continuous signal at above 16 A |
| Fuse | FF (UR) 10 A/1000 V AC/DC; 0.4 x 1.5" (10 x 38 mm) Switching capacity: 30 kA at 1000 V AC/DC, protects the current measurement input in the 100 μA through 10 A ranges |
| Display | LCD panel (2.6 x 1.4" [65 x 36 mm]) with analog and digital display including unit of measure, type of current and various special functions |
| Electrical Safety | Per IEC 61010-1:2010/VDE 0411-1:2011 Safety class: II Measuring category: III and IV Operating voltage: 1000 V and 600 V Pollution degree: 2 Test voltage: 6.7 kV~ |
| Electromagnetic Compatibility (EMC) | Interference emission: EN 61326-1: 2013, class B Interference immunity: EN 61326-1: 2013, EN 61326-2-1: 2013 |
| Ambient Conditions | Accuracy range: 32 to 104°F (0 to 40°C) Operating temperature: 14 to 122°F (-10 to 50°C) Storage temperature: -13 to 158°F (-25 to 70°C), without batteries Relative humidity: 40 to 75%, no condensation allowed Elevation: To 6561.68' (2000 m) Deployment: Indoors, except within specified ambient conditions |
| Power Supply | Battery type: 2 x 1.5 V mignon cell (2 x AA), alkaline manganese per IEC LR6 (2 x 1.2 V NiMH rechargeable battery also possible) Battery life: With alkaline manganese: approximately 200 hours |
| Protection | Housing: IP52 (pressure equalization by means of the housing) |
| Housing | Impact resistant plastic (ABS) |
| Dimensions | 7.87 x 3.43 x 1.77" (200 x 87 x 45 mm), without protective rubber cover |
| Weight | Approximately 0.77 lbs (0.35 kg) with batteries |
