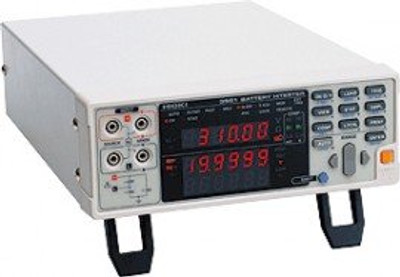

Hioki BT3564 Battery HiTester

No reviews yet Write a Review
$10,472.00
SKU:
BT3564
Availability:
2 to 3 Weeks
5 customers are viewing this product

Hioki BT3564 Battery HiTester

$10,472.00

Availability: 2 to 3 Weeks

Hioki BT3564 Offers

Inspect your battery packs safely by using the Hioki BT3564 Battery HiTester. This Hioki HiTester simultaneously measures the battery voltage and internal resistance of EV and PHEV battery packs to make inspections easier. The spark discharge reduction inhibits the current flow to limit the chance of spark discharges, while the value analog output function provides a graph of the measured resistance for added convenience.

Features

  • Tests the battery voltage of EV and PHEV battery packs up to 1,000 V
  • Measures both pack voltage, total resistance and bar resistance
  • Provides high-speed measurement of internal resistance from 0.1 μΩ to 3,000 Ω
  • Limits the flow of current to reduce the likeliness of spark discharges
  • Built-in resistance value analog output function allows you to see a graphical representation of the measurements
  • Applications Shipping and Receiving Inspections of Battery Packs


Hioki BT3564 Specifications

Specifications

Maximum Measurement Voltage±1,000 VDC
Resistance Measurement Range7 ranges: 3 μΩ to 3 kΩ
Resistance Measurement Accuracy±0.5% rdg. ±5 dgt. (30 mΩ to 3 k&Omega range); ±0.5% rdg. ±10 dgt. (3 mΩ range)
Testing Source Frequency1 kHz ±0.2Hz
Testing Current100mA (3 mΩ range) to 10 μA (3 kΩ range)
Open Terminal Voltage25 V peak (3/30 mΩ ranges); 7 V peak (300 mΩ range); 4 V peak (3 Ω to 3 kΩ range)
DisplayLED
Sampling Time12 ms (fast); 35 ms (medium); 253 ms (slow)
Analog OutputMeasured resistance (0 to 3.1 V DC)
Power Supply100 to 240 V AC; 50/60 Hz; 30 VA maximum
Product Length12.95 in (295 mm)
Product Width8.46 in (215 mm)
Product Height3.29 in (80 mm)
Product Weight84.7 oz (2.4 kg)
Manufacturer Warranty1 year


What's included with the Hioki BT3564
  • Battery HiTester
  • Instruction Manual
  • Power Cord
  • Operating Precautions
