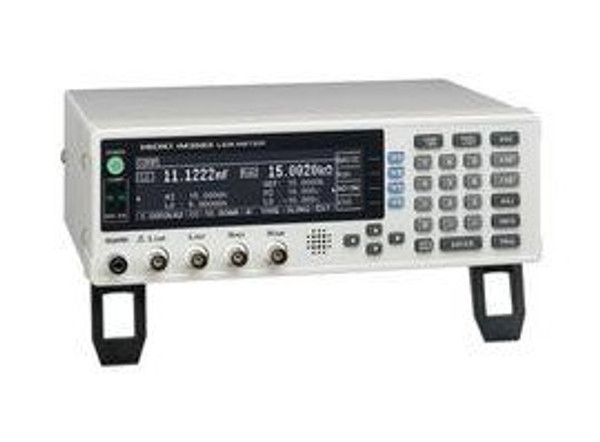

Hioki IM3523 LCR MeterThe IM3523 are extremely cost-effective testers that provide higher performance and better functionality than previous HIOKI models, such as a wide measurement frequency range from 1 mHz (40 Hz for the IM3523) to 200 kHz, high-speed measurement of up to 2 ms, and highly reliable measurement using the contact-check function. Select the best model according to your application - from production linesto research and development.From Production Lines to Research and Development.
| Measurement Modes | LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions) |
| Measurement Parameters | Z, Y, Θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanσ), σ, Ε |
| Measurement Range | 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.) |
| Displayable Range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only θ: ±(0.000° to 180.000°), D: ±(0.00000 to 9.99999) Q: ±(0.00 to 99999.9), Δ%: ±(0.0000% to 999.999%) |
| Basic Accuracy | Z: ±0.05% rdg. Θ: ±0.03° |
| Measurement Frequency | 40 Hz to 200 kHz (5 digits setting resolution) |
| Measurement Signal Level | V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps |
| Output Impedance | 100 Ω |
| Display | Monochrome LCD |
| Measurement Time | 2 ms (1 kHz, FAST, representative value) |
| Functions | Comparator, BIN measurement (classify function), Panel loading/saving, Memory function |
| Interfaces | EXT I/O (handler), USB communication (high-speed) Optional: Choose 1 from RS-232C, GP-IB, or LAN |
| Power Supply | 100 to 240 V AC, 50/60 Hz, 50 VA maximum |
| Dimensions | 10.24 x 3.46 x 7.99" (260 x 88 x 203 mm) |
| Weight | 84.7 oz (2.4 kg) |
