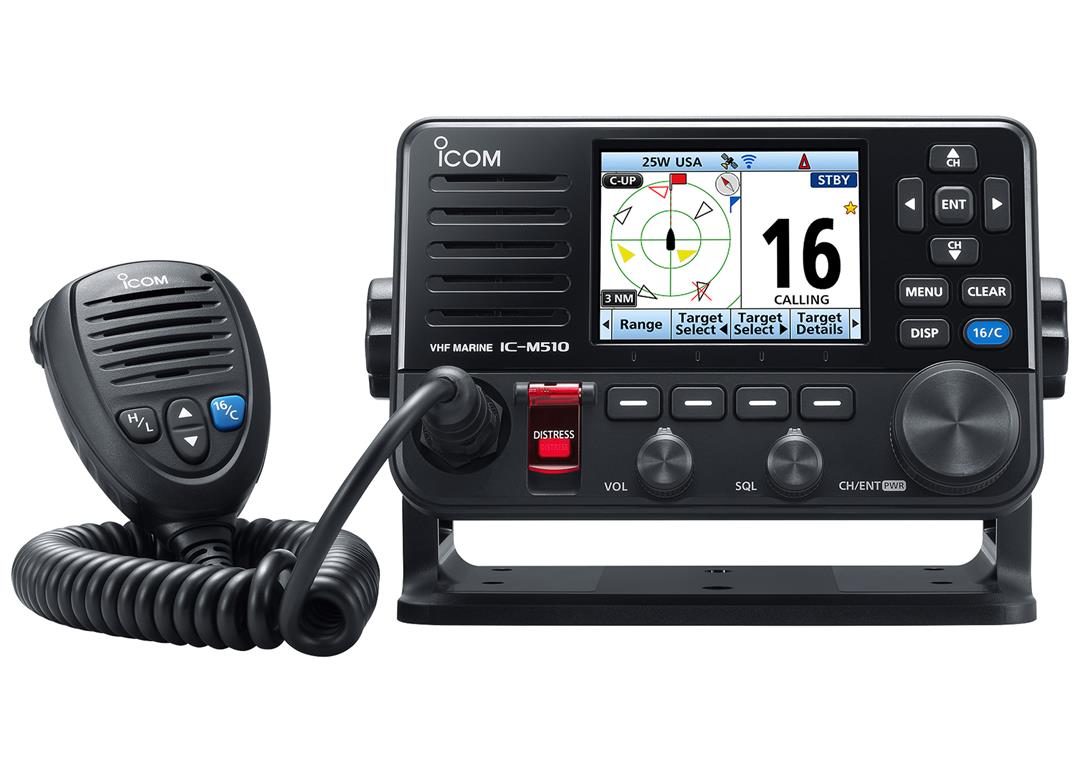

Icom M510 AIS Fixed Mount VHF Radio With Built-in AIS receiver and WiFi for Control From Your Smartphone or Tablet The M510 AIS is a tech-laden powerhouse available with nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS and Android smart devices with class leading features such as wireless calling. Use the M510 AIS version to access real-time vessel traffic information to stay up to date on travel information. Directly call an AIS target when using an individual DSC call. Reduce on the amount of marine hardware with an AIS and VHF two in one. The M510 AIS includes a full color 3.5" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark. The RS-M500 app allows you to connect three iOS or Android smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510 AIS's intercom function from the comfort of the captain's seat. Additionally, one CommandMic can connect while 3 other smart devices are linked. Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
M510 PLUS VHF Marine Radio with AIS - Black
Stay in touch from anywhere in the boat with the M510 fixed mount Marine VHF Radio with an AIS receiver.
Icoms Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse available with or without AIS receive capability. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android smart devices with class-leading features such as wireless calling.
Specifications:
Large Color Display
The M510 includes a full color 3.5" TFT LCD screen with nearly 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.
Integrated Automatic Identification System
Use the M510 AIS version to access real-time vessel traffic information to stay up to date on travel information. Directly call an AIS target when using an individual DSC call. Reduce the amount of marine hardware with an AIS and VHF two in one.
Command & Control
The RS-M500 app allows you to connect three iOS® or Android smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510s intercom function from the comfort of the captains seat. Additionally, one COMMANDMIC can connect while 3 other smart devices are linked.
CT-M500 Wireless Interface with NMEA 2000
Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
Features:
Icom M510 PLUS AIS VHF Radio
Model: M510 PLUS 21 USAIcoms new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android smart devices with class leading features such as wireless calling.
The M510 includes a full color 3.5"" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.
The RS-M500 app allows you to connect three iOS® or Android smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510s intercom function from the comfort of the captains seat. Additionally, one COMMANDMIC can connect while 3 other smart devices are linked.
Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
With its integrated AIS receiver or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
Specifications| General | |
| Usable channels | USA, INT, CAN, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)* |
| Power supply requirement | 13.8V DC (11.715.9V DC) |
| Current drain TX (25W output) | 5.0A |
| Current drain RX (Max. Audio) | 3.3A |
| Operating temperature range | 20°C to +60°C; 4°F to +140°F |
| Antenna impedance | 50 Ohm |
| Transmitter | |
| Output power (at 13.8V DC) | 25W, 1W |
| Max. frequency deviation | +/- 5.0 kHz |
| Frequency tolerance | +/- 0.5 kHz |
| Spurious emissions | Less than -70 dBc (at 25W) |
| Residual modulation | More than 40 dB |
| More than 40 dB | More than 70 dB |
| Receiver | |
| Sensitivity (at 12dB SINAD) DSC (1% BER) | 0.32 µV typical 0.89 µV emf typical |
| Adjacent channel selectivity DSC (1% BER) | More than 75 dB More than 73 dBµ emf |
| Spurious response DSC (1% BER) | More than 75 dB More than 73 dBµ emf |
| Intermodulation DSC (1% BER) | More than 75 dB More than 68 dBµ emf |
| Hum and noise | More than 40 dB |
| Audio output power at 10% distortion | More than 15W with a 4 external speaker |
| Wireless LAN | |
| Wireless LAN standard | IEEE 802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1 to 13 (2.4 GHz band)** |
| Output power | Less than 10 mW/MHz |
| Type: |
Communication | VHF - Fixed Mount |
|---|---|
| Vendor: |
Icom |
| Weight: |
4.2 lb |
