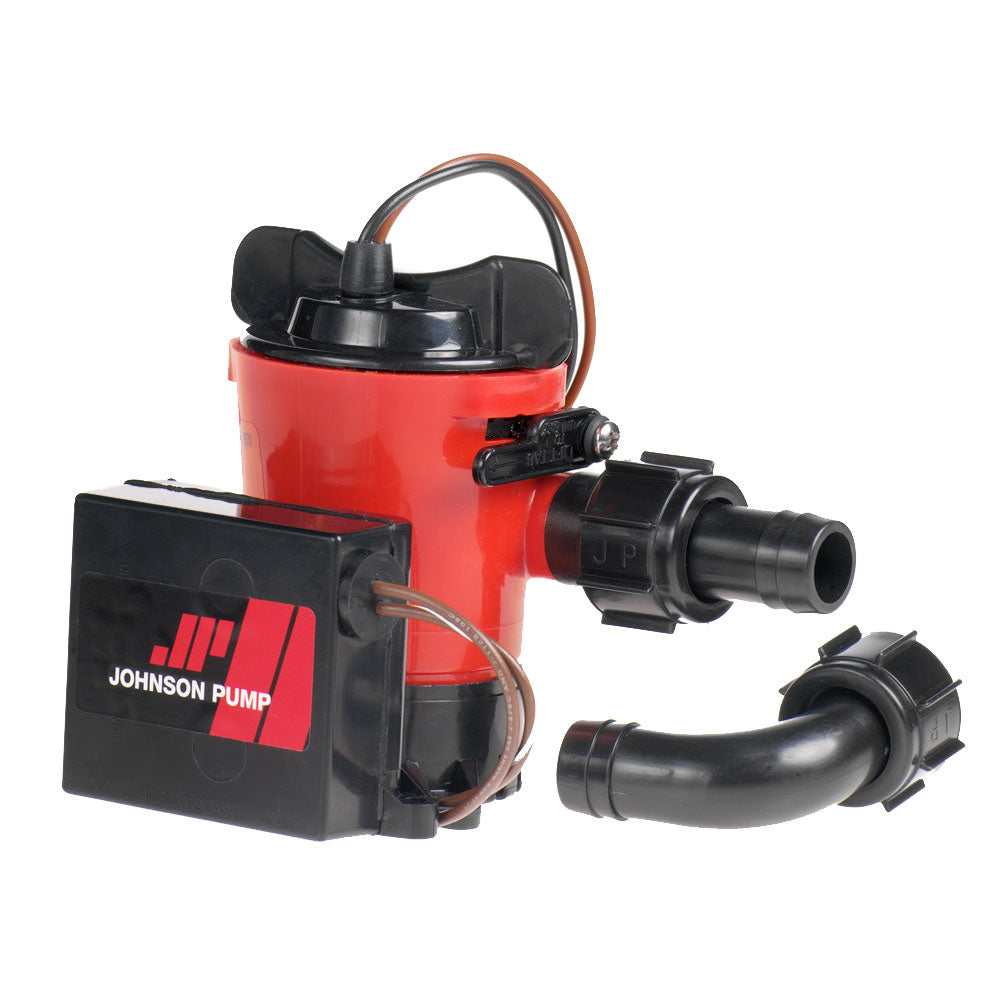

Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port

No reviews yet Write a Review
$90.42
SKU:
07503-00
UPC:
729321075039
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port

$90.42

Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port Product Description

Johnson Pumps 750300 Attributes


500 GPH Ultima Combo Automatic Submersible Bilge Pump 12V

Johnson Pump Marine Ultima Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with the non-clogging electronic switch Ultima Switch™ for automatic operation. The electronic automatic switch Ultima Switch™ uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by level of water present in the bilge and automatically activates and deactivates the pump.

CE-Approved

Features:

  • Pre-configured with an electronic Ultima Switch for automatic operation
  • Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
  • No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
  • 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
  • Meets the international standard, ISO 8849 marine
  • Pump body: Thermoplastic
  • Shaft seal: Lip seal
  • Shaft: Stainless steel
  • Voltage: 12v
  • Wire size: 16GA
  • Hose size: 3/4"
  • Includes Dura-port connection

Specifications

  • Capacity 3ft (0.9 m) head (13.6V/27.2): 33 l/min - 525 GPH
  • Capacity straight (13.6V/27.2V): 40 l/min - 630 GPH
  • Amperage: 2.5 A
  • Fuse size: 5 A
  • Connection: 3/4"
  • Length: 4.41" (112 mm)
  • Width: 4.25" (108 mm)
  • Height: 3.35" (85 mm)
  • Weight: 14.4 oz.


The latest automatic bilge pump technology. The innovative switch/pump combination uses digitally reliable field effect sensing to detect the bilge area and water there.

Blue Sea 5239 5A ATO/ATC Fuse
Johnson Pump 500 GPH Motor Cartridge Only
Perko 3/4" Thru-Hull Fitting f/ Hose Plastic MADE IN THE USA
Perko 3/4" Thru-Hull Fitting f/ Hose Chrome Plated Bronze MADE IN THE USA
Perko 3/4" Thru-Hull Fitting f/ Hose Bronze MADE IN THE USA
Blue Sea 5060 Crimpable Inline Fuse Holder AGC MDL
Blue Sea 5061 Waterproof Inline Fuse Holder AGC/MDL
Blue Sea 5065 Waterproof In-Line Fuse Holder ATO/ATC
Johnson Pump 3 Way Bilge Control - 12V
Ancor Bilge Pump Cable - 16/3 STOW-A Jacket - 3x1mm² - Sold By The Foot


Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port

Johnson Pump
How to describe Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port
What is the working voltage of the product
What is the type of the product
What is the weight of the product
What is the outlet size of the product
What is the operation mode of the product, automatic
What is the working capacity of product (GPH)

Johnson Pump

SPX Process Equipment, former Johnson Pump, develops, manufactures and markets pumps for industrial, horticulture and marine use. With many years of experience and expertise, combined with our wide product range, makes it one of the most reliable pump producers worldwide. SPX is much more than a Johnson Pump brand manufacturer -- They are your solution provider.

How to describe Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port

The latest automatic bilge pump technology. The innovative switch/pump combination uses digitally reliable field effect sensing to detect the bilge area and water there.

What is the working voltage of the product

12

What is the type of the product

Electric

What is the weight of the product

1.06

What is the outlet size of the product

3/4"

What is the operation mode of the product, automatic

Automatic

What is the working capacity of product (GPH)

500 GPH


Johnson Pump 500 GPH Auto Bilge Pump 3/4" Hose 12V Dura Port Technical Specifications

Type:

Marine Plumbing & Ventilation | Bilge Pumps

Vendor:

Johnson Pump

Weight:

1.0 lb

Gallons Per Hour:

500 GPH

Operation:

Automatic

Outlet Size:

3/4"

Volts:

12v

Type:

Electric

Product Manual:

Download PDF
