Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000

No reviews yet Write a Review
$1,152.47
SKU:
15504-101
UPC:
874847007276
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000

$1,152.47

Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000 Product Description

Auto Glide Boat Leveling System - Single ActuatorKit without GPS Antenna and Network - For boats with existing NMEA 2000 Networks A Real Automatic Boat Control / Trim Tab Control System that actually works - completely & automatically. The Auto Glide system controls your trim tabs from the time you leave your dock until you come home again! The Auto Glide uses engine data and GPS data (depending on your installation method) to drive your boat to the most efficient running angle by adjusting your Lenco trim tabs as needed. This optimum running angle is determined during the set-up process after the installation of your Auto Glide system. Imagine that your boat's running angle is measured 25 times per second and this data is used by the new Auto Glide control box to:- Automatically put your boat in the most efficient running angle.- Reduce the amount of bow rise of your boat during hole shot mode.- Eliminate bow porpoising (bow bounce).- Keep your boat level at all times.These actions will result in a smoother ride and the best possible fuel efficiency. Note: The Auto Glide does not control the "trim" function of your engine(s) / motor(s). Please remember to use the trim feature exactly as you would in the normal operation of your boat. The Auto Glide Control Box (brain) consists of gyroscopes, accelerometers, and new, very sophisticated, and patented software. The Auto Glide has 3 automatic operational modes, 4 automatic settings, and 2 manual operational modes. Although you will most likely keep your Auto Glide in automatic mode, you may immediately convert to manual mode simply by pressing one of the 4 up/down buttons on the key pad. All of these functions are fully explained in our Owner's Manual B / Operational Instructions.

Lenco 15504101 Attributes

  • Compatibility: Single Actuator Trim Tabs And Boats Without Existing NMEA 2000 Networks
  • Type: Key Pad

Lenco 15504101 Features & Benefits

  • Automatic pitch and roll corrections
  • Automatically trims boat to the most fuel efficient position.
  • Manual override at the touch of a button.
  • Built-in automatic trim tab retraction
  • Totally waterproof key pad and control box
  • Three custom settings
  • Limited 2 Year Warranty

Lenco 15504101 Installation Instructions

  • Auto Glide Quick Reference Guide_TCHDAT.pdf
  • 15504-101_TCHDAT.pdf

Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000

A Real Automatic Boat Control / Trim Tab Control System that actually works - completely & automatically!

The Auto Glide system controls your trim tabs from the time you leave your dock until you come home again!

The Auto Glide uses engine data and GPS data (depending on your installation method) to drive your boat to the most efficient running angle by adjusting your Lenco trim tabs as needed. This optimum running angle is determined during the set-up process after the installation of your Auto Glide system.

Imagine that your boat's running angle is measured 25 times per second and this data is used by the new Auto Glide control box to:

  • Automatically put your boat in the most efficient running angle.
  • Reduce the amount of bow rise of your boat during hole shot mode.
  • Eliminate bow porpoising (bow bounce).
  • Keep your boat level at all times.


These actions will result in a smoother ride and the best possible fuel efficiency.

The Auto Glide has 3 automatic operational modes, 4 automatic settings, and 2 manual operational modes. Although you will most likely keep your Auto Glide in automatic mode, you may immediately convert to manual mode simply by pressing one of the 4 up/down buttons on the key pad.

The main components are the Auto Glide Key Pad, the Auto Glide Control Box, the Control Box Main Harness, and various cables. These cables connect the Auto Glide system to your engine(s), to your GPS unit, your network, and/or a Stand Alone GPS Antenna/Receiver.

Boat must have Lenco Single Trim Tab System with Lenco Electric Actuators. This is a MUST in all applications.

For Aftermarket Systems:
  • The Lenco Glide System will work on ALL boats with ALL engines. GPS data is used to provide data to control box. Optional connection to NMEA 2000 Network is included.For OEM System:


For OEM System:
  • Connection to analog systems is available.
  • Connection to CANbus-based engines is available. See list below.
  • Boat must have NMEA 2000 GPS network or NMEA 2000 antenna receiver.
  • NMEA 0183 will work, but will have slower signal response. Lenco offers a NMEA 2000 GPS antenna receiver and optional stainless steel mounting bracket.

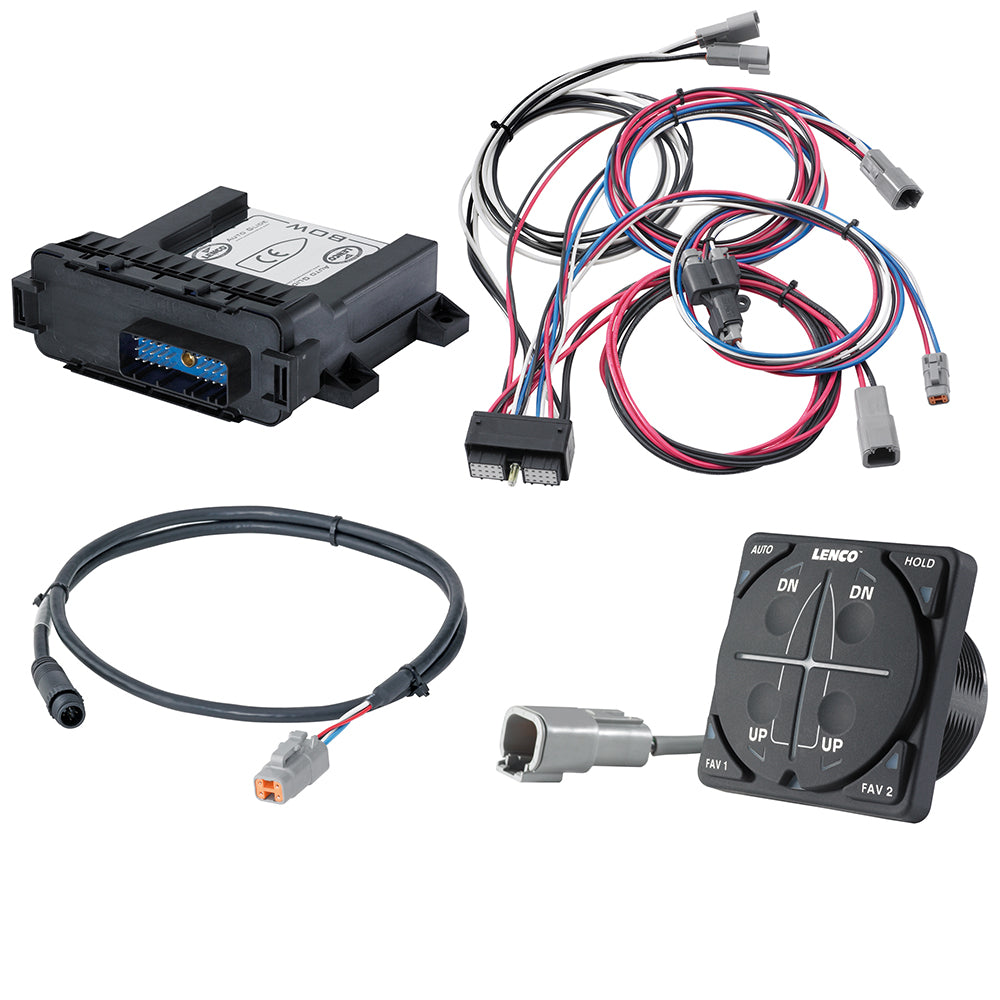

Kit Contains
1 30254-001D Auto Glide Key Pad Control
1 30255-001 Auto Glide Control Box f/ Single Actuator
1 30248-001 Auto Glide Control Box Harness f/ Single Actuator
1 30259-001D CAN bus #1 NMEA2000 Cable - 2.5'

Available for these CANbus-based engines:

NMEA2000 Engines
  • Yamaha (Command Link Plus requires NMEA 2000 / Yamaha Gateway P/N:6Y98A2D00000)
  • Evinrude
  • Honda
  • Suzuki
    E
  • Volvo Penta (Non-EVC Engines) (With a Volvo NMEA2000 Gateway - Volvo P/N 3889757)

J1939 Engines
  • Volvo Penta (EVC Engines)
  • Yanmar
  • Caterpillar
  • Cummins
  • Detroit Diesel
  • John Deere
  • Steyr

SmartCraft Engines
  • Mercury - Verado
  • Mercury - Optimax with SmartCraft ECU
  • Mercruiser with SmartCraft ECU
  • Cummins/Mercruiser w/ SmartCraft ECU

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



A variety of seafood can help meet your boating needs. Today, our products are known for their easy-to-use, robust design and reliability. Really effective real automatic boat control/trimming label control system-fully automatic! Since you leave the dock and go home again, the automated taxi system will control your "trim" tab! "Automatic taxiing" uses engine data and GPS data (depending on your installation method) to adjust the Lenco trim as needed to set the rudder to the most effective driving angle. After installing the Auto Glide system, determine the best operating angle during the installation process. Auto Glide has 3 automatic operation modes, 4 automatic settings and 2 manual operation modes. Although you are most likely to keep "auto glide" in automatic mode, you can switch to manual mode immediately by pressing one of the 4 up/down buttons on the keyboard. The main components include automatic sliding keyboard, automatic sliding control box, control box main wiring harness and various cables. These cables connect the Auto Glide system to the engine, connect the GPS to the GPS unit of the network and/or a separate GPS antenna/receiver. feature. Automatically put your boat at the most effective driving angle.

Lenco Auto Glide Adapter Cable f/SmartCraft / Mercury - 2.5'
Lenco Auto Glide Adapter Cable f/Command Link / Yamaha - 2.5'
Lenco Auto Glide Adapter Cable f/J1939 - 2.5'
Lenco Auto Glide Adapter Cable CANbus#1 NMEA2000 - 2.5'
Lenco Auto Glide Adapter Cable CANbus #2 GPS/NMEA 2000 - 2.5'
Lenco Auto Glide Adapter Extension Cable - 10'
Lenco Auto Glide Adapter Extension Cable - 20'
Lenco Auto Glide Adapter Extension Cable - 30'
Lenco Auto Glide Adapter Extension Cable - 40'
Lenco Auto Glide Adapter Extension Cable - 50'


Frequently Asked Questions (FAQ) About Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000

Who is the Lenco Marine ?
How to describe Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000?
What is the type of the product?
What is the weight of the product?
What is the compatibility of this product?

Who is the Lenco Marine ?

Trim tabs make the single most important difference in the way your boat will ride and perform. Lenco trim tabs will make your boat ride smoother, drier, faster and with increased safety whether on a high-performance, family cruiser or small skiff. Lenco's ballscrew design is more reliable, twice as powerful and features an instant response which makes them very user friendly.

How to describe Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000?

A variety of seafood can help meet your boating needs. Today, our products are known for their easy-to-use, robust design and reliability. Really effective real automatic boat control/trimming label control system-fully automatic! Since you leave the dock and go home again, the automated taxi system will control your "trim" tab! "Automatic taxiing" uses engine data and GPS data (depending on your installation method) to adjust the Lenco trim as needed to set the rudder to the most effective driving angle. After installing the Auto Glide system, determine the best operating angle during the installation process. Auto Glide has 3 automatic operation modes, 4 automatic settings and 2 manual operation modes. Although you are most likely to keep "auto glide" in automatic mode, you can switch to manual mode immediately by pressing one of the 4 up/down buttons on the keyboard. The main components include automatic sliding keyboard, automatic sliding control box, control box main wiring harness and various cables. These cables connect the Auto Glide system to the engine, connect the GPS to the GPS unit of the network and/or a separate GPS antenna/receiver. feature. Automatically put your boat at the most effective driving angle.
  • The Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 is the only auto-trim tab system that actually works
  • Completely automatic and requires no human intervention, the Auto Glide system controls your trim tabs from the helm
  • The Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 is a real automatic boat control and trim tab control system
  • Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 A Real Automatic Boat Control / Trim Tab Control System that actually works - completely & automatically!
  • The Auto Glide system controls your trim tabs from the helm station or any other location on the boat.
  • No more manual adjustments, no more hassles, no more worries.

What is the type of the product?

Key Pad
  • The Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 is the only auto-trim tab system that actually works
  • Completely automatic and requires no human intervention, the Auto Glide system controls your trim tabs from the helm
  • The Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 is a real automatic boat control and trim tab control system
  • Auto Glide Boat Leveling System for Single Actuator Tab Systems w/Existing NMEA 2000 A Real Automatic Boat Control / Trim Tab Control System that actually works - completely & automatically!
  • The Auto Glide system controls your trim tabs from the helm station or any other location on the boat.
  • No more manual adjustments, no more hassles, no more worries.
  • The Auto Glide Kit is a fully automatic boat leveling system that uses GPS and an onboard network to create a smooth and relaxing boating experience.
  • The Auto Glide Kit is easy to install, with no drilling or wiring required, and can be removed at any time.
  • This kit includes the following: - A single actuator Trim Tab System - A Lenco Auto Glide Kit without GPS Antenna or Network
  • Tired of manually adjusting your boat's trim tab to keep it level?
  • Auto Glide is an automatic boat leveling system that uses a single actuator to control the operation of the trim tab.
  • It does this by using NMEA 2000 networked GPS sensors, which are included in the kit.

What is the weight of the product?

4

What is the compatibility of this product?

Single Actuator Trim Tabs And Boats Without Existing NMEA 2000 Networks


Save $830 when you buy the Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000 for only $1028 from NVN Marine! Same day shipping before 3pm.

Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000 Technical Specifications

Type:

Boat Outfitting | Trim Tabs

Vendor:

Lenco Marine

Weight:

3.5 lb
