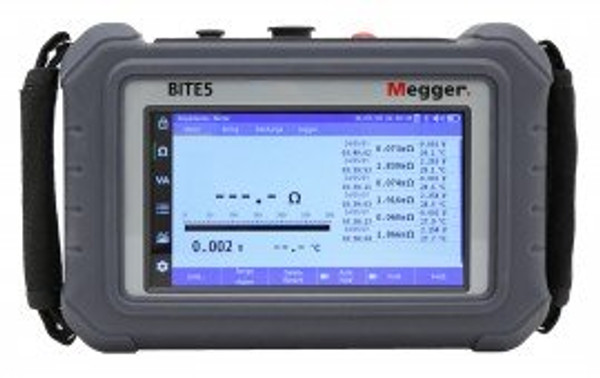

Megger BITE5-ADV Advanced Battery Tester, 500 V

No reviews yet Write a Review
$7,672.00
SKU:
BITE5-ADV
Availability:
2 to 3 Weeks
5 customers are viewing this product

Megger BITE5-ADV Advanced Battery Tester, 500 V

$7,672.00

Availability: 2 to 3 Weeks

Megger BITE5-ADV Offers

The BITE5 Advanced will record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Measure the average impedance at the end of the commissioning test and use this as a limit for future impedance tests. Trend the recorded data on the touch screen and view the trended data of each test or trend the discharge of each cell.

Features

  • Measures impedance on modules up to 500 V
  • Measures inter-cell (strap) resistance
  • Supports lead acid, NiCD and lithium-ion
  • Supports battery discharge testing
  • Monitoring battery recharge
  • Test parallel strings without segmenting
  • Touch screen set-up and trending
  • RFID Tag Reader
  • Measure and record DC voltages up to 1000 V DC
  • Measure and record AC voltages up to 600 V AC
  • Wirelessly transfer data to PowerDB

Battery impedance testing

This advanced battery tester will measure cell impedance, cell voltage, temperature, and inter-cell connections (straps). The recorded data can be trended on the unit’s touch screen. You can view the trended data of each test or trend the data of each cell. Set pass, warning, and fail limits for voltage, impedance, and straps. Record the ripple voltage, ripple current, and float current, and transfer the recorded data via USB or an SD card to the PowerDB software. From there, you can create custom reports and perform automated analysis.

Battery discharge testing

This battery tester will record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Measure the average impedance at the end of the commissioning test and use this value as a limit for future impedance tests. You can trend the recorded data on the BITE5 Advanced touch screen, view the trended data of each test, or trend the discharge of each cell.

Parallel strings

This battery tester can test and troubleshoot parallel strings without the need for segmentation.

Recharge monitoring

This battery tester will trend the discharge or recharge of a complete string.

Applications

  • View data in ohms or Siemens
  • Battery impedance testing
  • Battery discharge testing
  • Parallel strings
  • String recharge
  • Troubleshooting EV batteries
  • Mobile battery packs (Forklift)
  • Lithium-ion battery testing up to 500 V DC
  • UPS testing with optional extension leads
  • ESS systems
  • Pitch control backup batteries


Megger BITE5-ADV Specifications

Specifications

Input Power
AC/AdapterInput: 100 to 240 V AC (50/60 Hz)Output: 12 V DC at 2.5 A
BatteryLi-ion rechargeable pack: >5.2 AhVoltage rating: 7.2 VCharge time: 4 hoursBattery life: >8 hours300 charge/discharge cycles
Internal Impedance
RangemΩ: 3, 30, and 300Ω: 3, 30 and 300
ResolutionμΩ: 1, 10 and 100mΩ: 1, 10 and 100
Accuracy±1% of reading ±10 digits±0.8% of reading ±10 digits
Voltage DC/AC
RangeV DC:5, 50, 500 and 1000V AC:5, 50, 500 and 600
Resolution0.001, 0.01, 0.1 and 1 V
AccuracyDC: ±0.5% of reading ±5 digitsAC: ±0.75% of reading ±10 digits (40 to 100 Hz)
Current DC/AC
RangeA DC: 4, 40, 400, 1000A AC: 4, 40, 400, 1000
Resolution0.001, 0.01, 0.1 and 1 A
AccuracyA DC:±0.5% of reading ±1 digit + (CT Tolerance)±0.5% of reading ±5 digits + (CT Tolerance)A AC:±0.75% of reading ±1 digit + (CT Tolerance)±0.75% of reading ±10 digits + (CT Tolerance)
Others Specifications
TemperatureRange: 50 to 212°F (10 to 100°C)Resolution: 0.18°F (0.1°C)Accuracy: 1.8°F (±1°C) ±2 digits
Ripple VoltageRange: 0 to 5 VResolution: 0.001 VAccuracy: ±0.5% of reading ±10 digits (40 to 10 KHz)
Repeatability0.1%, 2 σ
Record Capacity Memory8 up to 16 GB flash storageImpedance record: Maximum 1000 recordsVA record: Maximum 512 records
Environmental ConditionsOperating: 32 to 122°F (0 to 50°C)Storage: -4 to 122°F (-20 to 50°C)Charging temperature: 50 to 104°F (10 to 40°C)Relative humidity: 10 to 85% NC, non-condensingAltitude Operational: 0 a 6562' (0 to 2000 m)
Ingress ProtectionIP54
Display (Transmitter and Receiver)6.30 x 3.54" (160 x 90 mm) touch screen
Safety/EMC/Vibration/ComplianceMeets the requirements of IEC61010-1, CE, UKCA CAT rating: 600 V CAT III, Pollution Degree 2 Shock and vibration:EN61010-1EN60529IEC61010-1:2010 (3rd Ed)EN61010-1:2010 (3rd Ed)IEN61326-1:2013EN55011/A1:2010 (Class A)EN61000-3-2:2014EN61000-3-3:2013
Dimensions9.45 x 6.30 x 2.56" (240 x 160 x 65 mm)
Weight1.98 lbs (0.9 kg)


What's included with the Megger BITE5-ADV
  • Battery Tester
  • Duplex Probes (with temperature probe)
  • Voltage Test Leads
  • Charger
  • Shoulder Strap
  • Zero Bar
  • 16 GB MicroSD Card
  • MicroSD Card USB Reader
  • USB Cable
  • Stylus
  • Carrying Case
  • Pouch Bag
  • One-Year Warranty (Conditional Two-Year Warranty)
