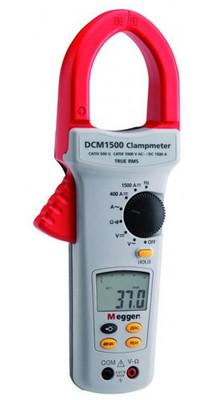

Megger DCM1500S Solar Clamp Meter, 2000 V DC, 1500 V AC

Availability: 1 to 2 Weeks

Megger DCM1500S Offers

Remotely monitor measurement values on a smart device with this solar clamp meter which features built-in Bluetooth to view a live trend graph and sample and log the values for later analysis. Additionally, this meter features a high-frequency rejection filter, inrush current measurement, internal data logging, a non-contact volt seek mode, and manual DC Amp zeroing.

Features

• 2000 V DC
• TRMS 1500 V AC
• 1500 A AC/DC
• Smart hold
• Auto ranging
• Minimum/Maximum hold
• Inrush current
• Megger Link app compatible
• CAT IV 600 V / CAT III 1000 V
• Data logger
• PV test leads with MC4PV plugs
• 60000 counts digital display
• Large white LED backlit display
• True RMS reading on ACA/ACV
• AC/DC μA Range
• Resistance, diode, capacitance and frequency measurement
• °C/°F temperature function
• DCA zero
• Torch light on trigger push
• Data Logging up to 1000 records
• Manual save mode
• Auto power off
• DC mV Range

Applications

• Solar/photovoltaic installations
• Electrical systems and equipment
• Battery monitoring
• Automotive
• Charging and load circuits
• Electric vehicle servicing
• Lift maintenance
• UPS commissioning, servicing and maintenance
• Electro-plating plants and welding equipment servicing
• Domestic power generation from solar panels and wind-turbines

The unit is designed to be used on electrical systems and equipment, including solar/photovoltaic installations where, there is a need to measure current, volts, resistance and frequency. It is therefore intended for use while installing, maintaining, fault-finding or monitoring those systems. The tactile barrier below the jaws of the instrument ensures a safe working distance for the operator's hand when measuring current on live uninsulated conductors, although additional personal protection must still be used. The Smart Hold allows increases in measurements to be monitored with an audible tone. The Maximum/Minimum and In-rush modes enable maximum load currents from equipment to be identified such as start-up currents to motors and heaters.

Megger DCM1500S Specifications

Specifications

DC mV	Range: 600 mVOL reading: 660 mVResolution: 0.1 mVAccuracy: ±(0.7% + 5D)
DC Voltage	Range: 600 mV; 1000 VOL reading: 660 mV; 1100 VResolution: 0.1 V; 1 VAccuracy: ±(0.7% + 2D)
AC Voltage	Range: 600 mV; 1000 VOL reading: 660 mV; 1100 VResolution: 0.1 V; 1 VAccuracy: ±(1% + 5D)
PV DC Voltage (using PVHV1 or PVHV2 lead set)	Range: 600 mV; 2000 VOL reading: 660 mV; 2200 VResolution: 0.1 V; 1 VAccuracy: (2% + 5D)
PV AC Voltage (using PVHV1 or PVHV2 lead set)	Range: 600 mV; 1500 VOL reading: 660 mV; 1600 VResolution: 0.1 V; 1 VAccuracy: (2% + 5D)
AC/DC μA	Range: 400 μA; 4000 μAOL reading: 440 μA; 4400 μAResolution: 0.1 μA; 1 μA Accuracy: ±(1% + 3D
AC/DC Current	Range: 60 A; 600 A; 1500 AOL reading: 66 A; 660 A; 1550 AResolution: 0.01 A; 0.1 A; 1 AAccuracy: ±(2% + 5D)
Frequency	Range: 100 Hz; 1000 Hz; 10 kHzOL reading: 100 Hz; 1000 Hz; 10 kHzResolution: 0.01 Hz; 0.1 Hz; 0.001 kHzAccuracy: ±(0.3% + 3D)
Resistance	Range: 600 Ω; 6 kΩ; 60 kΩ; 600 kΩOL reading: 660 Ω; 6.6 kΩ; 66 kΩ; 660 kΩResolution: 0.1 Ω; 0.001 kΩ; 0.01 kΩ; 0.1 kΩAccuracy: ±(0.9% + 5D); ±(0.9% + 2D)
Continuity	Built-in buzzer sounds when measured resistance is less than 20 Ω and the sound is off when measured resistance is more than 200 Ω, between 20 to 200 Ω the buzzer may be either on or off
Diode	Range: 1.5 VOL reading: 1.55 VResolution: 0.001 VAccuracy: ±(0.9% + 2D)
Capacitance	Range: 100 μF; 1000 μFOL reading: 110 μF; 1100 μFResolution: 0.1 μF; 1 μFAccuracy: ±(1.9% + 2D)
VoltSeek	Voltage range of high sensitivity: 80 to 1000 V (at the top edge of the jaw)Voltage range of low sensitivity: 160 to 1000 V (at the top edge of the jaw)
Temperature	Range: -40 to 752°F (-40 to 400°C)OL reading: 824°F (440°C)Resolution: 0.1°F (0.1°C)Accuracy: ±1% + 36D (±1% + 20D)The accuracy does not include the accuracy of the thermocouple probe. Accuracy specification assumes surrounding temperature stable to ±1°C. For surrounding temperature changes of ±2°C rated accuracy applies after 2 hours

What's included with the Megger DCM1500S

• Solar Clamp Meter
• Lead Set
• K-Type Thermocouple Probe
• 2 x Leads
• Carrying Case
• Three-Year Warranty
