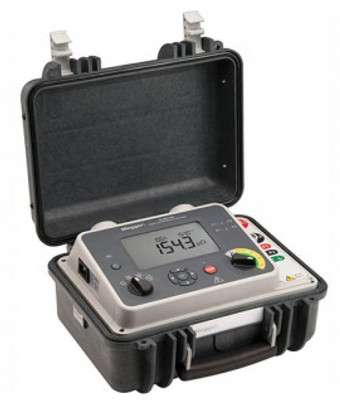

Megger DLRO100H Portable Micro-Ohmmeter, Remote with Bluetooth, Data Logging, AC Operated, 100A

No reviews yet Write a Review
$9,670.14
SKU:
DLRO100H
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Megger DLRO100H Portable Micro-Ohmmeter, Remote with Bluetooth, Data Logging, AC Operated, 100A

$9,670.14

Megger DLRO100H

Rugged design, intuitive interface and IP54 (lid open) rating ensure reliability and ease of use.

Features

  • CAT IV 600 VAC / 500 VDC up to 2000 m, CAT IV 300 V up to 4000 m
  • Line Powered only
  • High noise immunity
  • Smooth DC output
  • IP54 Lid open, IP65 Lid closed
  • 100A Manual, auto and continuous test
  • Custom test
  • Range and test mode rotary switches
  • Ultra tough outer case construction
  • Dual Ground with optional clamp
  • Large, clear LCD
  • Internal memory storage with USB download capability
  • Asset tagging
  • Bluetooth

Test Modes

The Manual test mode allows the user to initiate the test procedure once the probes are in contact with the object under test. Once the TEST button is depressed the TEST lamp will illuminate and the instrument will undertake a single test to verify the resistance of the test object.

In Auto mode the user selects the desired current, connects the current test leads and as soon as the potential leads are connected a test will start automatically. To repeat a test, simply break contact with the potential probes and remake contact.

In Continuous mode the user connects the test leads and presses the TEST button, initiating the test procedure. The instrument will continue to test, updating the display after each new test cycle, until the TEST button is pressed or the test procedure times out.

Test Leads

Standard test leads, with separate current and potential, or kelvin, combining both current and potential in one clamp are available as optional accessories in 5m, 10m, and 15m lengths. All test leads are CAT IV 600 VAC / 500 VDC safety rated.

Applications

Power Utilities

  • Power stations
  • Distribution
  • HV substations and switchyards
  • Wind turbines
  • Solar

Service Companies

  • Electrical power utilities
  • Commercial (3 phase)
  • Industrial
  • Wind turbines
  • Solar

OEMs

  • Power equipment
  • Automotive

Plants

  • Chemical
  • Refineries
  • Miscellaneous

Transportation

  • Airplane maintenance
  • Airport maintenance
  • Port
  • Ship

Megger DLRO100H Specifications

Measurement range 0.1 ?? - 1.999 ?
Resolution 0.1 ??
DC output Smooth DC
IP rating IP54 Lid open / IP65 Lid closed
Operating temperature -20°C up to 50°C
Storage temperature range e -30°C up to 70°C
Humidity <85% R.H. non-condensing
Battery life 200 single 100 A tests or up to 2x 10 minutes continuous 100 A output
Battery type User replaceable Li-ion battery pack
Battery charge time Full charge in 2.5 Hrs from flat
Maximum output voltage 2 V (battery), 3 V (AC)
EMC IEC61326-1
Safety IEC61010 CAT IV 600 VAC / 500 VDC up to 2000 m, CAT IV 300 V up to 4000 m
Dimensions 400 x 300 x 200 mm
Weight 7.0 kg (AC Only)

Megger DLRO100H Specifications

Measurement range 0.1 ?? - 1.999 ?
Resolution 0.1 ??
DC output Smooth DC
IP rating IP54 Lid open / IP65 Lid closed
Operating temperature -20°C up to 50°C
Storage temperature range e -30°C up to 70°C
Humidity <85% R.H. non-condensing
Battery life 200 single 100 A tests or up to 2x 10 minutes continuous 100 A output
Battery type User replaceable Li-ion battery pack
Battery charge time Full charge in 2.5 Hrs from flat
Maximum output voltage 2 V (battery), 3 V (AC)
EMC IEC61326-1
Safety IEC61010 CAT IV 600 VAC / 500 VDC up to 2000 m, CAT IV 300 V up to 4000 m
Dimensions 400 x 300 x 200 mm
Weight 7.0 kg (AC Only)

Megger DLRO100H Specifications

Measurement range 0.1 ?? - 1.999 ?
Resolution 0.1 ??
DC output Smooth DC
IP rating IP54 Lid open / IP65 Lid closed
Operating temperature -20°C up to 50°C
Storage temperature range e -30°C up to 70°C
Humidity <85% R.H. non-condensing
Battery life 200 single 100 A tests or up to 2x 10 minutes continuous 100 A output
Battery type User replaceable Li-ion battery pack
Battery charge time Full charge in 2.5 Hrs from flat
Maximum output voltage 2 V (battery), 3 V (AC)
EMC IEC61326-1
Safety IEC61010 CAT IV 600 VAC / 500 VDC up to 2000 m, CAT IV 300 V up to 4000 m
Dimensions 400 x 300 x 200 mm
Weight 7.0 kg (AC Only)
