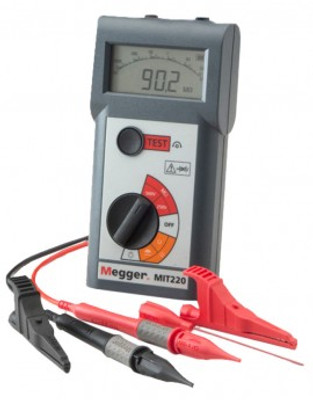

The MIT200 is one of the smallest insulation testers available on the market today. With options of one, two and three voltage test voltage instruments, the MIT200 instruments offer a range of safety and operation features.
The display a combination of digital readout and analog display, using Megger's patented DART display technology, which includes the benefits of an LCD display, such as robust, clear and accurate measurement, with an analog pointer response for evaluating circuit charge and discharge characteristics.
The instrument housing is in tough ABS, designed to withstand the rigours of hard use, and is small enough to drop into your pocket when not in use.
Battery requirements are 6 AA batteries of either standard alkaline or nickel metal hydride (NiMH) rechargeable type. A low battery warning indicator gives advanced warning of exhausted batteries.
Continuity Testing
Automatic continuity testing is performed at 200 mA to ensure compliance with international requirements. There is no need to press the test button.
All instruments will measure up to 100 ? on continuity, of which 0-10 ? is performed at greater than 200 mA to meet international electrical testing requirements.
Lead null is possible up to 9.99 ? of test lead resistance, ensuring the ability to null fused test leads as well as | standard leads.
Continuity buzzer
A continuity buzzer provides a means of rapid cable testing and circuit identification, with voltage protection should you accidentally touch a live circuit.
The buzzer operates at a 2 ? threshold.
Insulation Testing
The instruments offer four configurations as detailed on page 2, providing an ideal solution to most low voltage insulation testing applications.
Insulation testing is possible up to 1000 M? on all ranges. Auto discharge ensures all circuits are safely discharged after testing.
1000 V insulation test ranges have a high voltage warning prior to test voltage being applied.
Features
Applications
The MIT200 series will find applications in electrical contracting, both on domestic and industrial systems, as well as site maintenance and service departments.
The MIT200 series of insulation and continuity testers are ideal for testing transformers, motors, generators switchgear, panel building, domestic appliances, power tools etc., as well as fixed electrical wiring systems.
Their small size and light weight make them ideal for those engineers that need to carry them for extended periods.
All instruments meet the requirements of most International Standards including VDE0413 Part 1 and BS7671 (the 16th Edition of the IEE Wiring Regulations).
What's Included
Safety
Every Megger instrument is designed with safety as its primary objective. All instruments meet or exceed the requirements of safety directive IEC 61010 and EN61557 for insulation and continuity testing.
Default fault meter
A built-in voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25 V
Insulation Test inhibit
Circuits in excess of 25 V will generate a voltage warning. Circuits over 50 V will inhibit testing of the insulation, protecting the operator and the instrument from injury or damage.
600V CATIII
The MIT200 series has been designed for use on applications up to 600 V CATIII.
| Insulation Ranges | |
| Nominal Test Voltage | 500 V |
| Measuring Ranges | 10 K? to 1000 M? on all ranges |
| Terminal Voltage on open Circuit | -0% +25% of rated voltage |
| Short Circuit Current | 2mA, 1mA - 10mA |
| Test Current On Load | >1 mA at minimum pass values of insulation |
| Accuracy | ±3% of reading ±2 digits up to 10 M? ±5% of reading ±2 digits up to 100 M? ±30% of reading up to 1000 M? |
| Continuity Ranges | |
| Measuring Range | 0.01 to 100.0? (0 to 50? on analog scale) |
| Accuracy | ±0.01? to 9.99?, ±3% ±2 digits 10.0? to 99.9? ±5%, ±2 digits |
| Open Circuit Voltage | 5V ±1V |
| Test Current | 205 mA, ±5 mA @ (0 - 10 ohms) > 20mA up to 100 ohms |
| Zero Offset Adjust | 0 to 9.99 ohms |
| General | |
| Power Supply | 6 x 1.5 V Alkaline cells IEC LR6 type |
| Battery Life | Typically up to 3500, 5 second tests |
| Operating Temperature | -10 to 55°C |
| Operating Humidity | 93% Relative Humidity at 40°C max |
| Storage Temperature | -25 to 65°C |
| Dimensions | 195mm (L) x 98mm (D) x 40mm (H) |
| Weight | 550g |
| Insulation Ranges | |
| Nominal Test Voltage | 500 V |
| Measuring Ranges | 10 K? to 1000 M? on all ranges |
| Terminal Voltage on open Circuit | -0% +25% of rated voltage |
| Short Circuit Current | 2mA, 1mA - 10mA |
| Test Current On Load | >1 mA at minimum pass values of insulation |
| Accuracy | ±3% of reading ±2 digits up to 10 M? ±5% of reading ±2 digits up to 100 M? ±30% of reading up to 1000 M? |
| Continuity Ranges | |
| Measuring Range | 0.01 to 100.0? (0 to 50? on analog scale) |
| Accuracy | ±0.01? to 9.99?, ±3% ±2 digits 10.0? to 99.9? ±5%, ±2 digits |
| Open Circuit Voltage | 5V ±1V |
| Test Current | 205 mA, ±5 mA @ (0 - 10 ohms) > 20mA up to 100 ohms |
| Zero Offset Adjust | 0 to 9.99 ohms |
| General | |
| Power Supply | 6 x 1.5 V Alkaline cells IEC LR6 type |
| Battery Life | Typically up to 3500, 5 second tests |
| Operating Temperature | -10 to 55°C |
| Operating Humidity | 93% Relative Humidity at 40°C max |
| Storage Temperature | -25 to 65°C |
| Dimensions | 195mm (L) x 98mm (D) x 40mm (H) |
| Weight | 550g |
| Insulation Ranges | |
| Nominal Test Voltage | 500 V |
| Measuring Ranges | 10 K? to 1000 M? on all ranges |
| Terminal Voltage on open Circuit | -0% +25% of rated voltage |
| Short Circuit Current | 2mA, 1mA - 10mA |
| Test Current On Load | >1 mA at minimum pass values of insulation |
| Accuracy | ±3% of reading ±2 digits up to 10 M? ±5% of reading ±2 digits up to 100 M? ±30% of reading up to 1000 M? |
| Continuity Ranges | |
| Measuring Range | 0.01 to 100.0? (0 to 50? on analog scale) |
| Accuracy | ±0.01? to 9.99?, ±3% ±2 digits 10.0? to 99.9? ±5%, ±2 digits |
| Open Circuit Voltage | 5V ±1V |
| Test Current | 205 mA, ±5 mA @ (0 - 10 ohms) > 20mA up to 100 ohms |
| Zero Offset Adjust | 0 to 9.99 ohms |
| General | |
| Power Supply | 6 x 1.5 V Alkaline cells IEC LR6 type |
| Battery Life | Typically up to 3500, 5 second tests |
| Operating Temperature | -10 to 55°C |
| Operating Humidity | 93% Relative Humidity at 40°C max |
| Storage Temperature | -25 to 65°C |
| Dimensions | 195mm (L) x 98mm (D) x 40mm (H) |
| Weight | 550g |
