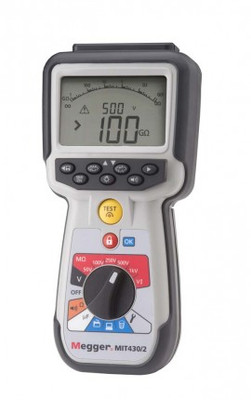

Megger MIT430/2 CAT IV Insulation Tester kit - Includes R8500 High Definition Video Borescope for FREE

No reviews yet Write a Review
$1,494.29
SKU:
MIT430/2-KIT
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Megger MIT430/2 CAT IV Insulation Tester kit - Includes R8500 High Definition Video Borescope for FREE

$1,494.29

Megger MIT430/2 Kits

Continuity testing is now significantly faster, and a single auto-ranging 0.01 ? to 1.0 M? function replaces the "ohms" and "kOhms" ranges. Retained are the 200 mA and 20 mA test options. The instrument is over-moulded for increased protection and has an IP54 weatherproof rating.

Features

  • Designed for Electrical and Industrial testing
  • Insulation testing up to 1000 V and 200 G? range
  • Stabilized insulation test voltage
  • Single range, faster continuity testing from 0.01 ? to 1 M?
  • Adjustable insulation test voltage from 10 V to 1000 V
  • 600 V Trms AC and DC voltage measurement
  • Test result storage and Bluetooth® downloading
  • Live circuit detection and protection
  • Rechargeable options for mains and car charging
  • CAT IV 600 V and IP54

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5" color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off

Applications

  • Electrical installations
  • Cable testing
  • Motor testing
  • Automotive
  • ESD
  • Panel building
  • Avionics
  • Maintenance

Megger MIT430/2 Specifications

Test voltage 50 V, 100 V, 250 V, 500 V, 1000 V
Display range Analogue: 1 G? full scale
Resolution 0.1 k?
Short circuit/charge current 2 mA +0% -50% to EN 61557-2 (2007)
Open circuit voltage insulation -0% +2% ± 2V
Test current 1 mA at min. pass value of insulation to a maximum of 2 mA max.
Leakage 10% ±3 digits
Voltage 3% ±3 digits ±0.5% of rated voltage
Timer control 60 second countdown timer
Continuity measurement 0.01 ? to 999 k? (0 to 1000 k? on analogue scale)
Open circuit voltage 5 V ± 1 V
Test current 200 mA (–0 mA +20 mA), (0.01 ? to 4 ?)
Polarity Single polarity (Default) / Dual polarity (configurable on setup).
Lead resistance Null up to 9.00 ?
Voltage range AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz) DC: 0 to 600 V
Frequency measurement range 15 Hz - 400 Hz
Frequency measurement accuracy ±0.5% ± 1digit (100 Hz to 400 Hz unspecified)
Storage capacity >1000 test results
Data download Bluetooth® wireless, Bluetooth® Class II
Power supply 6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used
Battery life 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 M?

Megger MIT430/2 Specifications

Test voltage 50 V, 100 V, 250 V, 500 V, 1000 V
Display range Analogue: 1 G? full scale
Resolution 0.1 k?
Short circuit/charge current 2 mA +0% -50% to EN 61557-2 (2007)
Open circuit voltage insulation -0% +2% ± 2V
Test current 1 mA at min. pass value of insulation to a maximum of 2 mA max.
Leakage 10% ±3 digits
Voltage 3% ±3 digits ±0.5% of rated voltage
Timer control 60 second countdown timer
Continuity measurement 0.01 ? to 999 k? (0 to 1000 k? on analogue scale)
Open circuit voltage 5 V ± 1 V
Test current 200 mA (–0 mA +20 mA), (0.01 ? to 4 ?)
Polarity Single polarity (Default) / Dual polarity (configurable on setup).
Lead resistance Null up to 9.00 ?
Voltage range AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz) DC: 0 to 600 V
Frequency measurement range 15 Hz - 400 Hz
Frequency measurement accuracy ±0.5% ± 1digit (100 Hz to 400 Hz unspecified)
Storage capacity >1000 test results
Data download Bluetooth® wireless, Bluetooth® Class II
Power supply 6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used
Battery life 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 M?

Megger MIT430/2 Specifications

Test voltage 50 V, 100 V, 250 V, 500 V, 1000 V
Display range Analogue: 1 G? full scale
Resolution 0.1 k?
Short circuit/charge current 2 mA +0% -50% to EN 61557-2 (2007)
Open circuit voltage insulation -0% +2% ± 2V
Test current 1 mA at min. pass value of insulation to a maximum of 2 mA max.
Leakage 10% ±3 digits
Voltage 3% ±3 digits ±0.5% of rated voltage
Timer control 60 second countdown timer
Continuity measurement 0.01 ? to 999 k? (0 to 1000 k? on analogue scale)
Open circuit voltage 5 V ± 1 V
Test current 200 mA (–0 mA +20 mA), (0.01 ? to 4 ?)
Polarity Single polarity (Default) / Dual polarity (configurable on setup).
Lead resistance Null up to 9.00 ?
Voltage range AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz) DC: 0 to 600 V
Frequency measurement range 15 Hz - 400 Hz
Frequency measurement accuracy ±0.5% ± 1digit (100 Hz to 400 Hz unspecified)
Storage capacity >1000 test results
Data download Bluetooth® wireless, Bluetooth® Class II
Power supply 6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used
Battery life 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 M?
