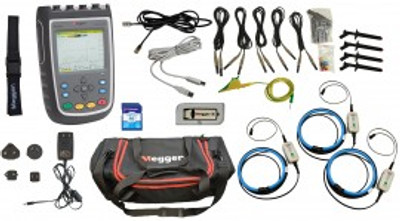

The advanced PQ recording and analysis the MPQ-1000 coupled with its simplicity makes the analyzer the ideal unit to perform power quality studies, energy audits, load studies, troubleshoot industrial and commercial issues, lighting issues, motor start up, solar panel effects, reactive energy analysis and more. The analyzers scope mode and DMM mode allows the user to perform troubleshooting on the spot as well as performing extended recordings.
The auto CT identification eliminates potential errors due to wrong CT range settings. Simple connection with a push of a button and the analyzer will automatically identify the CT and verify it is connected correctly. This means you can be confident you will have the correct data.
The unit will fit into most locations and supports either Wi-Fi or cellular with the use of an off the shelf bridge. A bridge is the opposite of a router. It receives a wireless signal and transmits the signal over a wire. The bridge connects to the Ethernet port on the instrument. The bridge can be bought off the shelf at different stores. The advantage is it can be moved from unit to unit as needed, since it is not internal to the unit. A class A instrument performs its measurements per the requirements of IEC61000-4-30 and IEEE-1159. This provides a measurement accuracy of 0.1% over the given range. Units that comply to this standard ensure their measurements will agree with one another. Instruments that are not class A can have different measurement values. Most revenue meters are now measure class A RMS value. Therefore to get matching data a class A instrument is required. The unit will trend harmonics through the 50th order. The Megger PQ software will analyze the captured waveforms through the 128th order.
Features
Measured Parameters
A telecommunications company can save money, improve quality and reliability to periodically monitor their incoming power quality and their energy usage. By owning a simple and easy-to-use Power Quality device, telecom companies can perform their own periodic assessments without the cost of employing outside service companies to perform these tests. The Megger family of Power Quality products the ability, with their one-touch recording, auto-data analysis and unrivaled software.
Applications
Benefits
Megger PQ Firmware for MPQ Series PQ Analyzers
This firmware adds the following functionality to both the MPQ1000 and MPQ2000.
| Environmental | |
| Operating Temperature | -20 to 50°C |
| Storage Temperature | -30 to 60°C |
| Humidity | 95% |
| General Specifications | |
| Input Power | 120/240 V, 50/60 Hz |
| Battery | NiMH battery pack, Discharge time up to 8 hours, Recharge time 2 hours |
| Data Storage | External SD card (32GB max) |
| Communication | USB communications, Ethernet communications, USB stick for data and configuration file transfer, SD card for direct data transfer |
| Case | IP54 enclosure |
| Power Factor | Accuracy: ±0.02 + CT error |
| Dimensions | 175 x 250 x 60 mm (6.89 x 9.85 x 2.36") |
| Weight | Standard unit: 1.82 kg (4 lbs) |
| Voltage Channels | 4 |
| Voltage Range | 0 to 1000 V AC 0 to 1000 V DC |
| Voltage Accuracy | 0.1% of Reading |
| Resolution | 16 bit |
| Crest Factor | 1.5 |
| Current Channels | 4 |
| Current Range | 0 to 6000 A (CT Dependent) |
| Current Accuracy | 0.1% of Reading + CT |
| Resolution | 16 bit |
| Crest Factor | 4.0 |
| Sampling Rate | 256 samples per cycle RMS. 1 MHz transient sampling rate |
| Real Time Clock | Accuracy ±20 ppm |
| Class | A |
| Transients | 1?sec (±2697 V) |
| Timed Waveform Capture | Allows for the taking of PQ events and periodic waveforms at the same time. |
| Wireless | With Bridge |
| International Standards and Recommendations | IEC61000-4-30, EN50160, IEEE1159, IEEE519 |
| Self-Identifying CT | Yes |
| Config. Verification | Yes |
| On Board Data Analysis | Yes |
| Scope Mode | Yes |
| DMM Mode | Yes |
| RMS & Demand | Yes |
| Dips (Sags) / Swells (V&I) | Yes |
| Harmonics | Yes |
| Inter-Harmonics | Yes |
| Rapid Voltage Change | Yes |
| Mains Signaling | Yes |
| Phase Shift Detection | Yes |
| IEC and ANSI Unbalance | Yes |
| THD/TDD | Yes |
| Motor Start Up | Yes |
| Environmental | |
| Operating Temperature | -20 to 50°C |
| Storage Temperature | -30 to 60°C |
| Humidity | 95% |
| General Specifications | |
| Input Power | 120/240 V, 50/60 Hz |
| Battery | NiMH battery pack, Discharge time up to 8 hours, Recharge time 2 hours |
| Data Storage | External SD card (32GB max) |
| Communication | USB communications, Ethernet communications, USB stick for data and configuration file transfer, SD card for direct data transfer |
| Case | IP54 enclosure |
| Power Factor | Accuracy: ±0.02 + CT error |
| Dimensions | 175 x 250 x 60 mm (6.89 x 9.85 x 2.36") |
| Weight | Standard unit: 1.82 kg (4 lbs) |
| Voltage Channels | 4 |
| Voltage Range | 0 to 1000 V AC 0 to 1000 V DC |
| Voltage Accuracy | 0.1% of Reading |
| Resolution | 16 bit |
| Crest Factor | 1.5 |
| Current Channels | 4 |
| Current Range | 0 to 6000 A (CT Dependent) |
| Current Accuracy | 0.1% of Reading + CT |
| Resolution | 16 bit |
| Crest Factor | 4.0 |
| Sampling Rate | 256 samples per cycle RMS. 1 MHz transient sampling rate |
| Real Time Clock | Accuracy ±20 ppm |
| Class | A |
| Transients | 1?sec (±2697 V) |
| Timed Waveform Capture | Allows for the taking of PQ events and periodic waveforms at the same time. |
| Wireless | With Bridge |
| International Standards and Recommendations | IEC61000-4-30, EN50160, IEEE1159, IEEE519 |
| Self-Identifying CT | Yes |
| Config. Verification | Yes |
| On Board Data Analysis | Yes |
| Scope Mode | Yes |
| DMM Mode | Yes |
| RMS & Demand | Yes |
| Dips (Sags) / Swells (V&I) | Yes |
| Harmonics | Yes |
| Inter-Harmonics | Yes |
| Rapid Voltage Change | Yes |
| Mains Signaling | Yes |
| Phase Shift Detection | Yes |
| IEC and ANSI Unbalance | Yes |
| THD/TDD | Yes |
| Motor Start Up | Yes |
| Environmental | |
| Operating Temperature | -20 to 50°C |
| Storage Temperature | -30 to 60°C |
| Humidity | 95% |
| General Specifications | |
| Input Power | 120/240 V, 50/60 Hz |
| Battery | NiMH battery pack, Discharge time up to 8 hours, Recharge time 2 hours |
| Data Storage | External SD card (32GB max) |
| Communication | USB communications, Ethernet communications, USB stick for data and configuration file transfer, SD card for direct data transfer |
| Case | IP54 enclosure |
| Power Factor | Accuracy: ±0.02 + CT error |
| Dimensions | 175 x 250 x 60 mm (6.89 x 9.85 x 2.36") |
| Weight | Standard unit: 1.82 kg (4 lbs) |
| Voltage Channels | 4 |
| Voltage Range | 0 to 1000 V AC 0 to 1000 V DC |
| Voltage Accuracy | 0.1% of Reading |
| Resolution | 16 bit |
| Crest Factor | 1.5 |
| Current Channels | 4 |
| Current Range | 0 to 6000 A (CT Dependent) |
| Current Accuracy | 0.1% of Reading + CT |
| Resolution | 16 bit |
| Crest Factor | 4.0 |
| Sampling Rate | 256 samples per cycle RMS. 1 MHz transient sampling rate |
| Real Time Clock | Accuracy ±20 ppm |
| Class | A |
| Transients | 1?sec (±2697 V) |
| Timed Waveform Capture | Allows for the taking of PQ events and periodic waveforms at the same time. |
| Wireless | With Bridge |
| International Standards and Recommendations | IEC61000-4-30, EN50160, IEEE1159, IEEE519 |
| Self-Identifying CT | Yes |
| Config. Verification | Yes |
| On Board Data Analysis | Yes |
| Scope Mode | Yes |
| DMM Mode | Yes |
| RMS & Demand | Yes |
| Dips (Sags) / Swells (V&I) | Yes |
| Harmonics | Yes |
| Inter-Harmonics | Yes |
| Rapid Voltage Change | Yes |
| Mains Signaling | Yes |
| Phase Shift Detection | Yes |
| IEC and ANSI Unbalance | Yes |
| THD/TDD | Yes |
| Motor Start Up | Yes |
